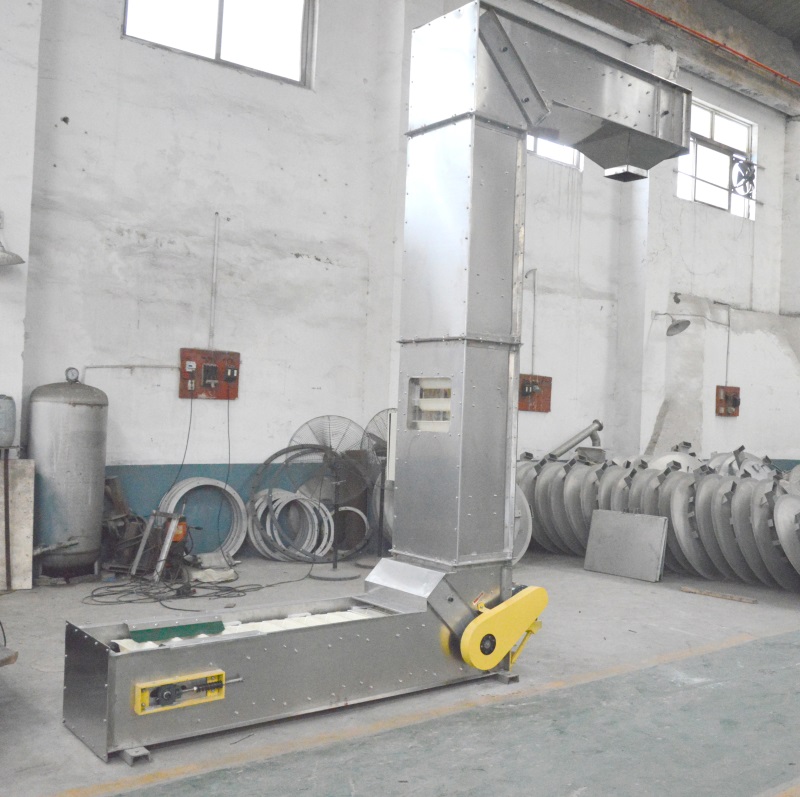

Description
The Z-type bucket elevator is an integrated continuous conveyor for granular, powdered, and small lumpy materials. Its Z-shaped structure combines vertical lifting and horizontal conveying, enabling “low-in and high-out” or “multiple-in & single-out” transportation without intermediate transfer. Ideal for space-constrained scenarios requiring low material breakage.
Advantages
1.Flexible and adaptable. Handles vertical or horizontal conveying; customizable for diverse industries and materials .
2.Clean and low-cost.Dust-free closed structure; low energy use, minimal maintenance.
3.Space-saving and high-capacity.Compact design fits small areas; supports 45M-height/50M-range, large-volume conveying.
4.Safe and stable.Safety-protected; runs steadily for uninterrupted production.
5.Cost-efficient and productive.Cuts equipment/materiel costs; boosts overall efficiency.
Features
The conveying speed is adjustable, enabling uniform feeding.
Extremely low crushing rate during the conveying process.
Full-closed structure, no pollution.
The lifting height can be customized according to per order.

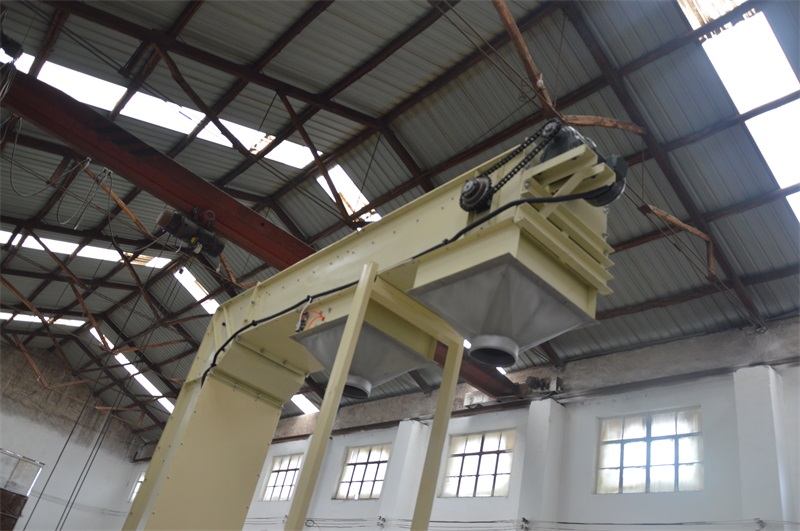

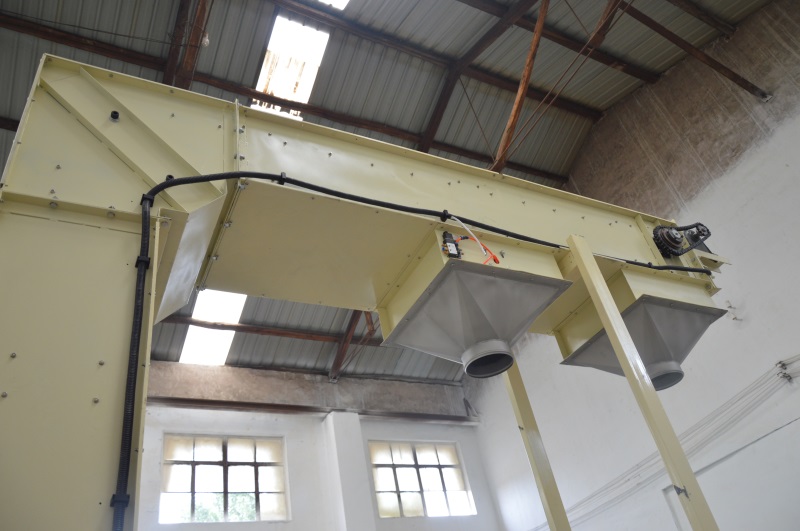

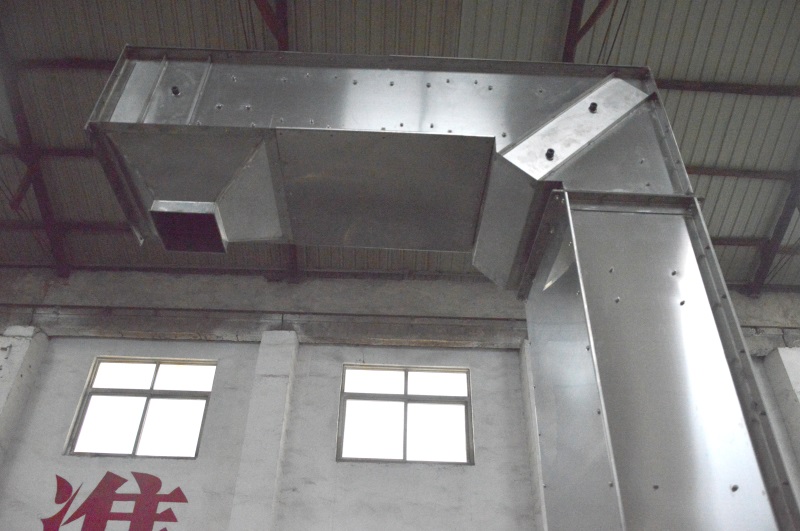

Single discharge outlet, but also for multi-discharge outlet(s).
Material of structure: Stainless steel 304 or carbon steel.
The buckets are made of a food grade reinforced polypropylene, which can tolerate the high and low temperature.

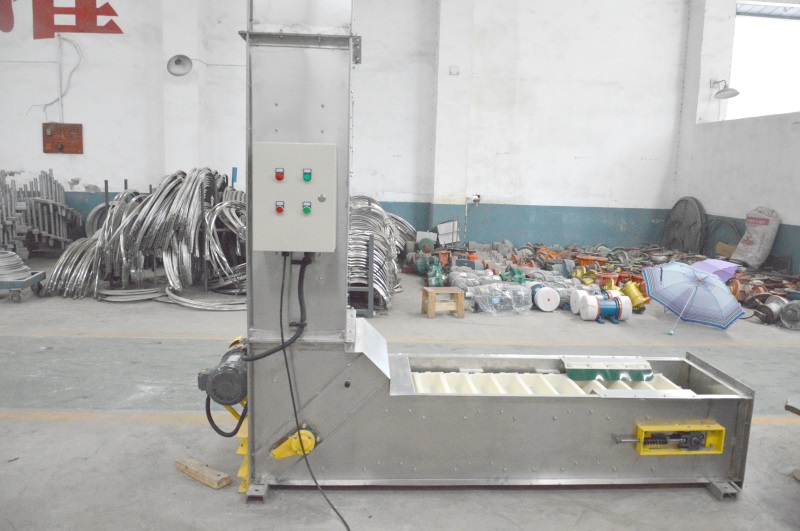

Equipped with a vibrating feeder specially designed for Z type bucket elevator.
Smooth operation and easy to operate. Easy to install and maintain.
Working Principle
The buckets of this elevator are side-mounted between two drive chains, allowing the buckets to remain horizontal while the equipment conveys materials vertically, horizontally, or at any angle. When the chain is lifted to the top, it bypasses the upper sprocket and then turns downward, and the discharge device at the outlet completes single-point or multi-point discharging.
Structure

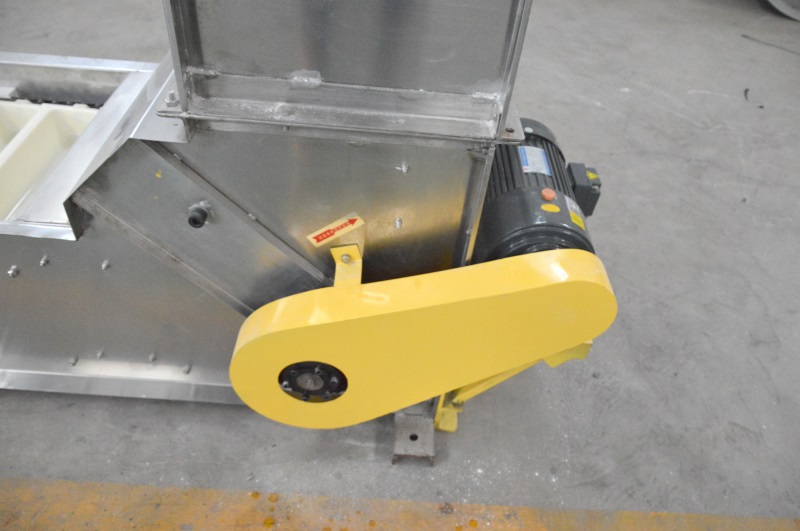

Z type bucket elevator is mainly composed of casing, conveyor chain, hopper, driving wheel, diverting wheel, tensioning device, guiding device, feeding port, discharging port, etc. Z type bucket elevator can choose different materials and configurations according to the lifting materials and user requirements.
Main Parameters
| Model | VTOPS-F-Z |
| Bucket Volume | 1.5 L Customizable |
| Bucket Material | Food Grade PP |
| Number of Outlet(s) | Single or Muti-discharge port |
| Body Material | Stainless Steel |
| Lifting Height | As Per Order |
| Conveying Capacity | 2-5 m3/h |
| Voltage | AC Single-Phase 220V |
| Power | 0.75-30kW (customizable) |
| Manufacturer | Henan Yingda Heavy Industry Technology Co., Ltd. |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
