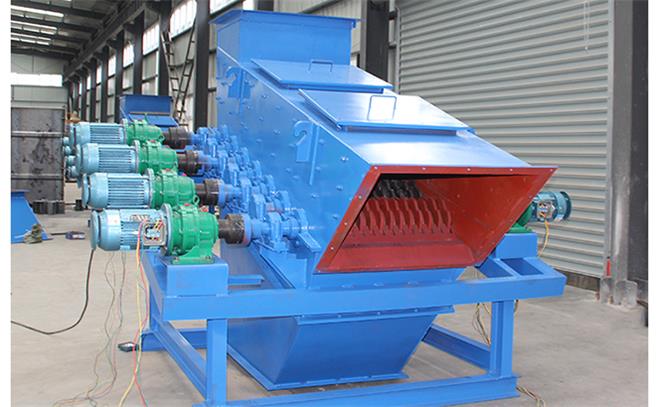

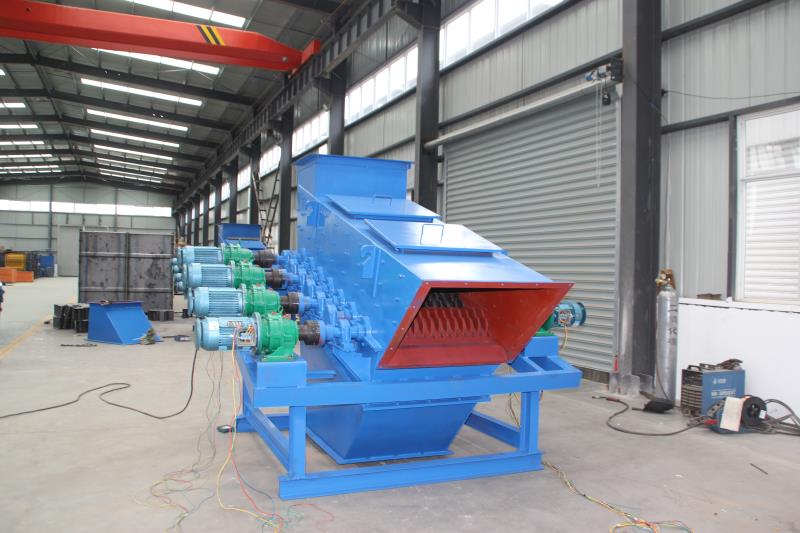

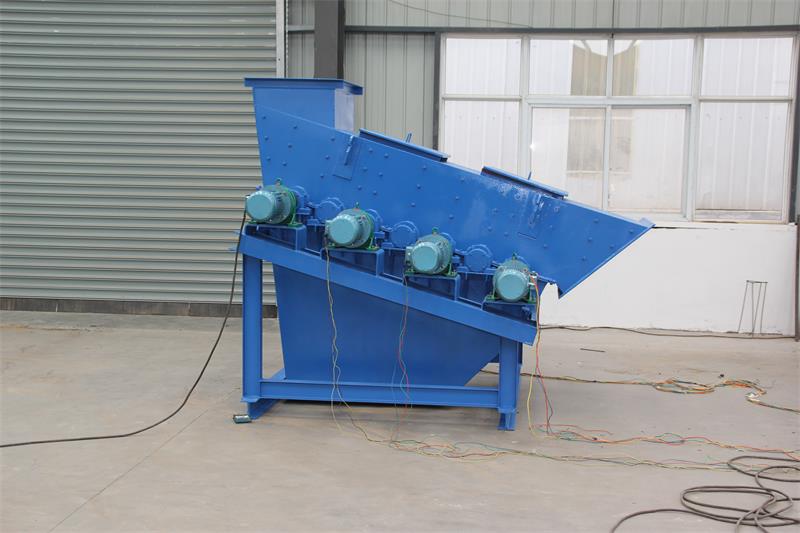

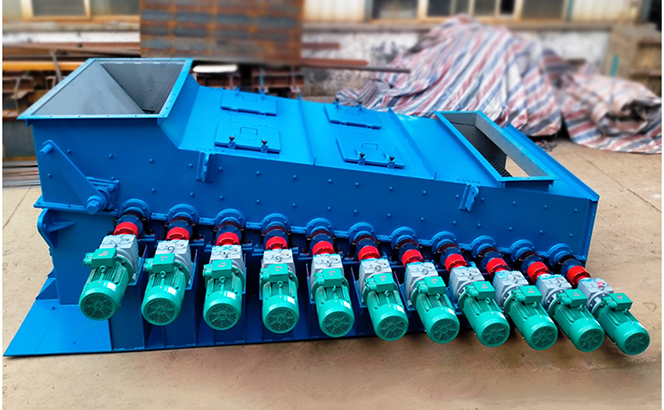

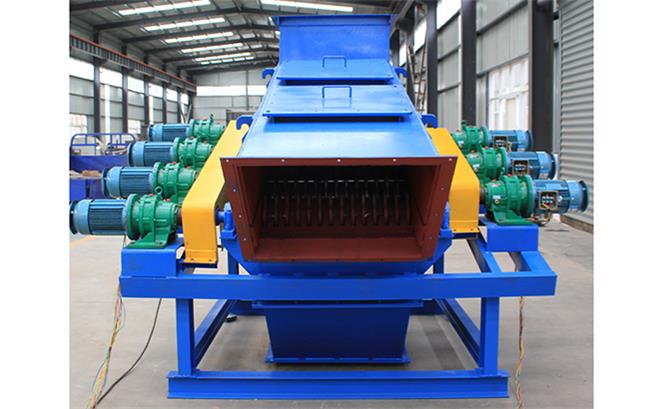

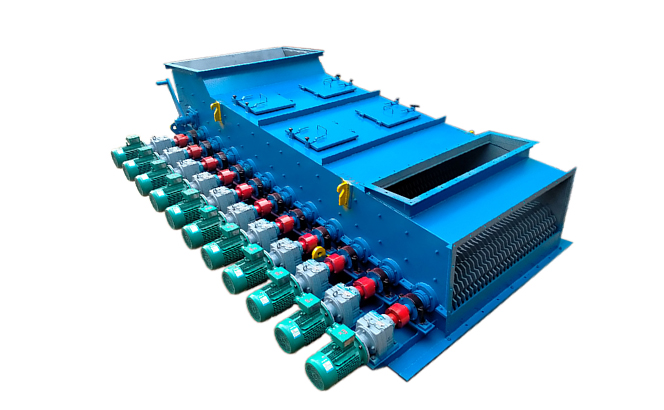

Description
Wobbler Feeder is an especial equipment for the material with wet, sticky, and fines need to be removed or are stuck to larger lumps. They also work well for removing out materials with high percentages of clay. The Wobbler Feeders can be used in mine and building material etc.
Advantages

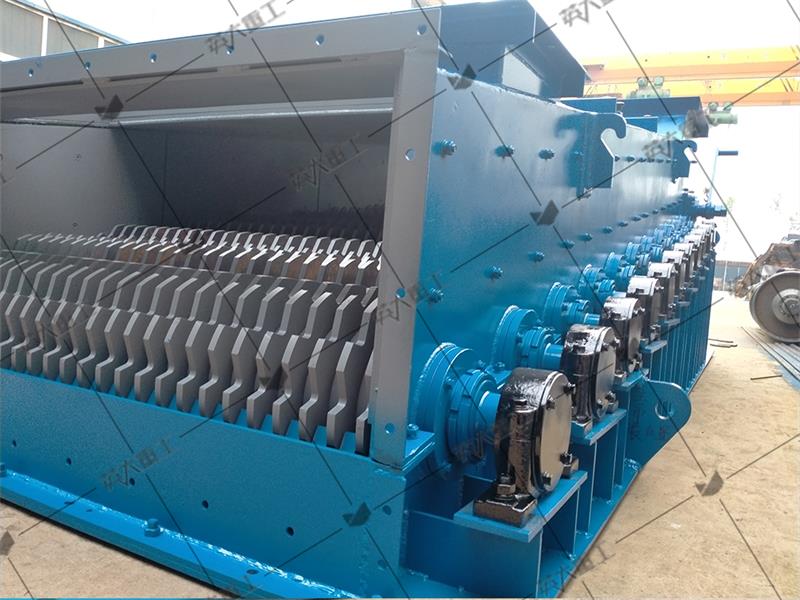

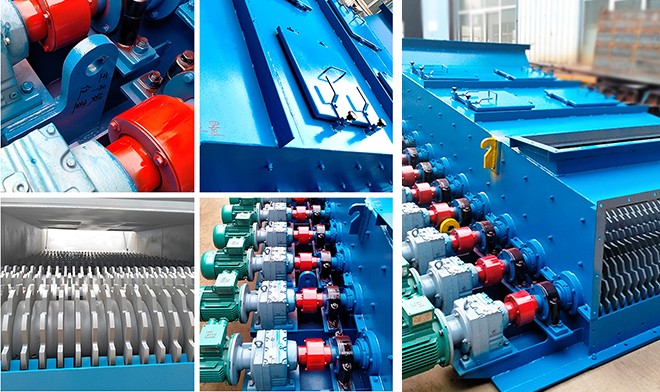

The durable wobbler construction is designed to work at top efficiency under heaped loads. The secret behind the wobbler feeder’s ability to handle wet, sticky or dry oversize material is in the original “Wobbler Feeder Principle”. The positive action of the rotating elliptical bars causes material to tumble forward assuring separation of fines and a uniform feed rate. YingDa offers a wide choice of capacities to meet your specific duty needs.
The unique action of the wobbler feeder can actually boost material production from 50% to 100%. This is accomplished, in one operation, by scalping out fines and feeding only oversize to your crusher or impactor.
Maintenance is also reduced because abrasive, choking fines are bypassed.
Wobblers are self-cleaning and resist clogging in wet, sticky materials.
Wobbler feeders operate with low horsepower and headroom requirements, and without vibration, noise or transmitted stresses, making them ideal for both stationary and portable applications.
Working Principle
Due to the arrangement of the screen shaft at different working angles, the material runs at a faster speed in the area with a larger working Angle, while it runs more slowly in the area with a smaller working Angle. When materials moving at different speeds converge at a certain position on the screen surface, it triggers axial movement, promoting uniform distribution of the materials on the screen surface and effectively enhancing the screening efficiency.
Main Parameters
| Model | Max Feed Size(mm) | Discharge Size(90%)(mm) | Width(mm) | Length(mm) | Capacity(t/h) |
| YWB1238 | ≤600 | ≤50-75 | 1236 | 3650 | 120-200 |
| YWB1252 | ≤600 | ≤50-75 | 1236 | 5160 | 120-200 |
| YWB1538 | ≤800 | ≤50-75 | 1526 | 3650 | 200-350 |
| YWB1552 | ≤800 | ≤50-75 | 1526 | 5160 | 200-350 |
| YWB1852 | ≤1000 | ≤50-75 | 1826 | 5160 | 400-800 |
| YWB2424 | ≤1500 | ≤90 | 2400 | 2400 | 1200 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

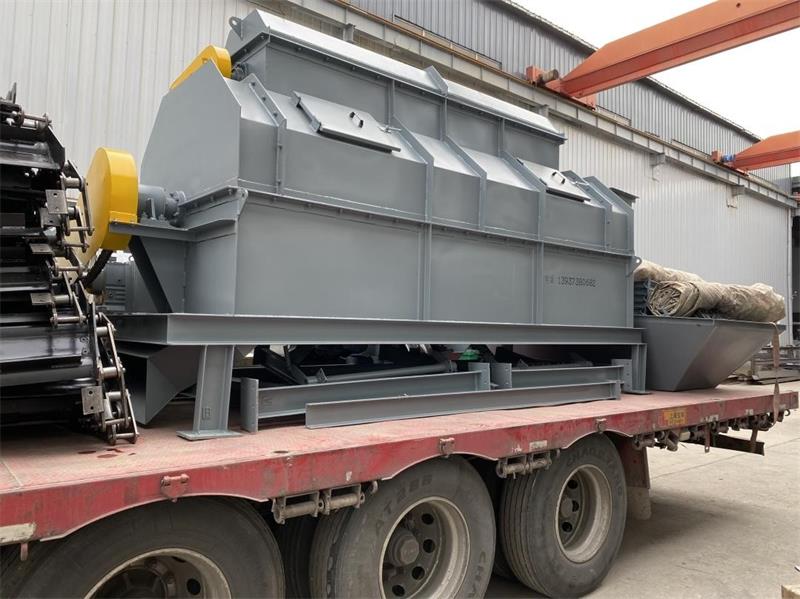

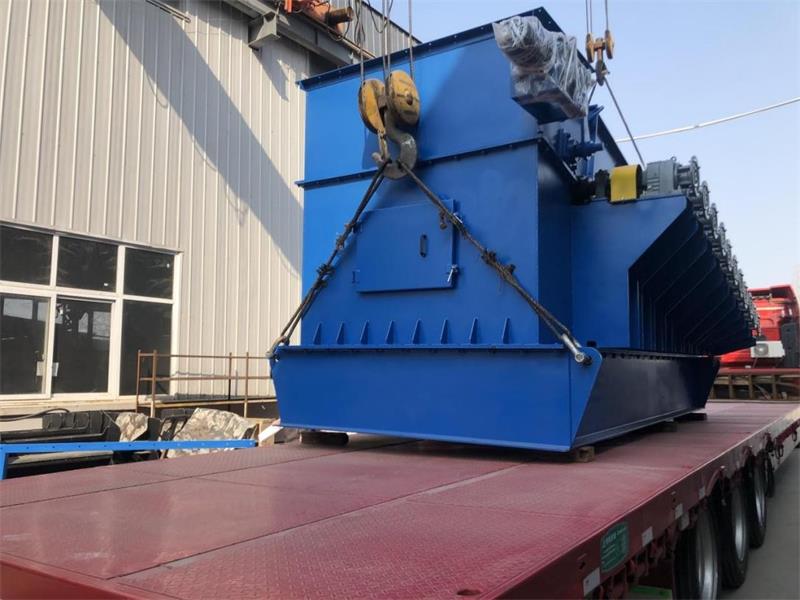

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
