Description
Trommel screen named rotary screen is widely used for mining sieving and construction waste. It provides a simple, efficient and economical solution to upgrade a wide range of material. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Advantages
Mixing equably and running steadily.
Little shock vibration.

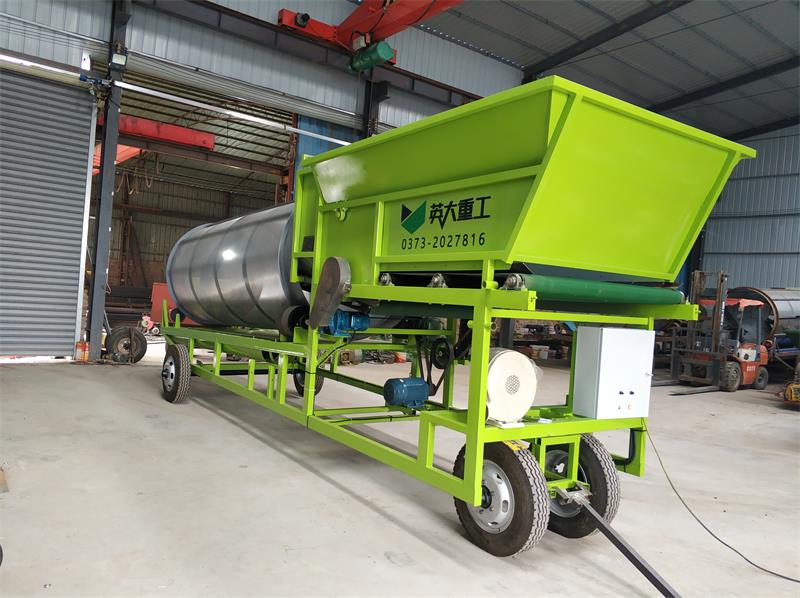

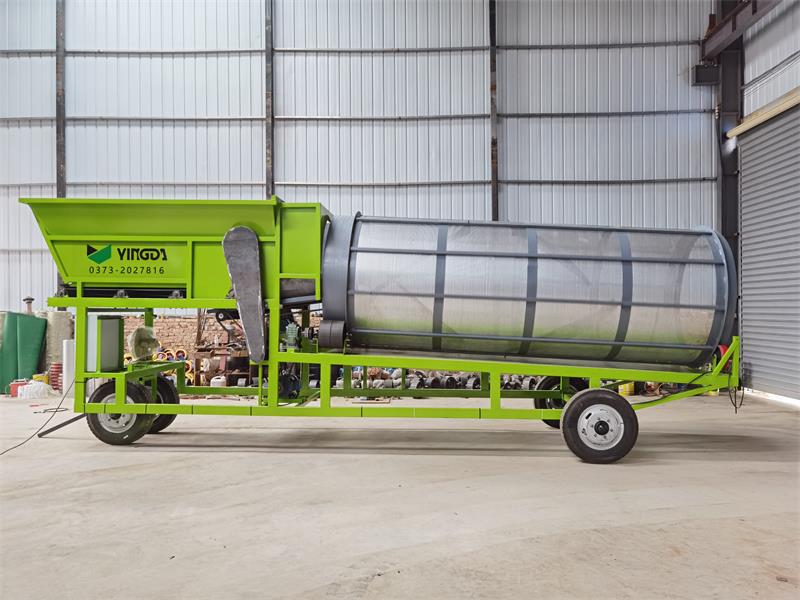

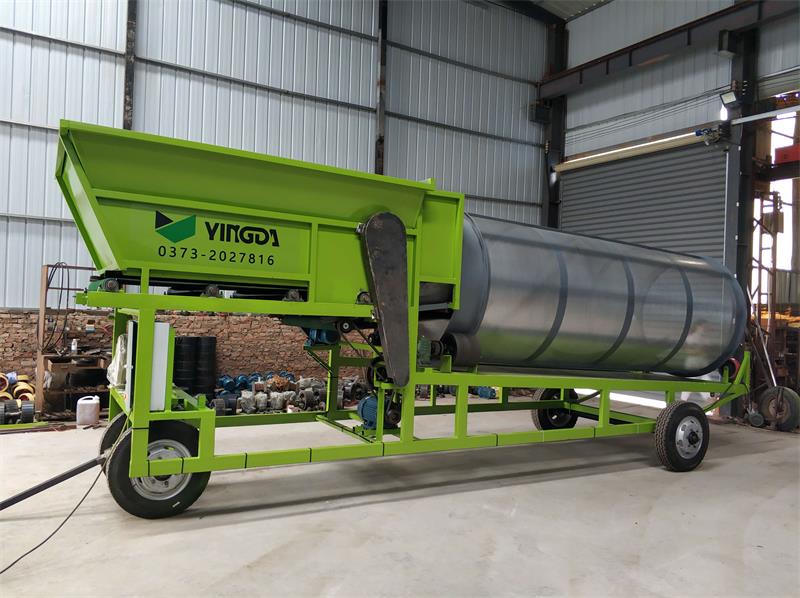

Conveniently moved or fixed on ground only.
Easy sealed and avoid pollution.
Widely used in classifying refractory materials, coal, sand stone etc.
Long service life.
The sieve holes are not prone to clogging.
It operates smoothly with low noise.
Simple structure and convenient maintenance.
The screening cylinder can be sealed, making it easy to collect dust in a closed manner.
The whole machine has high reliability and requires a relatively small one-time investment.

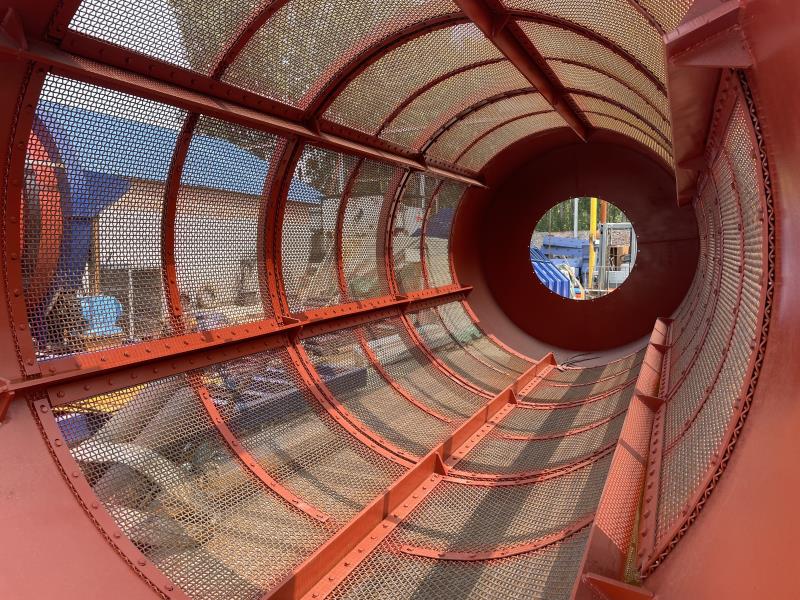

It adopts specially made screen mesh, featuring high screening efficiency and long service life.
Working Principle

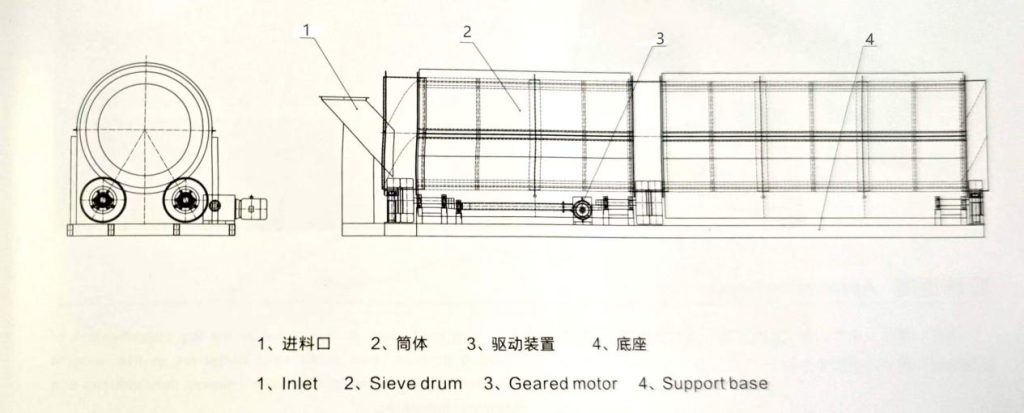

The screen mesh of drum is inclined and installed on the frame. The motor is connected to the drum assembly through a reducer and a coupling, driving the drum assembly to rotate around its axis. When the materials enter the drum device, due to the inclination and rotation of the drum device, the materials on the screen surface are flipped and rolled. The qualified materials (the size under the screen hole) are discharged from the discharge port at the bottom of the drum, while the unqualified materials (the size over screen hole) are discharged from the discharge port at the tail of the drum. Due to the flipping and rolling of the materials inside the drum, the materials stuck in the screen holes can be ejected, preventing the screen holes from being blocked.
Main Parameters
| Model | Drum size (m) | Slant angle | Drum speed(r/min) | Mesh range(mm) | Maximum feeding size(mm) | Capacity(m³/h) | Power(kw) | |
| Mesh(2mm) | Mesh(30mm) | |||||||
| YTS1030 | Φ1×3 | 5-7° | 22.5 | 2-30 | 60 | 10 | 60 | 4 |
| YTS1040 | Φ1×4 | 5-7° | 25 | 2-30 | 60 | 11 | 80 | 4 |
| YTS1230 | Φ1.2×3 | 5-7° | 20 | 2-30 | 70 | 12 | 100 | 5.5 |
| YTS1240 | Φ1.2×4 | 5-7° | 20 | 2-30 | 70 | 14 | 120 | 5.5 |
| YTS1250 | Φ1.2×5 | 5-7° | 20 | 2-30 | 70 | 15 | 140 | 5.5 |
| YTS1530 | Φ1.5×3 | 5-7° | 17 | 2-30 | 80 | 18 | 150 | 5.5 |
| YTS1540 | Φ1.5×4 | 5-7° | 17 | 2-30 | 80 | 18 | 150 | 7.5 |
| YTS1550 | Φ1.5×5 | 5-7° | 17 | 2-30 | 80 | 20 | 180 | 11 |
| YTS1560 | Φ1.5×6 | 5-7° | 17 | 2-30 | 80 | 22 | 200 | 11 |
| YTS2040 | Φ2×4 | 5-7° | 12 | 5-60 | 90 | 25 | 250 | 15 |
| YTS2050 | Φ2×5 | 5-7° | 12 | 5-60 | 90 | 30 | 300 | 15 |
| YTS2060 | Φ2×6 | 5-7° | 12 | 5-60 | 90 | 35 | 350 | 18.5 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

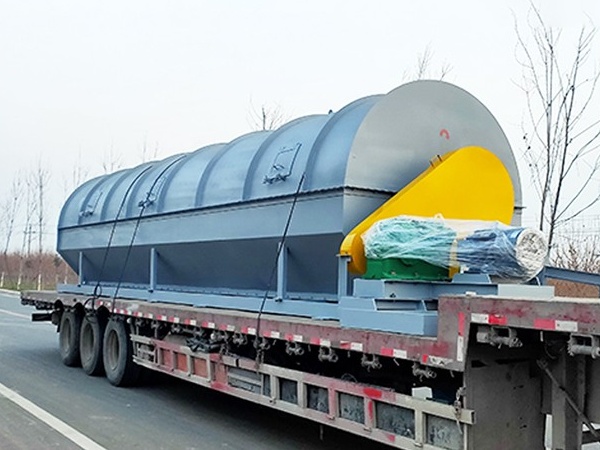

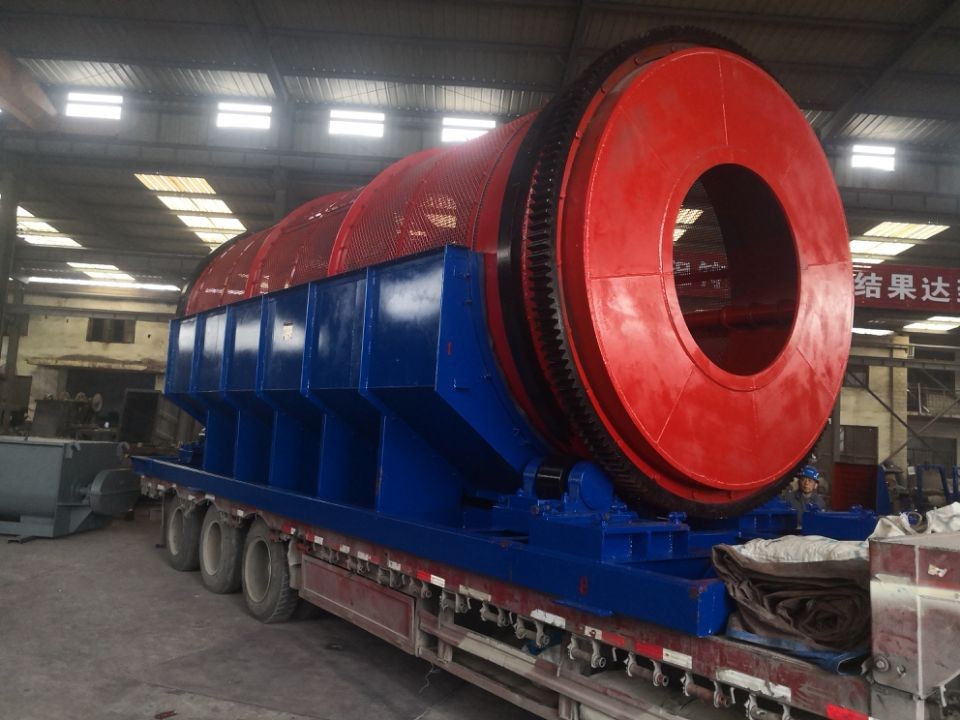

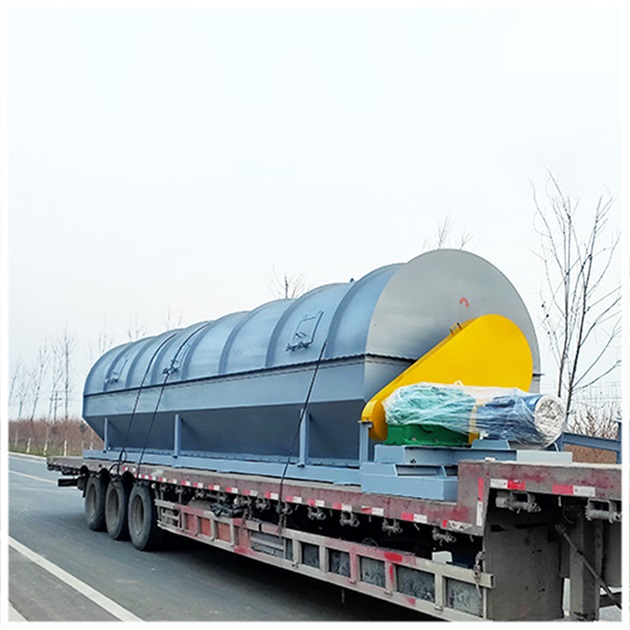

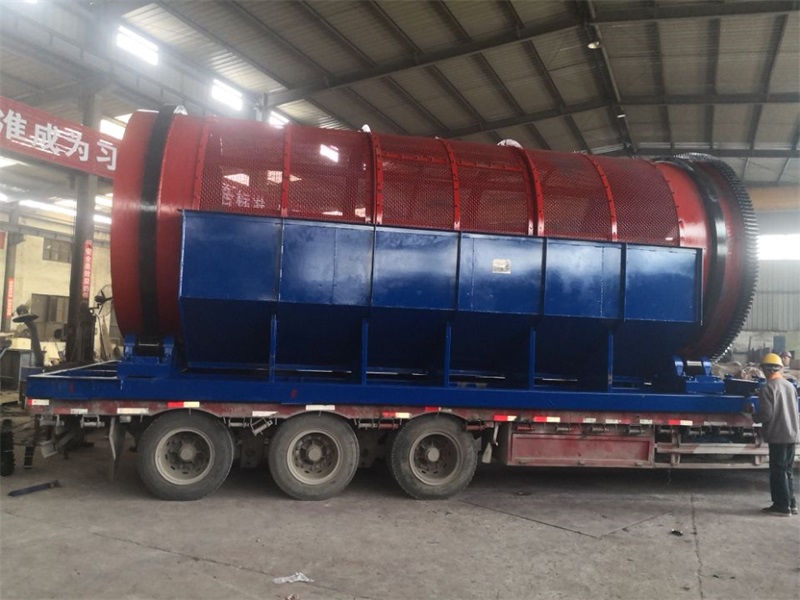

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
