Description

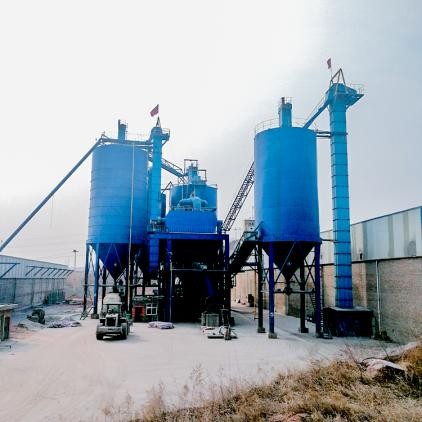

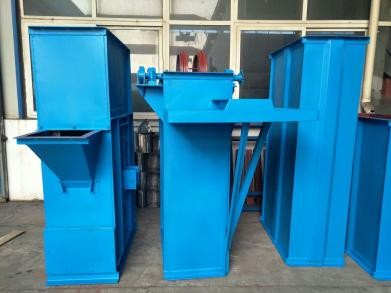

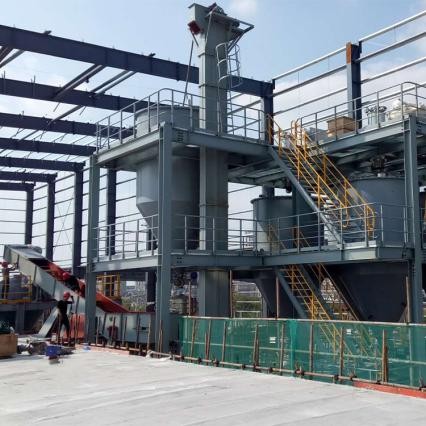

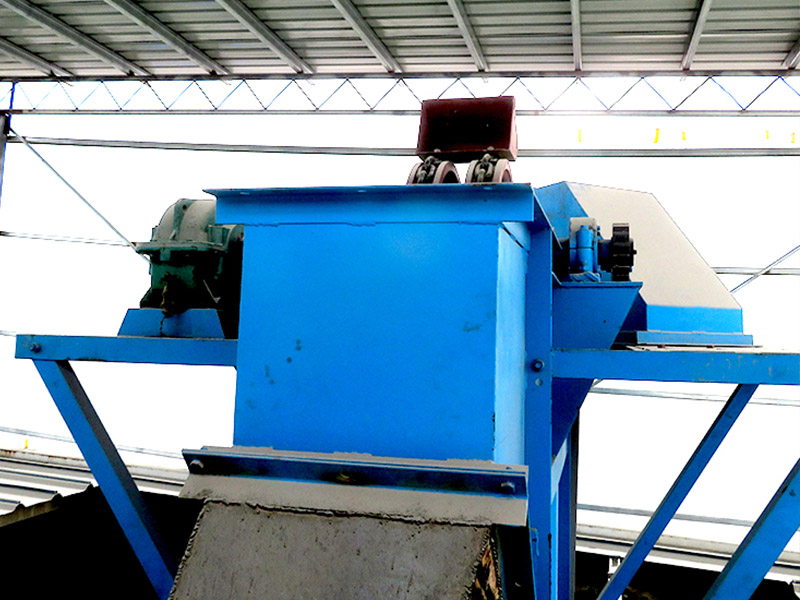

TH type ring chain bucket elevator adopts mixed or gravity discharge, digging type loading, high-quality alloy steel ring chain for traction parts, long service life, easy replacement of sprocket, and gravity automatic tensioning device for the lower part. It can maintain a constant tension, avoid slipping or off-chain, and at the same time, the hopper has a certain tolerance when it encounters the jamming phenomenon caused by accidental factors, which can effectively protect the lower shaft and other components.
Advantages
Easy maintenance and long service life.
The casing steel plate is thickened and has good rigidity.
The mid-section housing has two forms: single channel and double channel.
The lifting process runs smoothly and reliably, with low noise and easy maintenance.

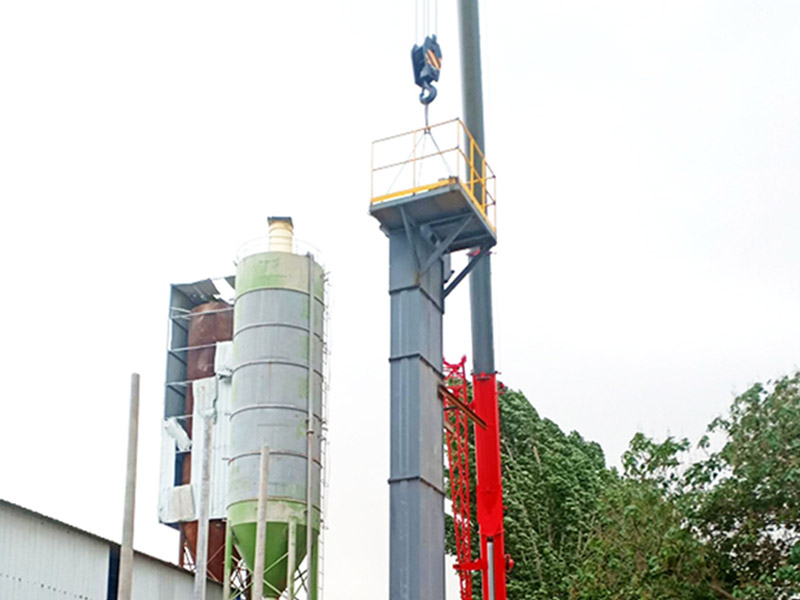

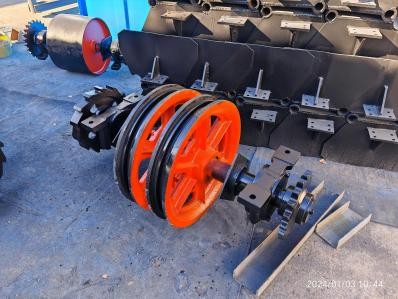

The ring chain is forged with low alloy steel and carburized and quenched. It has extremely high tensile strength and wear resistance.

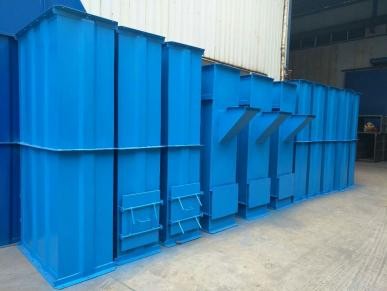

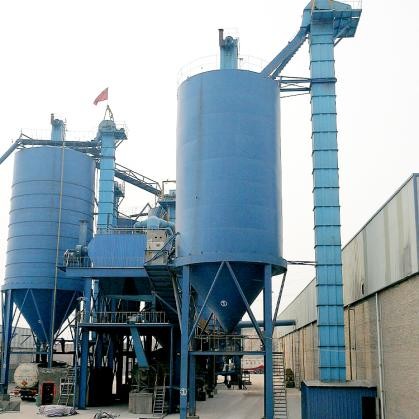

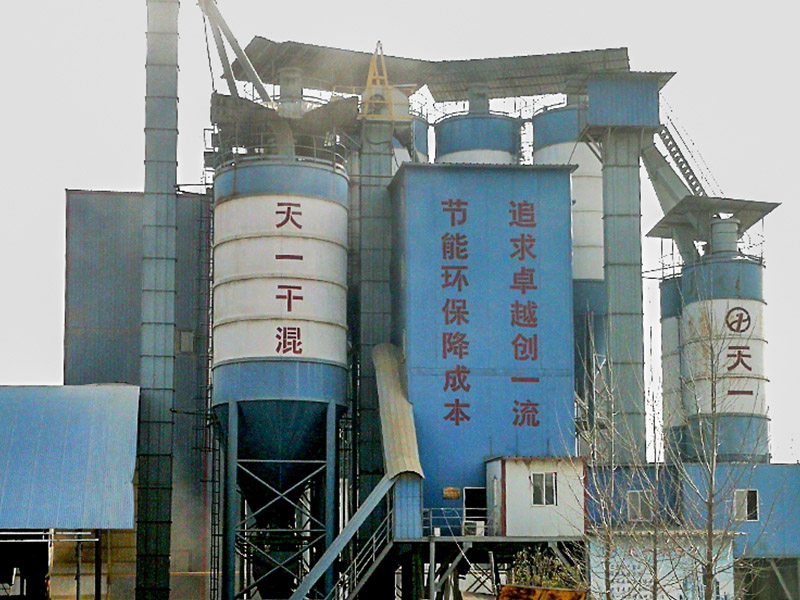

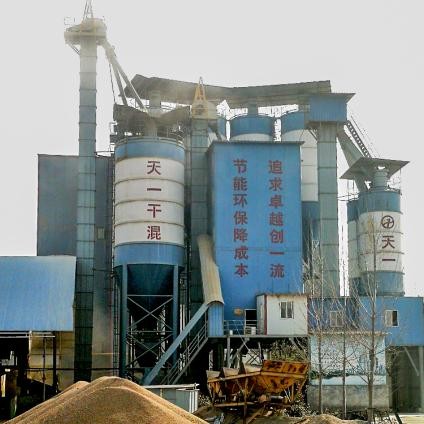

It is suitable for vertical conveying all kinds of powdery, granular, and small bulk materials with temperature below 250℃, bulk density less than 1.5t/m3, and easy to excavating. Such as coal, cement, crushed stone, sand, chemical fertilizers, grain, etc.
Working principle
TH Ring chain bucket conveyor also named double chain bucket elevator. Compared with TD belt bucket conveyor, ring chain conveyor use forging ring chain as their traction component.
Main Parameters
| Model | TH160 | TH250 | TH315 | TH400 | TH500 | TH630 | |||||||||
| Bucket type | Q | S | Q | S | Q | S | Q | S | Q | S | S | S | |||
| Capacity(m3/h) | 6 | 8 | 16 | 19 | 12 | 15 | 27.5 | 32 | 43.8 | 50.5 | 71 | 95 | 106 | ||
| Bucket Width(mm) | 160 | 250 | 315 | 400 | 500 | 630 | |||||||||
| Bucket Volume(L) | 1.34 | 1.45 | 3.3 | 3.7 | 3.3 | 3.7 | 6.5 | 7.2 | 10.3 | 11.6 | 19.6 | 30.8 | |||
| Bucket Pitch(mm) | 400 | 400 | 498 | 500 | 500 | 680 | 500 | 680 | |||||||
| Specification of Chain | Φ14×50×7 | Φ14×50×7 | Φ18×64×7 | Φ18×64×7 | Φ22×86×7 | Φ18×64×7 | Φ22×86×7 | ||||||||
| Speed(m/s) | 1.25 | 1.25 | 1.25 | 1.3 | 1.3 | 1.4 | 1.4 | ||||||||
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.

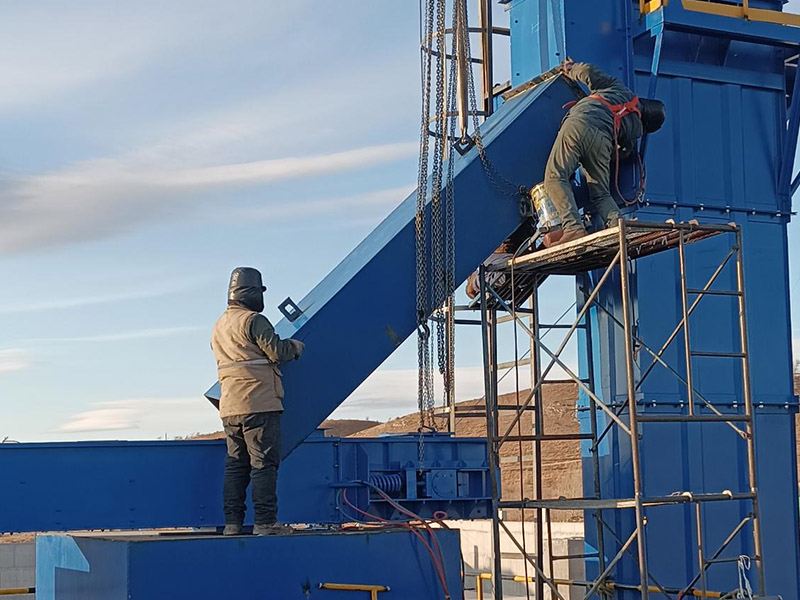

a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

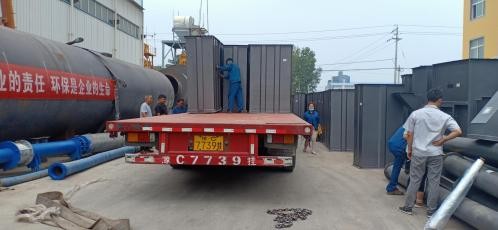

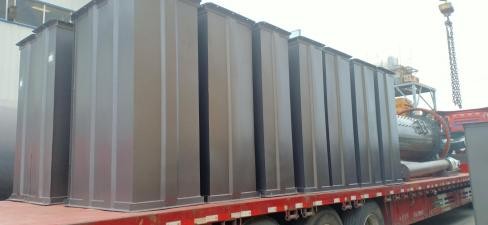

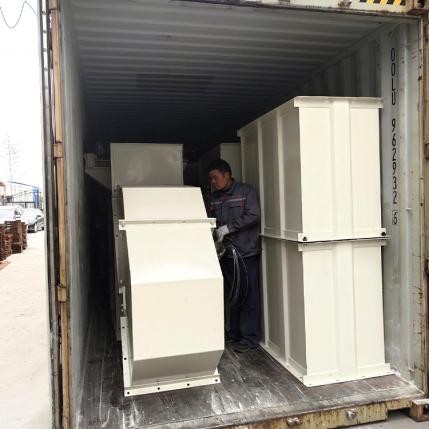

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
