Description
Heavy apron feeders are widely used in mining, metallurgy, building materials and coal industries. This machine is mainly used under the silo and hopper with certain silo pressure to uniformly and continuously transport various large bulk materials to various levels of crushing, screening and transportation equipment in a short distance, especially under the primary crushing
Advantages
The apron feeder is widely used for conveying metal, limestone, gold ore and construction waste, gypsum etc.,
It can bear big pressure under large silo or loader.
The speed can be adjusted by frequency conversion control cabinet.
Including the feed trough, to prevent the material leakage.
Thickness of plate is from 16 mm to 40 mm.

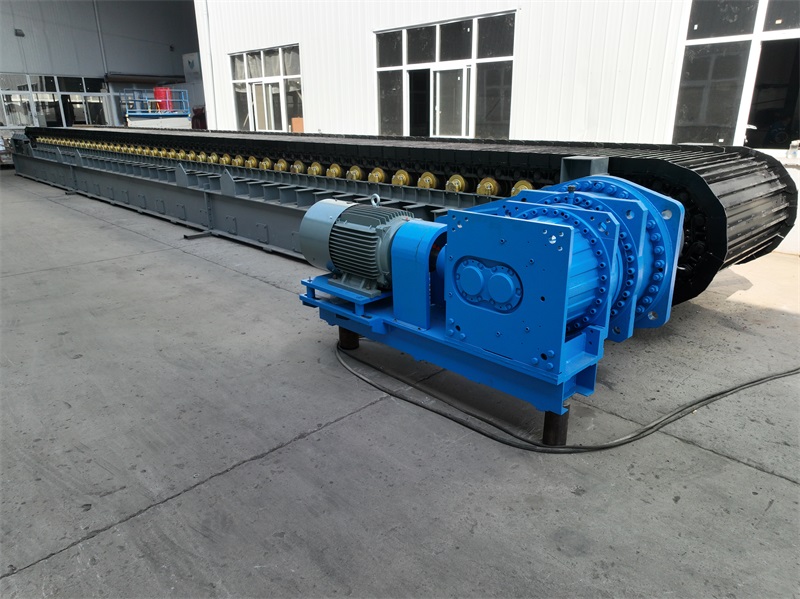

Equipped with a planetary gear reducer, the device features a compact structure and space-saving design.
Can be customized.
Adopting manganese steel cast plates, the component offers excellent wear resistance and impact resistance, ensures an extended service life, and prevents material leakage between adjacent chain plates.

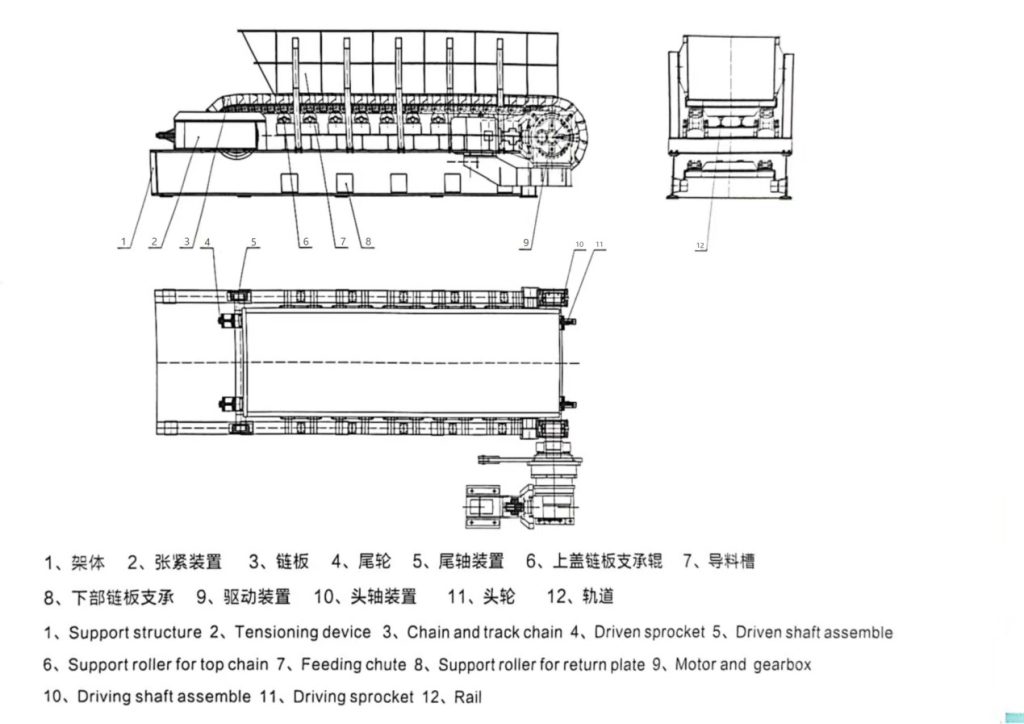

Working principle
It uses tracking chain driven system with interconnected heavy-duty pans (aprons) as the conveying surface. A motor and gearbox drives the sprocket, which pulls the chain and pans to move continuously along the frame. Bulk materials (e.g., ore, coal, aggregates) are fed onto the pans from a hopper or silo, and the moving pans transport the materials stably to the next process (e.g., crusher, conveyor) before returning empty to complete the cycle.
Main Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power |
| (mm) | (mm) | (m/s) | (mm) | (t-h) | (kw) | |
| WBZ120-6 | 1200 | 6000 | 0.01-0.15 | ≤600 | 250 | 15 |
| WBZ150-12 | 1500 | 15000 | 0.01-0.15 | ≤750 | 500 | 30 |
| WBZ160-9 | 1600 | 9000 | 0.01-0.15 | ≤800 | 27-270 | 30 |
| WBZ180-9 | 1800 | 9000 | 0.01-0.15 | ≤900 | ≤500 | 37 |
| WBZ200-9.8 | 2000 | 9800 | 0.01-0.15 | ≤1000 | ≤500 | 37 |
| WBZ220-10 | 2200 | 10000 | 0.01-0.15 | ≤1100 | ≤700 | 45 |
| WBZ240-10 | 2400 | 10000 | 0.01-0.15 | ≤1200 | ≤850 | 2×37 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

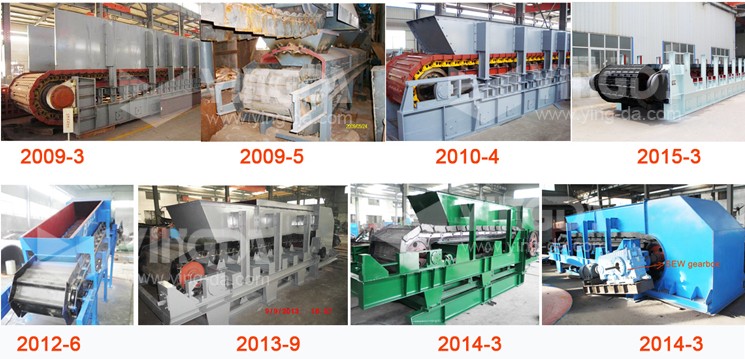

Project Case
