Description
TDG efficient bucket elevator is a new product designed and manufactured by introducing the world’s advanced technology. It can meet the market’s needs for new efficient bucket elevators with large conveying capacity, large lifting height and compact structure.
Advantages
Large capacity, high lifting height and stable operation.

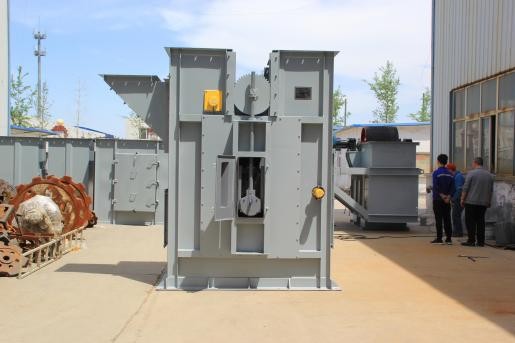

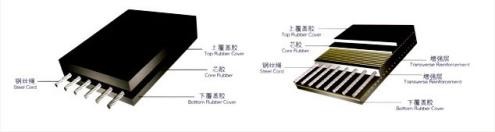

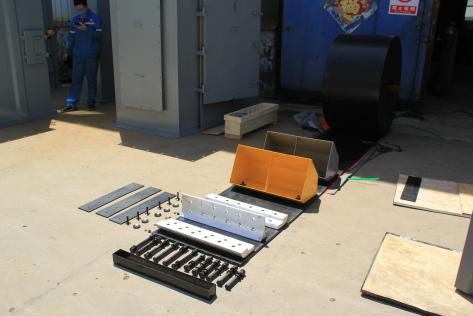

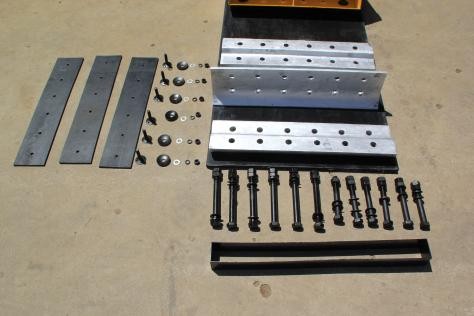

The traction part adopts steel wire core rubber belt with high tensile strength, good toughness, low extension. And the service life of traction parts can reach more than five years.
Adopt centrifugal mixing type unloading and digging type loading.
It is used for the vertical transportation of dry bulk materials, and can be widely used in the material transportation system of building materials, chemical industry, coal, cement, port transportation and other industries.
Working principle
The high-strength steel wire core rubber belt is used for the TGD bucket elevator, which can overcome the dynamic load generated by the chain drive. It is lighter than the chain, works smoothly, and can achieve higher productivity with faster movement speed. Under the same production conditions, due to the high working speed and light self-weight of the rubber belt, thus reducing the size and weight of the complete elevator. At the same time, due to the fact that the rubber belt is well elastic and flexible, it has a damping effect when loading into the bucket. The high-strength steel wire core rubber belt can greatly improve the transport height and conveying capacity of the elevator. Therefore, the product has a good development prospect.
Main Parameters
| Model | Capacity(m3/h) | Bucket Volume(L) | Bucket Width(mm) | Bucket Pitch(mm) | Speed(m/s) | Uplifted Height（M） |
| TDG250 | 46-65 | 4.2 | 250 | 350 | 1.5 | 80 |
| TDG315 | 102-133 | 8.6 | 315 | 350 | 1.5 | 100 |
| TDG400 | 135-175 | 13.5 | 400 | 420 | 1.5 | 100 |
| TDG500 | 177-228 | 17.5 | 500 | 420 | 1.5 | 100 |
| TDG630 | 250-327 | 27.5 | 630 | 520 | 1.7 | 120 |
| TDG800 | 321-416 | 35 | 800 | 520 | 1.7 | 120 |
| TDG1000 | 459-600 | 55 | 1000 | 650 | 1.7 | 130 |
| TDG1250 | 645-850 | 73 | 1250 | 720 | 1.9 | 130 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
Packing & Shipping

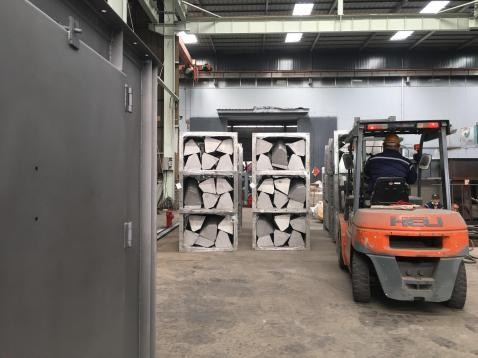

Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
Project Case

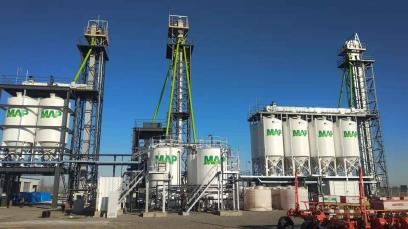

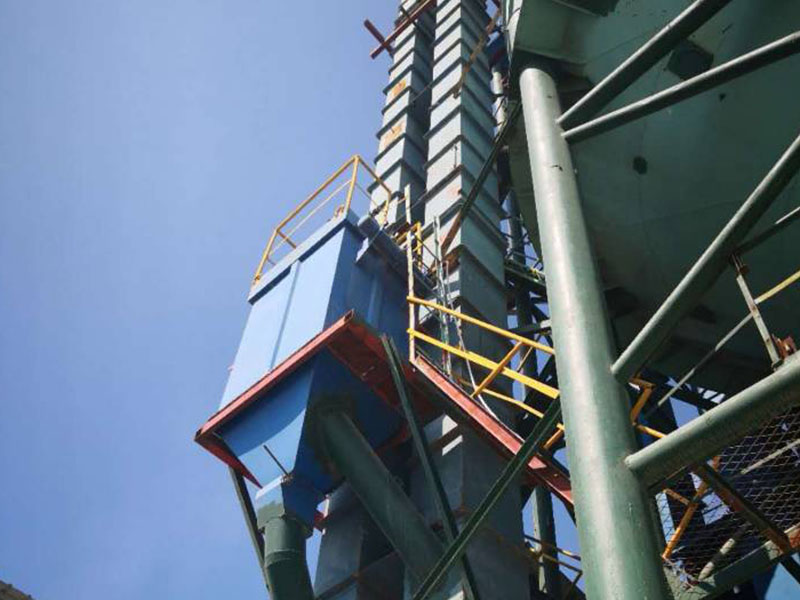

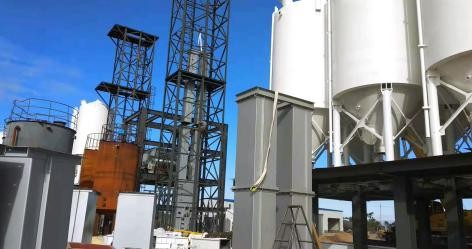

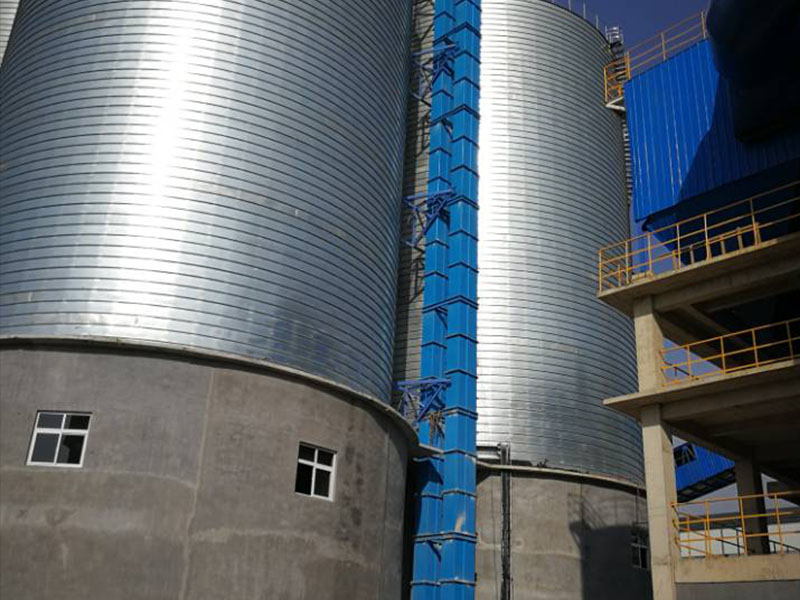

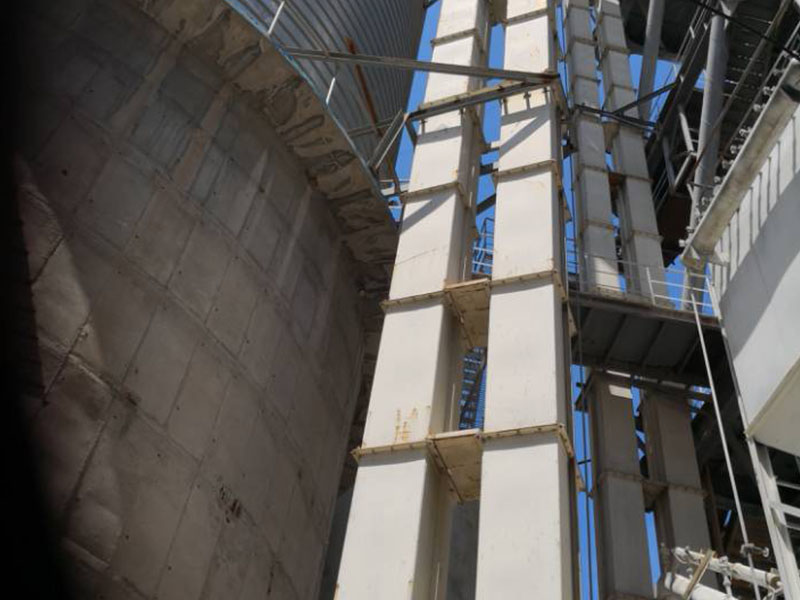

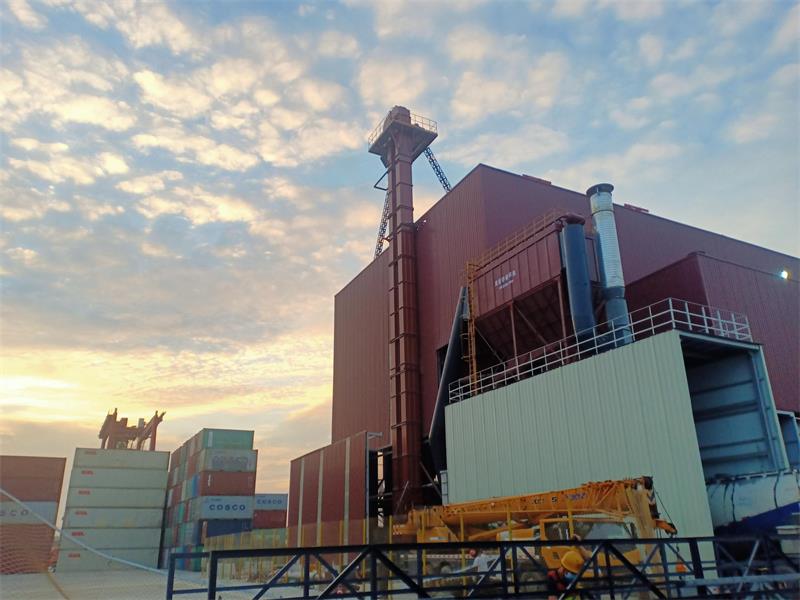

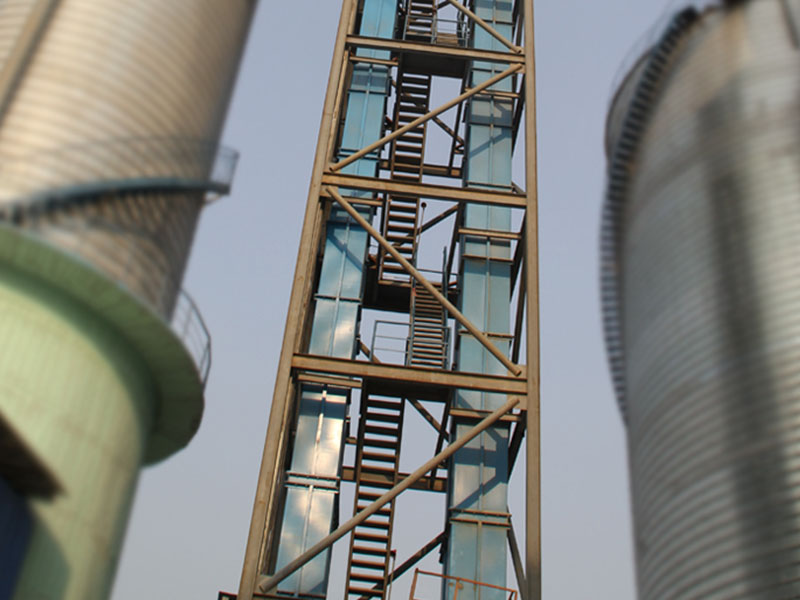

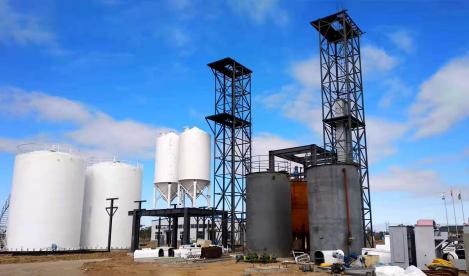

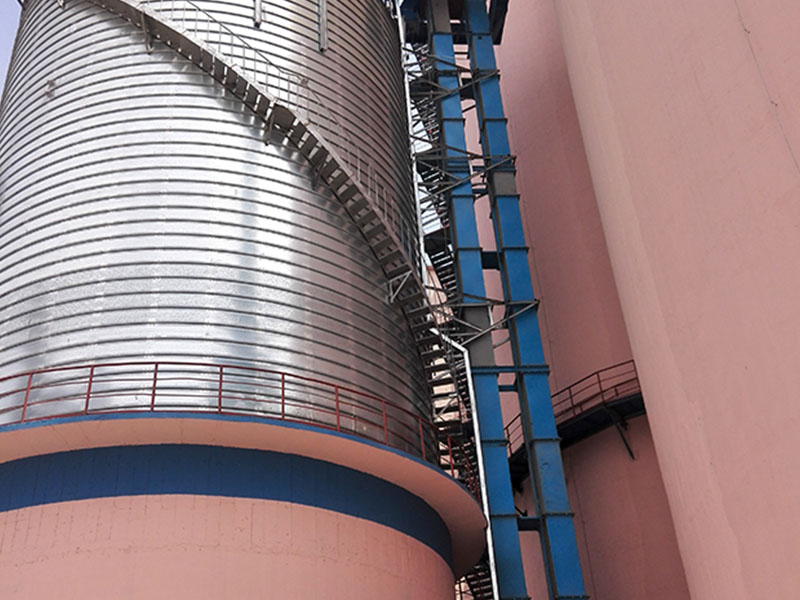

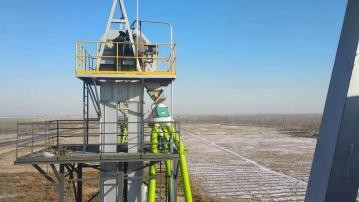

Case display of TDG Steel-wire Belt Bucket Elevator in compound fertilizer production line
