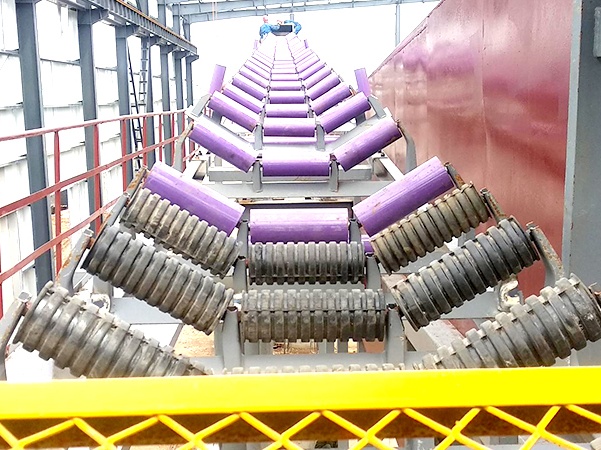

Description
Belt conveyor is a kind of conveying equipment with large conveying capacity, low operating cost and wide range of application. It can be divided into rubber belt, plastic belt and steel wire rope rubber belt according to conveying materials. The working temperature is between -40℃
～
+60℃ in general and the material temperature is not more than 70℃ , If using heat resistant rubber belt ,the material temperature can be up to 200 ℃. When transporting materials with acid and alkaline oil substances, organic solvents and other components, the belt should be oil-resistant, acid and alkali resistant rubber belt or plastic belt.
Advantages
Simple process structure, low cost, strong commonality of parts, easy to maintenance
The capacity can meet the general situation, therefore, the belt is widely used in various industries.
It is used in metallurgy, coal, and other departments to transport bulk materials with a bulk density of 0.5-2.5t/m3, such as block and granular materials, and also to transport packed material.

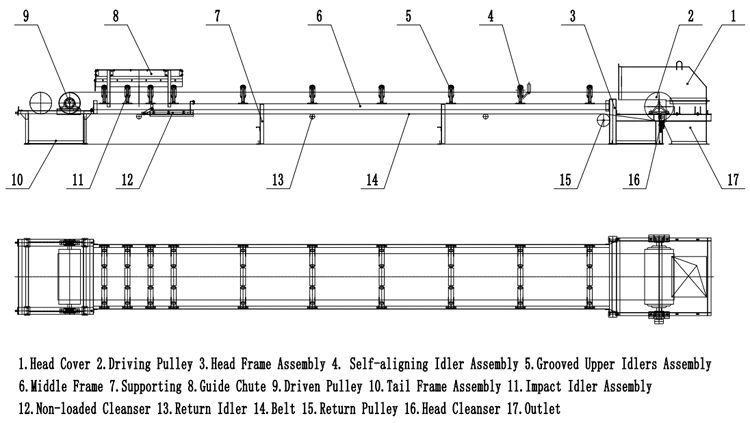

Structure
Main Parameters
| Section Form | Belt Sped | Belt Width(mm) | |||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Capacity(t/h) | |||||||
| Trough Type | 0.8 | 20 | 30 | ||||
| 1.0 | 30 | 40 | 100 | 200 | 300 | 400 | |
| 1.25 | 40 | 60 | 120 | 220 | 340 | 500 | |
| 1.6 | 60 | 80 | 160 | 300 | 350 | 600 | |
| 2.0 | 80 | 100 | – | 350 | 500 | 700 | |
| Flat Type | 0.8 | 20 | 30 | 60 | |||
| 1.0 | 30 | 40 | 100 | 250 | 350 | 400 | |
| 1.25 | 40 | 60 | 150 | 300 | 500 | 600 | |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

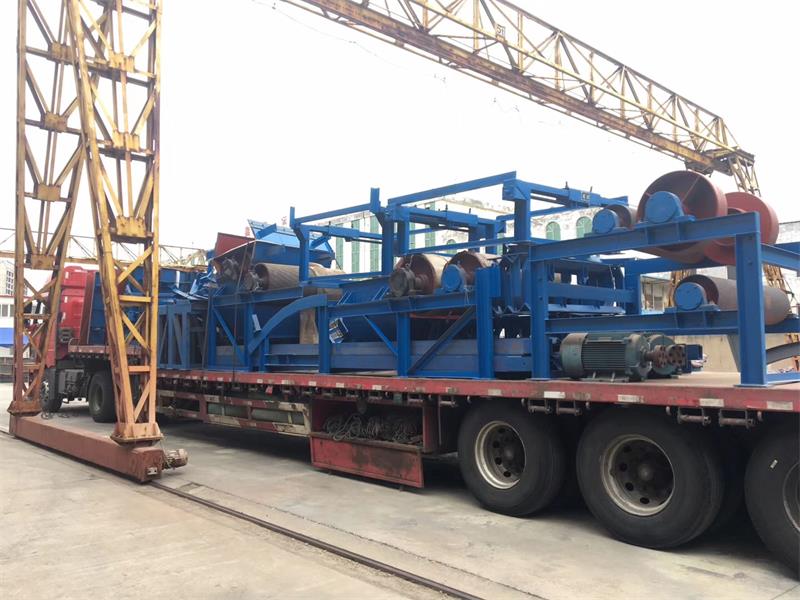

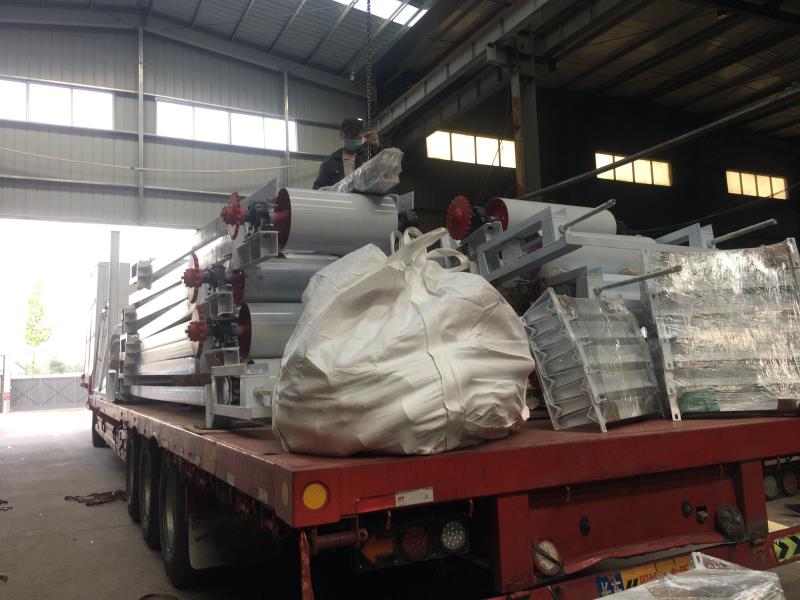

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

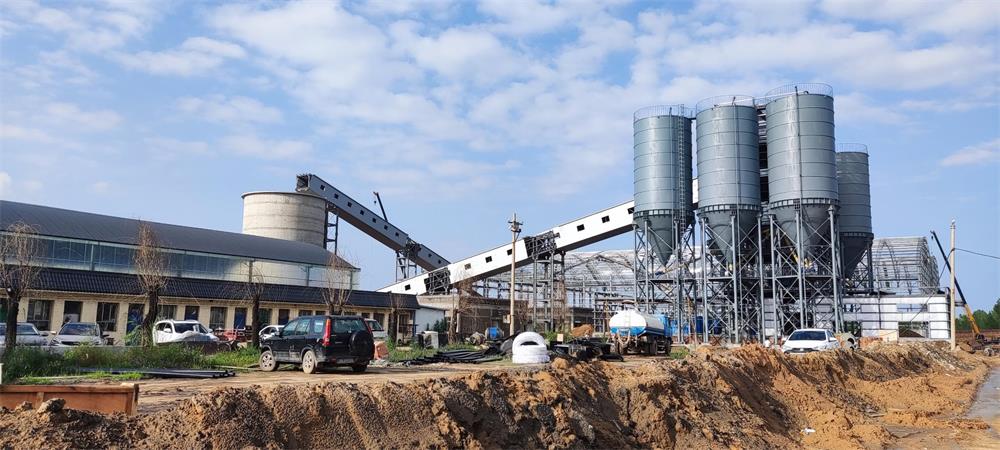

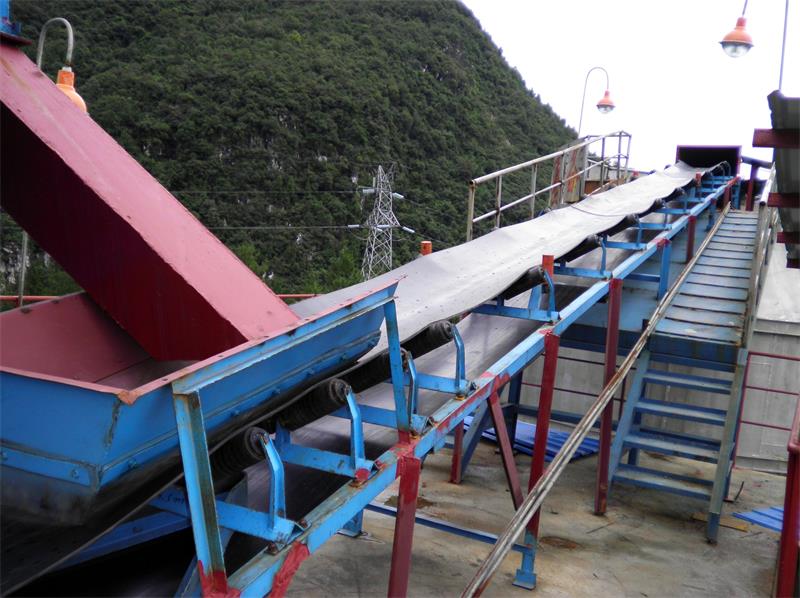

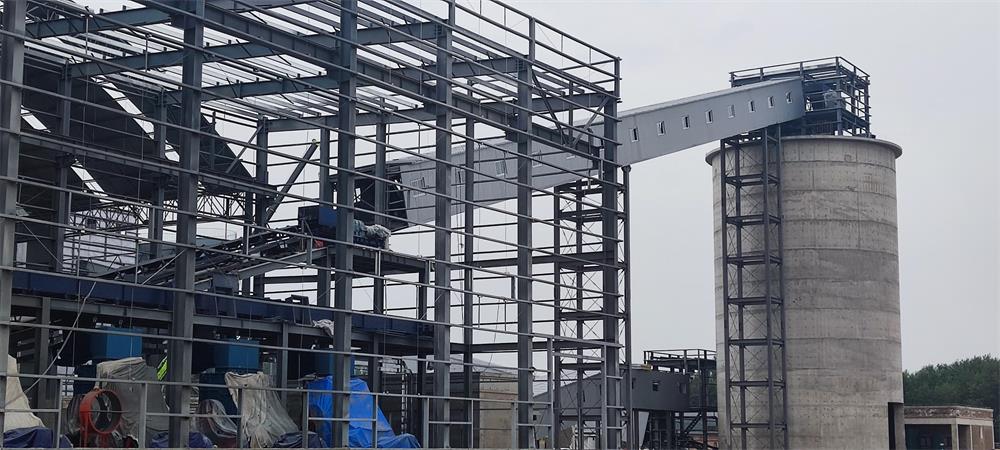

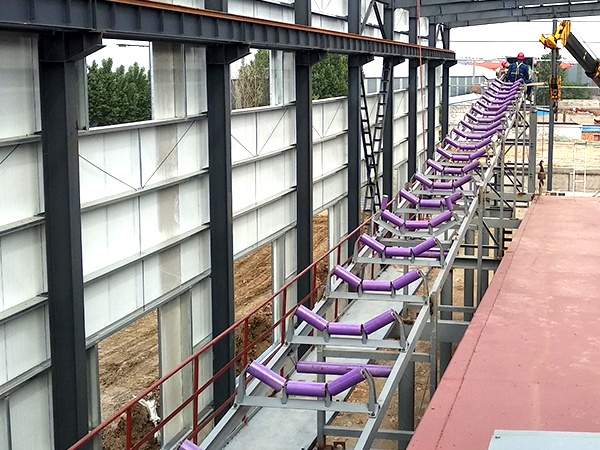

Project Case
