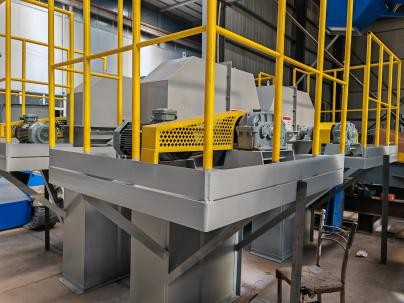

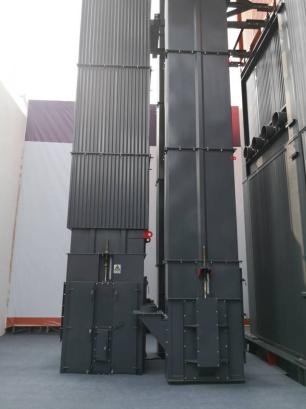

Description
TD type belt bucket elevator is suitable for vertically conveying powdery, granular and small pieces of bulk materials with small abrasive, and the lifting height is up to 40m. Compared with the traditional D type bucket elevator, TD type has higher conveying efficiency and more hopper types, so it should be preferred.
Advantages
Low-energy, adopt excavating type to load the material and centrifugal discharge . There is almost no backflow phenomenon when running.
The application scope is wide, and this kind of bucket elevator has few requirements on the types and characteristics of materials. Not only it can lift the general powdery and small granular materials, but also lift the materials with greater grinding ability. Good sealing, less environmental pollution.
Good operation reliability, advanced design principle and processing method, to ensure the reliability of the machine operation, trouble-free time more than 20,000 hours.
Long service life, there’s less the phenomenon of extrusion and collisionthe when bucket elevator in the operation.The machine is designed to ensure that the materials do not scatter when feeding and discharging, thus reducing mechanical wear

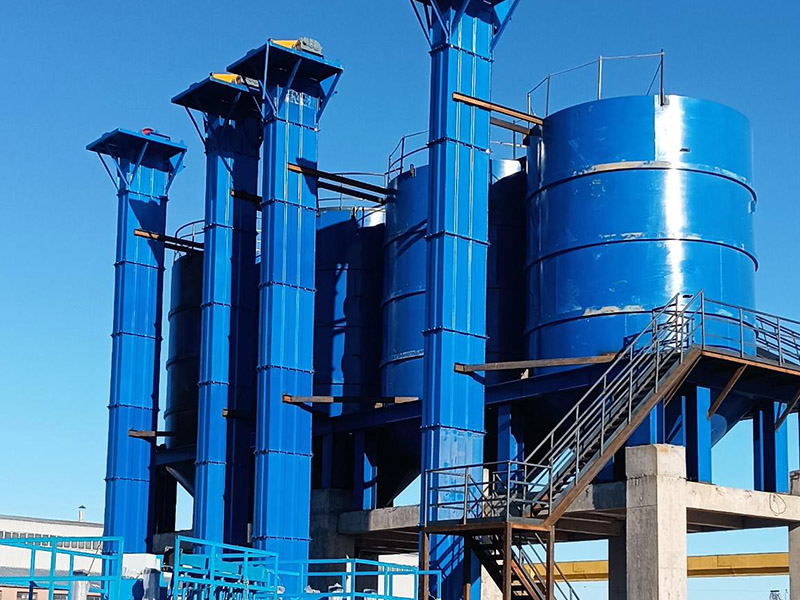

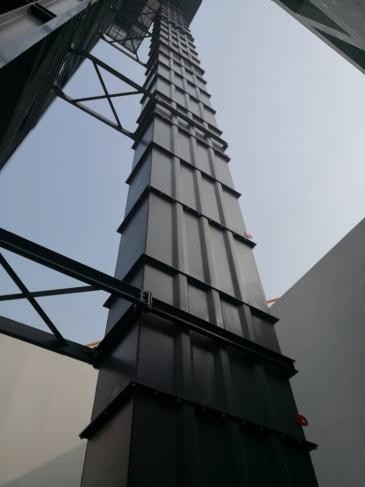

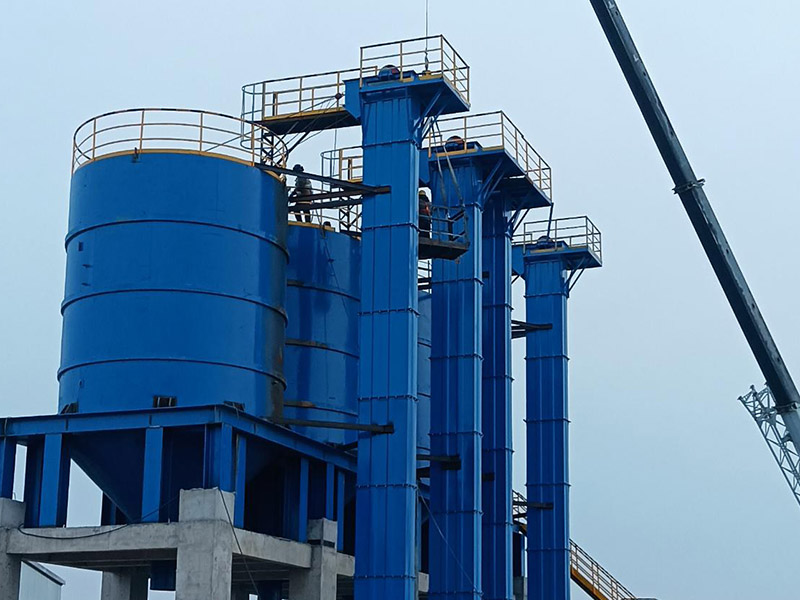

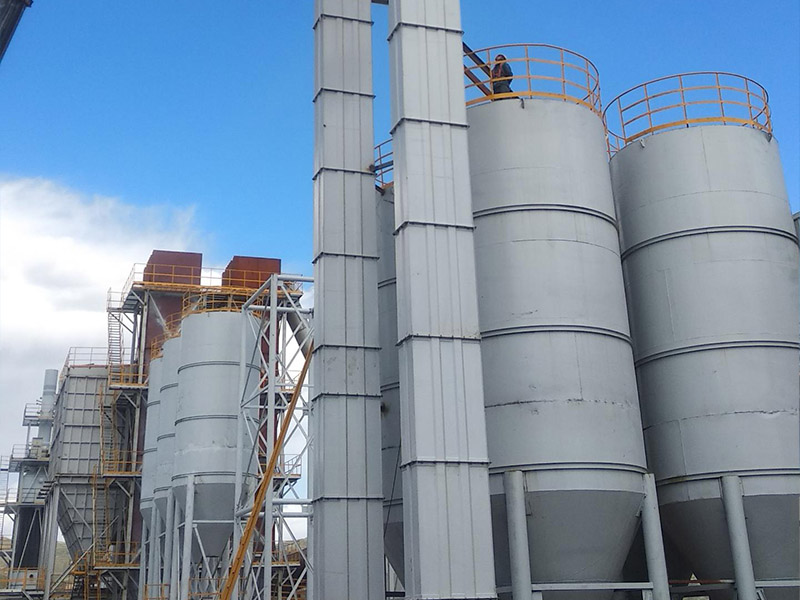

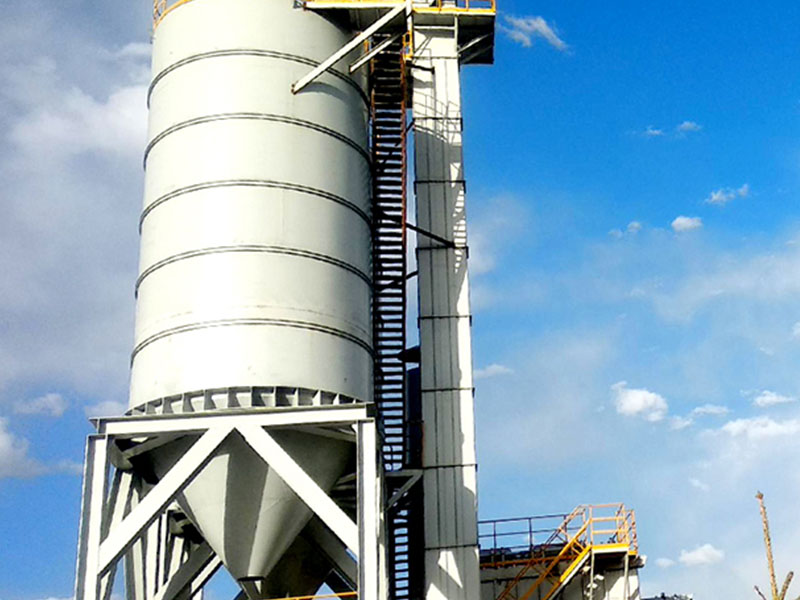

It is used for lifting and transportation of coal, cement, raw material, slag, gravel, sand, fertilizer and grain.

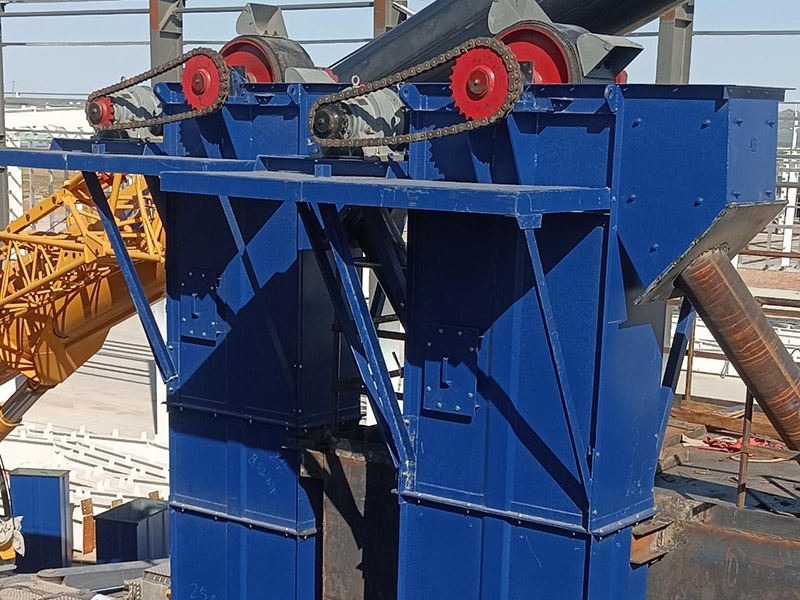

Working principle
All buckets are tracked by belt, so the speed can be up to 1.8m/s, And capacity can be up to 500m3/hr by TGD.

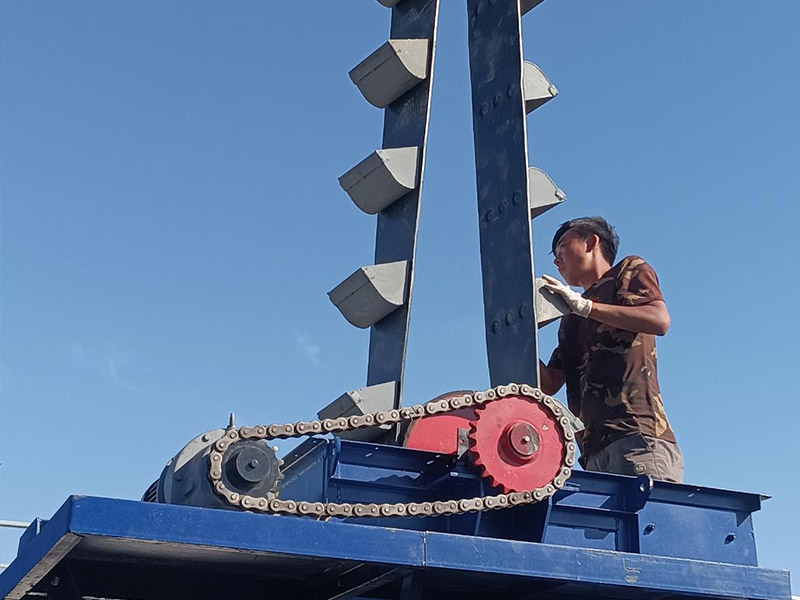

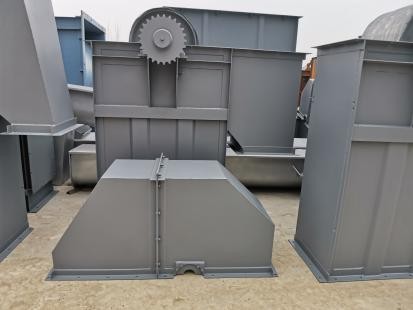

The hopper picks up the material from the bottom box, and as the conveyor belt is lifted to the top, it rolls over the top wheel and then flips down. The bucket elevator pours the material into the receiving tank or other equipment.
The drive belt of the belt bucket elevator is generally equipped with rubber belt, the belt has two-layer tear-resistant steel mesh, to avoid the belt be torn apart.
Belt bucket elevator: suitable for lifting from low place to high place. The supply material is automatically transported upwards and continuously after the material is put into the bucket through other conveyors.
Main Parameters
| Model | TD160 | TD250 | TD315 | TD400 | TD500 | TD630 | |||||
| Bucket type | Q | S | Q | S | Q | S | Q | S | Q | S | S |
| Capacity(m3/h) | 7 | 9.2 | 18 | 21 | 27.5 | 32 | 43.8 | 50.5 | 71 | 95 | 106 |
| Bucket Width(mm) | 160 | 250 | 315 | 400 | 500 | 630 | |||||
| Bucket Volume(L) | 1.34 | 1.45 | 3.3 | 3.7 | 6.5 | 7.2 | 10.3 | 11.6 | 19.6 | 30.8 | |
| Bucket Pitch(mm) | 350 | 360 | 500 | 500 | 680 | 500 | 680 | ||||
| Belt Width(mm) | 200 | 280 | 350 | 481 | 550 | 680 | |||||
| Speed(m/s) | 1.25 | 1.25 | 1.3 | 1.3 | 1.4 | 1.4 | |||||
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.

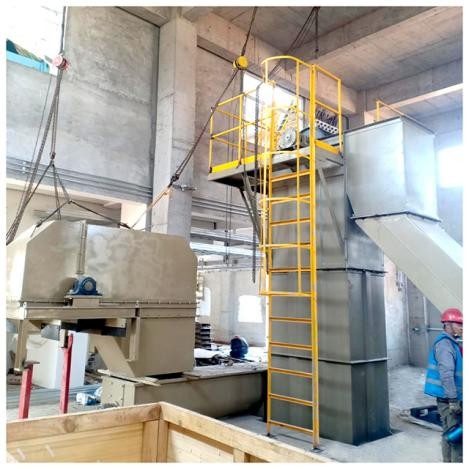

a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

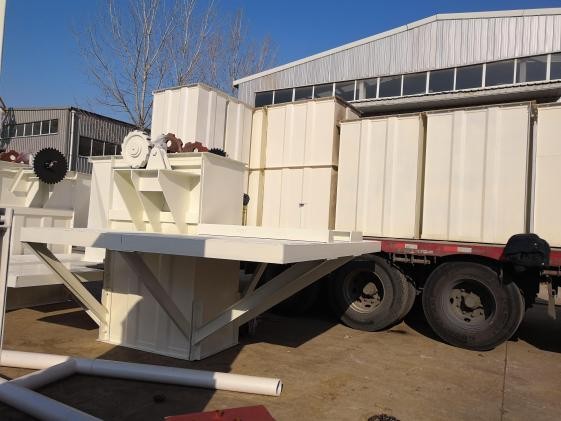

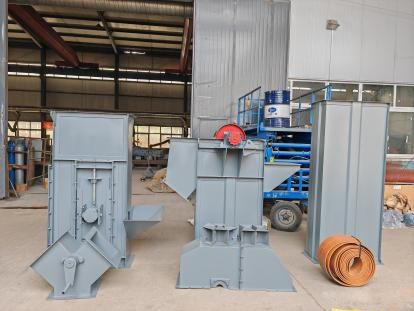

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
