Description
Shaftless screw conveyor is a new type of equipment that designed and researched by ourselves,It is according to the actual demand of building industry, chemical industry, pro- environmental industry, power industry, medicine industry, metallurgy, food and other industries. It has a wide application than the screw conveyor with shaft.
Application ranges
It is suitable for continuous and uniform transportation of sticky, winding, clogging and poor fluidity materials. The maximum inclination is less than 45 ℃.

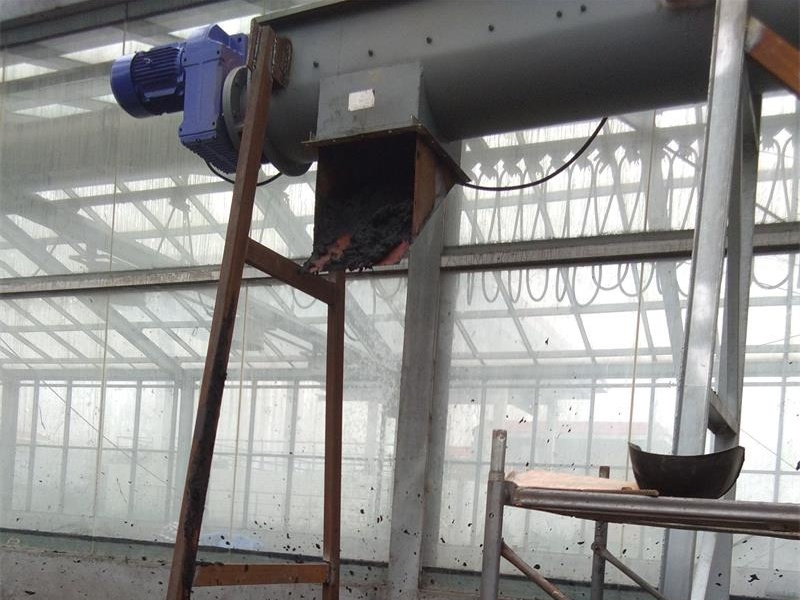

Mainly used for the sludge after dehydration
Advantages
Simple structure, no bearing in the conveying groove, smooth material conveying;
The whole conveying process is carried out in a closed conveying groove, and the materials will not overflow to avoid secondary pollution;

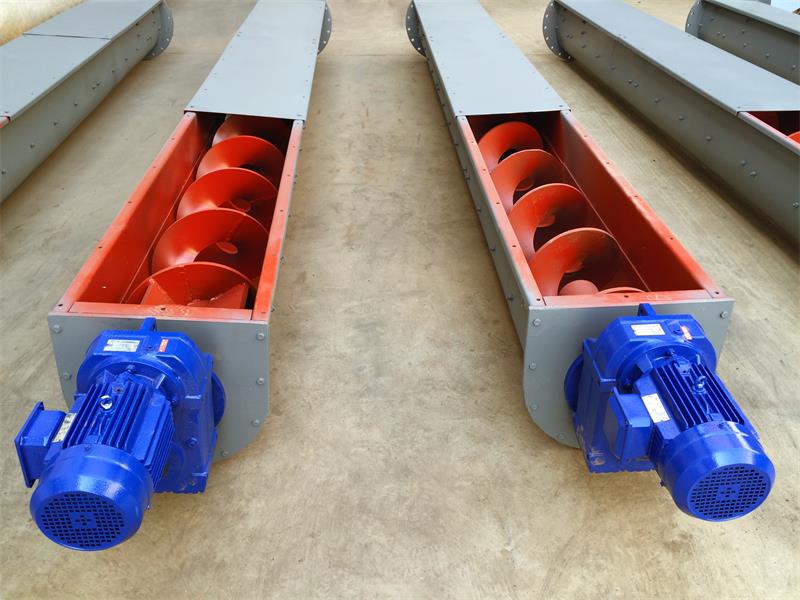

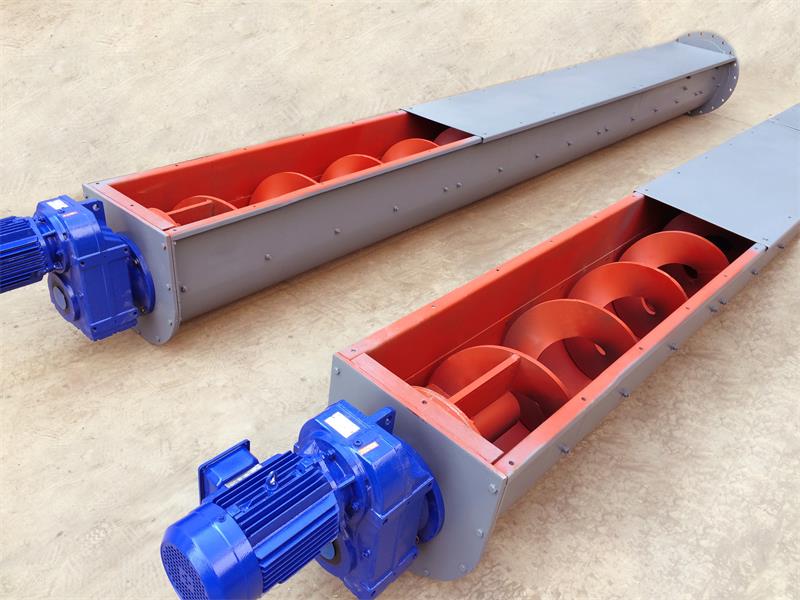

The shaftless flight is integrally formed by special processing technology, and the length of one-time forming is more than 2.5m;
There’s a wear lining at the casing, easy-to-replace liners to save the cost of maintenance, and extend the overall service life of the machine.
5.Low speed operation, low noise, low energy consumption, maintenance free.

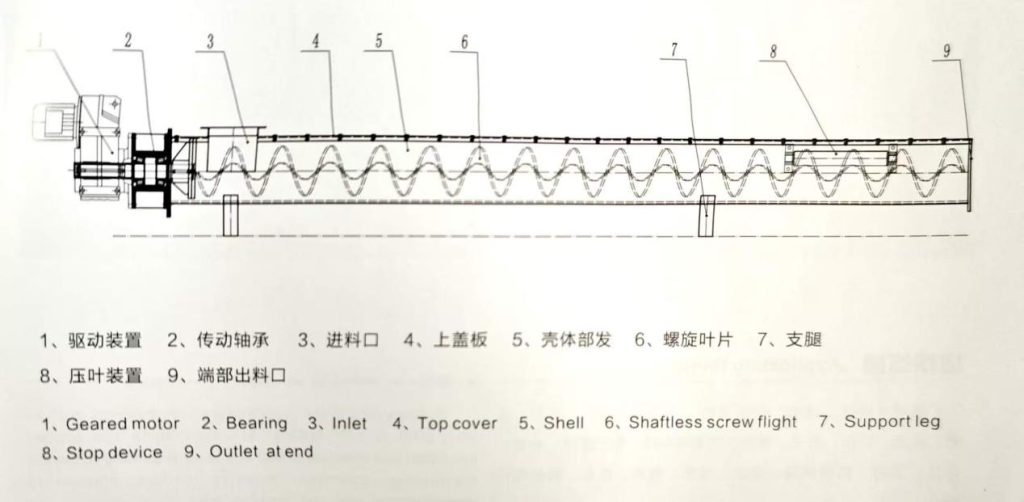

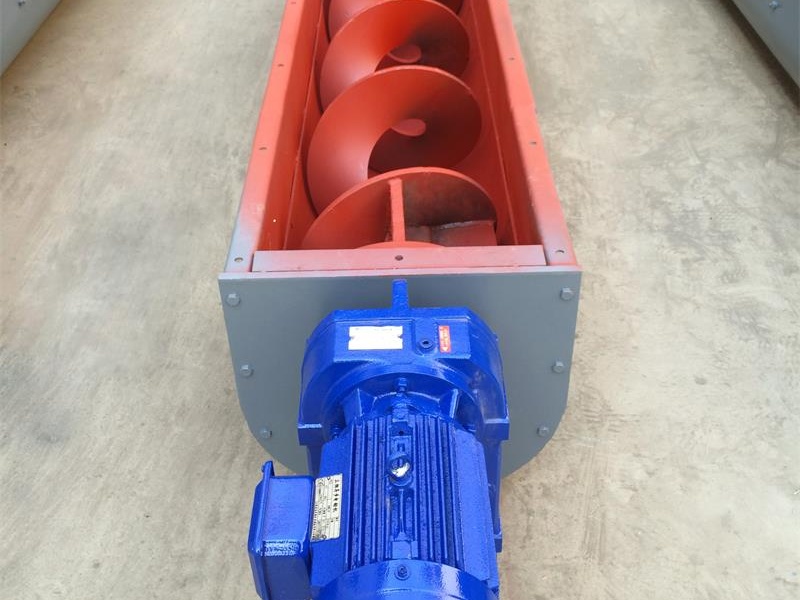

Structure
Main Parameters
| Model | WLS150 | WLS200 | WLS250 | WLS300 | WLS400 | WLS500 | ||
| Screw Dia(mm) | 150 | 184 | 237 | 284 | 365 | 470 | ||
| Shell Dia(mm) | 180 | 219 | 273 | 351 | 402 | 500 | ||
| Tilt angle(α) | 0°-30° | 0°-30° | 0°-30° | 0°-30° | 0°-30° | 0°-30° | ||
| Max Length(m) | 12 | 13 | 16 | 18 | 22 | 25 | ||
| Capacity(t/h) | 2 | 3 | 9 | 13 | 18 | 28 | ||
| Motor | Model | L≤7 | Y90L-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y160M-4 | Y160M-4 |
| Power(kw) | 1.5 | 2.2 | 3 | 5.5 | 11 | 11 | ||
| Model | L≤7 | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160L-4 | Y160L-4 | |
| Power(kw) | 2.2 | 3 | 4 | 7.5 | 15 | 15 | ||
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

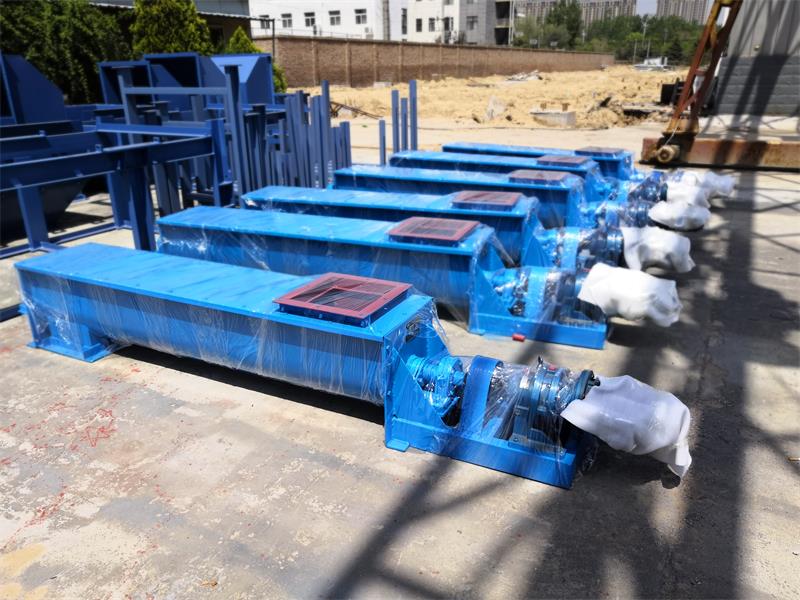

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
