Description
Screw conveyor is bulk material transportation system that convey raw material to or from processing areas that are on different levels of a facility. Screw conveyor can transport materials horizontally, also it can slanted at different angles to convey materials up and down. It require small space and transport the material in full seal U shape casing or pipe.
Advantages
With cover, whole sealing structure, without pollution to the environment.
Conveyor length can be customized according to your need.
Trough screw conveyor machine can be multiple inlets and outlets.
Reducer motor brand can be famous brand: SEW, Flender etc.
Easy to disassemble into several sections, save space during transportation.
Simple structure, small cross-sectional size and low cost.
Facilitate intermediate loading and unloading.
Simple and convenient operation.
During the conveying process, the materials are isolated from the outside world and have good sealing performance.
Application
The screw conveyor is widely used for conveying powder, granule, small block materials.

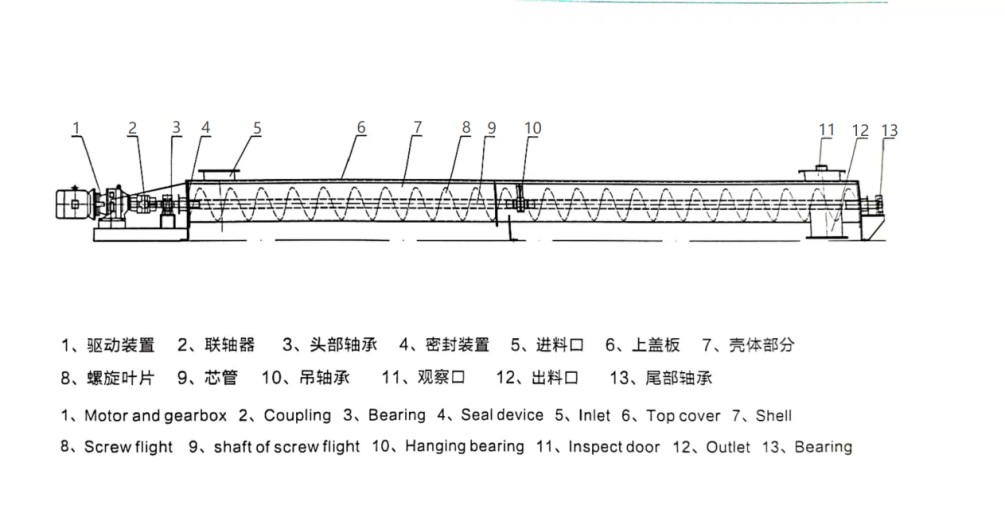

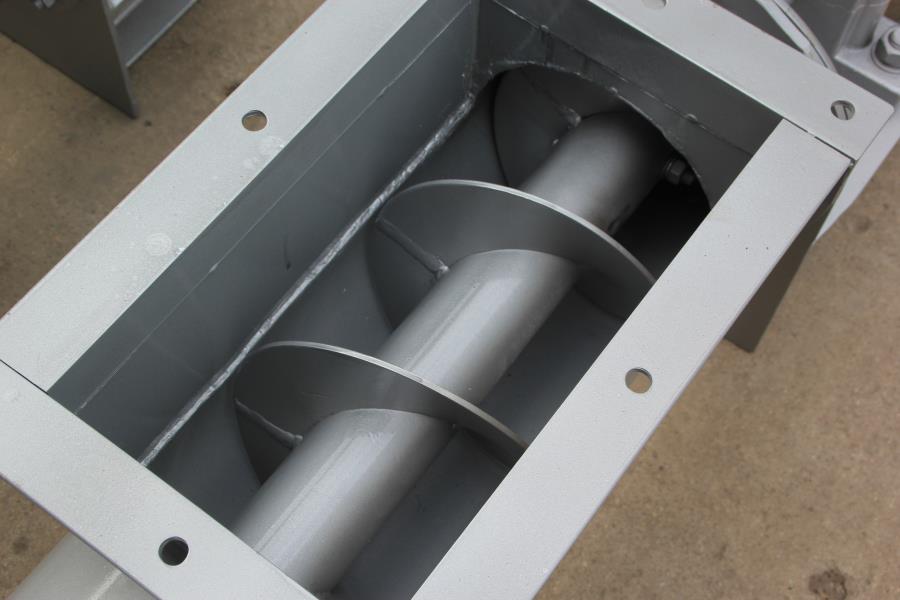

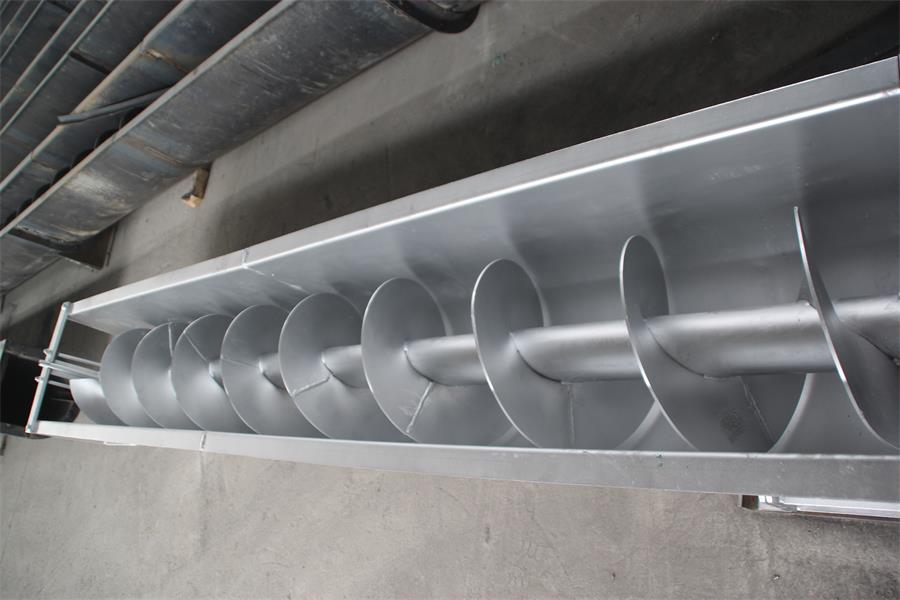

Structure
Main Parameters
| LS type | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
| GX type | 200 | 250 | 300 | 400 | 500 | ||||
| Screw diameter(mm) | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
| Screw pitch(mm) | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 |
| Rotate speed(r/min) | 60 | 50 | 50 | 50 | 50 | 50 | 50 | 45 | 35 |
| Capacity(m³/h) | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 |
| Pd1＝10(kw)Power | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 5.1 | 8.6 | 12 | 16 |
| Pd1＝30m(kw)Power | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
