Description
XGZ type cast-stone scraper conveyor is a heavy cast-stone conveyor developed according to the specific situation of coal preparation plant.It is mainly used for horizontal transportation, but it can also be used for sloping transportation, with its maximum tilt angle is 20 degrees.
Advantages
It is mainly used for horizontal transportation, but it can also be used for sloping transportation.

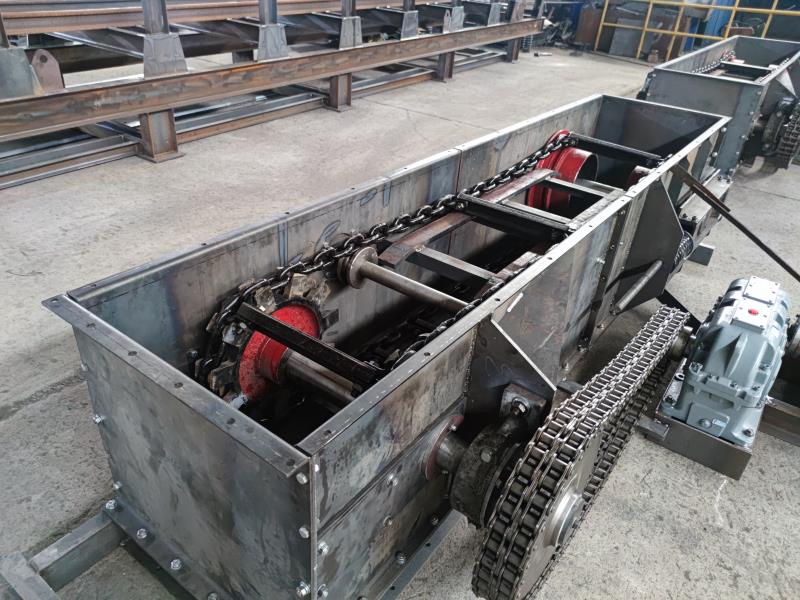

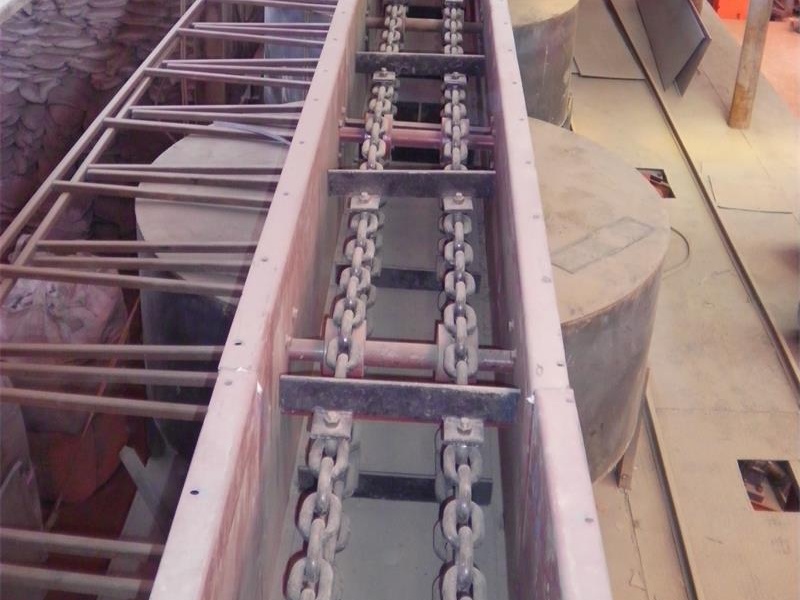

The conveyor includes the head section,transition section,middle sections, scraper device, tail section and drive device etc.It’s max. length is 64.3m,the middle sections is 2m per section.
The conveyor can be installed multiple inlet and outlet opening,to convenient for loading and unloading.
Application Range
The cast-stone scraper is suiting for the closed transport of powder, granular, small size and mixed materials with the temperature below 250°.It is mainly used for horizontal transportation, but it can also be used for sloping transportation..Its max. tilt angle is 20 degrees.
It is mainly applicable to transporting the various materials, and it can be applied to transporting the materials in mines, metallurgy, coal mines and chemical industries that have no high requirements on water content. The particle size of the system is less than 300mm.
Structure
Main Parameters
| Specification | XGZ-06 | XGZ-08 | XGZ-10 | XGZ-12 | XGZ-14 |
| Capacity(t/h) | 100~300 | 200~500 | 300~600 | 400~800 | 500~1000 |
| Speed(m/s) | 0.48~0.76 | 0.48~0.76 | 0.48~0.76 | 0.48~0.76 | 0.48~0.76 |
| Length(m) | 6.7~64.3 | 8.2~64.3 | 8.6~43.6 | 8.9~63.5 | 8.6~53.6 |
| Particle Size(mm) | ＜200 | ＜300 | ＜300 | ＜300 | ＜300 |
| Scraper width(mm) | 600 | 800 | 1000 | 1200 | 1400 |
| Scraper pitch(mm) | 1024 | 1024 | 1024 | 1024 | 1024 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
