Description

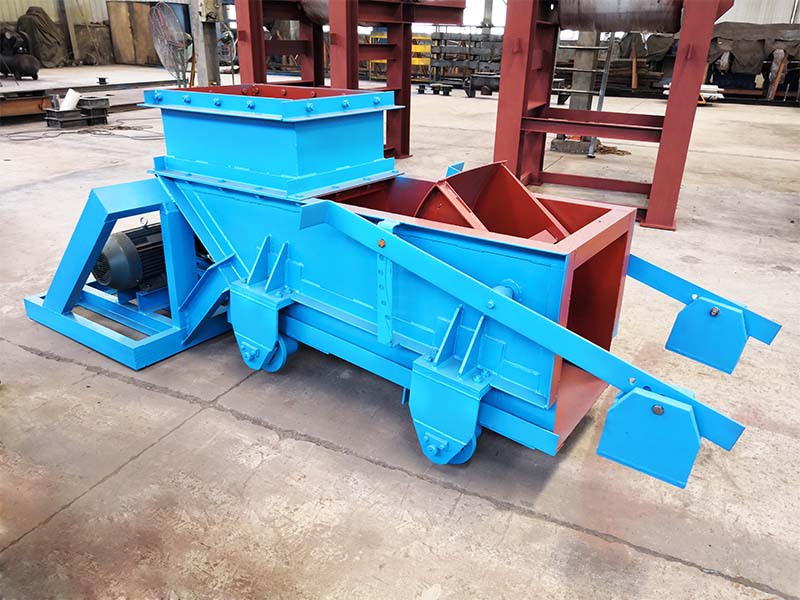

KL-8 type reciprocating feeder is suitable for bulk material transportation in mines, pits, coal preparation plants, transfer stations, coal handling workshops, bulk terminals at ports, etc. It can transfer bulk materials evenly from the bunker or directly to belt conveyors, screening equipment and storage devices for matched operation. It realizes uniform feeding of bulk materials such as ore, coal slurry and grain.
Advantages
Reliable operation and long service life.
Light weight, compact size, easy maintenance.
Simple structure, reliable operation, convenient adjustment and installation.
Closed frame structure, greatly improving the rigidity of the frame.
Working principle
The middle apron feeder operates on a chain-driven cyclic conveying mechanism, tailored for medium-load bulk material handling:
Power source: The motor provides power.
Power transmission: Power passes through the elastic coupling, reducer and crank-link mechanism.
Movement: It drives the inclined bottom plate to perform linear reciprocating motion on idlers.
After unloading, the empty aprons return along the lower track to the feeding end, completing the cyclic operation.
Main Parameters
| Technical Details of Reciprocating Feeder | |||
| 1 | Model | KL-8 | |
| 2 | Overall Dimensions | Length | 3375mm |
| Width | 1350mm | ||
| Height | 1390mm/1090mm | ||
| 3 | Capacity | Max | 250-275t/h |
| Min | 1-10t/h | ||
| 4 | Feed Size | Max | 300mm |
| Min | 1.0mm | ||
| 5 | Body Wall Thickness | 10.0mm | |
| 6 | Table Stroke | 200mm | |
| 7 | Structure Materials | Grade of 20 Carbon Steel | |
| 8 | Overall Weight | 800kg/unit | |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
