Description
NE type plate chain bucket elevator is a product designed and developed by introducing advanced foreign technology. It is a plate chain type, gravity-induced discharge elevator equipment. The machine adopts inflow feeding, the material is lifted to the top by the plate chain after flowing into the buckets, and it discharges under the gravity of the material.
Advantages
Reliable operation.The advanced design principle guarantees the reliability of the whole machine and good sealing.
Large conveying capacity. This series of bucket elevators have various specifications from NE15 to NE800, and the lifting capacity ranges from 15 to 800m3/h.
Long service life.The feeding of the bucket elevator is inflow type, no need to use the bucket to dig,and there is little squeezing and collision between the materials and bucket.
The machine is designed to ensure that the material is less sprinkled during feeding and unloading, reducing mechanical wear.
It is suitable for vertically conveying powder, granularand bulk materials, and can also lift materials with greater abrasive, such as fly ash, slag, limestone, raw cement, cement clinker, cement, coal and dry clay etc. The temperature of the material to be lifted generally does not exceed 200 degrees, and the lifting height can be up to 45m.
Working principle
Inflow feeding: Materials directly flows into the buckets which does not need to excavate materials, reducing mechanical wear. Materials are completely and uniformly taken, which avoid material storage at the bottom. It is suitable for conveying materials with large size and relatively high abrasiveness.
Structure
NE plate chain bucket elevator consists of top box assemble, middle box, plate chain, buckets, motor & gearbox and bottom box assemble etc.

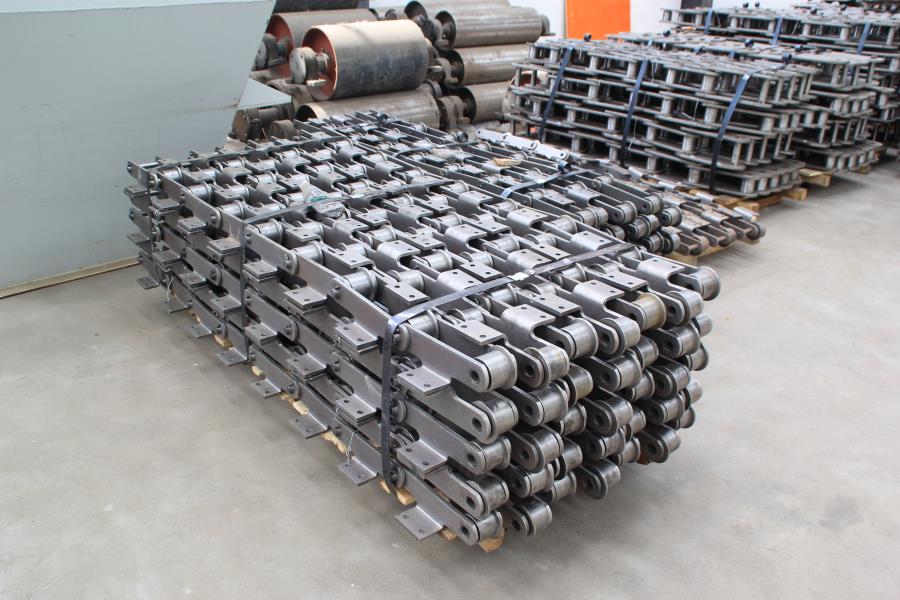

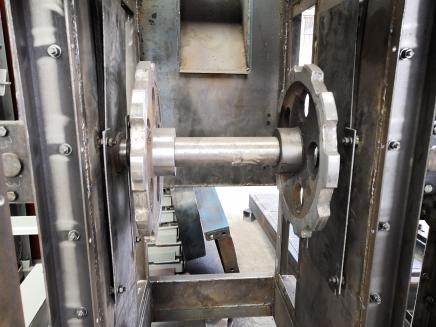

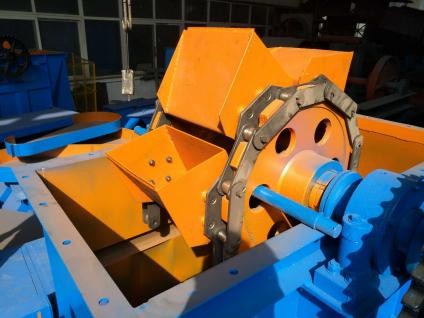

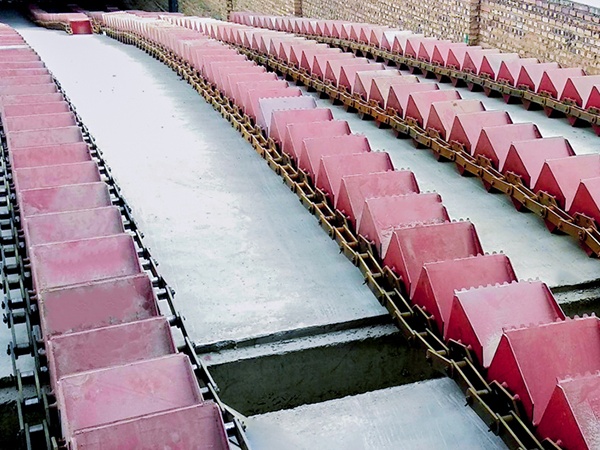

The chain is plate chain. The single row chain is used for NE15 and NE30, and the double row chain is used for NE50-NE800.

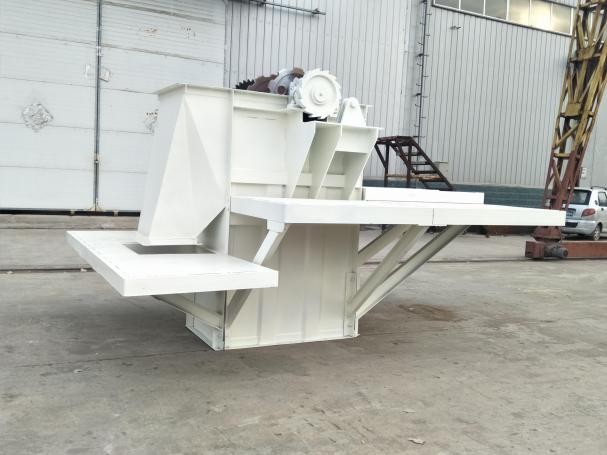

Drive unit consists of a drive platform, a drive combination and a transmission chain. There are 2 types of drive combinations:
The bottom box is equipped with a gravity tension.
Main Parameters
| Model | M3/hCapacity | Max Granularity（mm） | ||||
| Allowable Percentage% | ||||||
| 10 | 25 | 50 | 75 | 100 | ||
| NE15 | 16 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 31 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 50 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 165 | 130 | 105 | 80 | 65 | 70 |
| NE200 | 210 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 300 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 275 | 220 | 165 | 135 | 110 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
Packing & Shipping

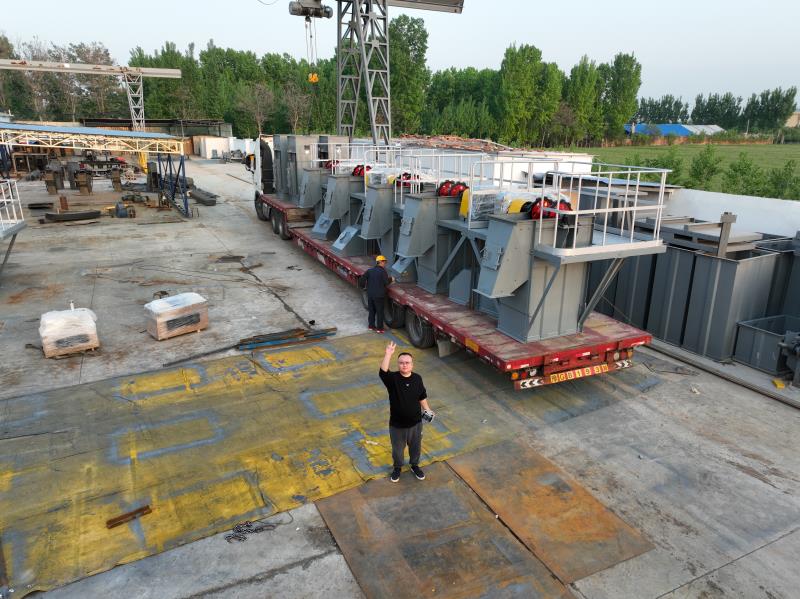

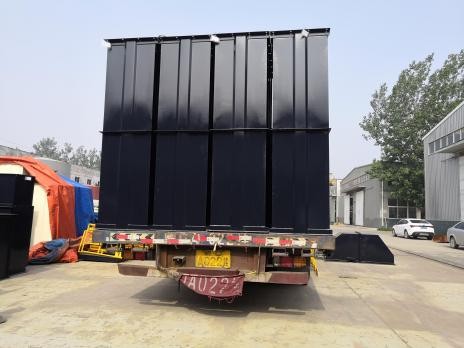

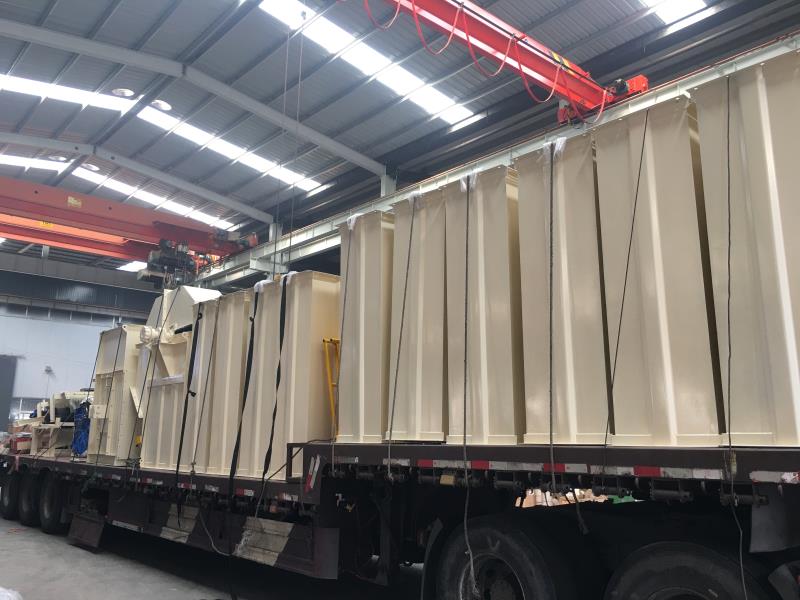

Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

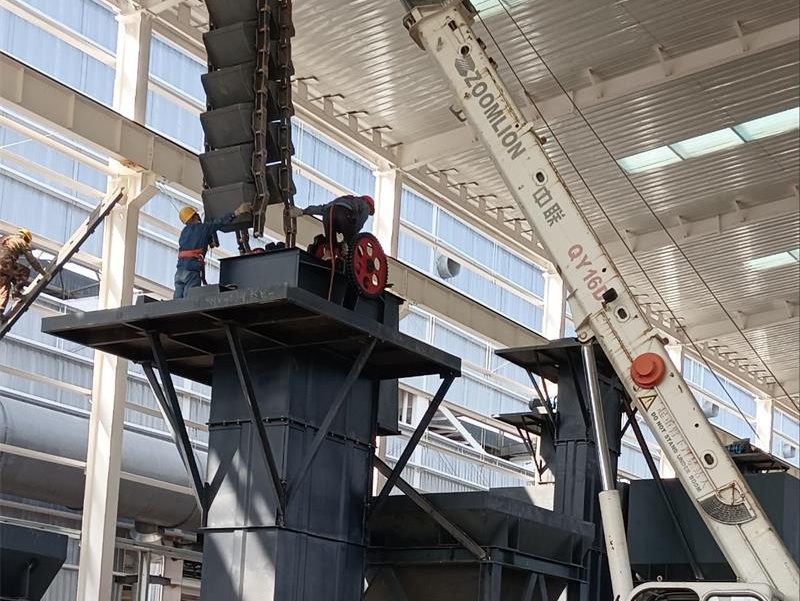

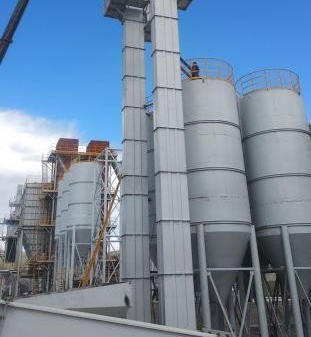

Project Case

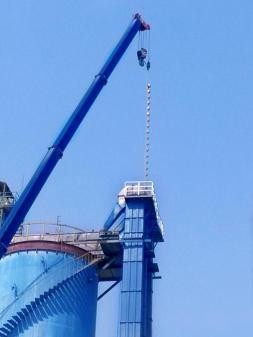

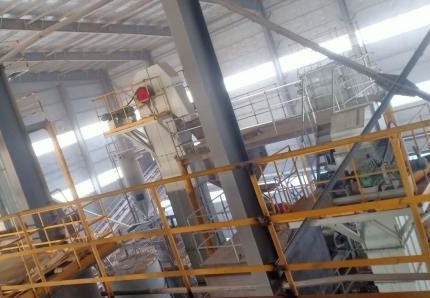

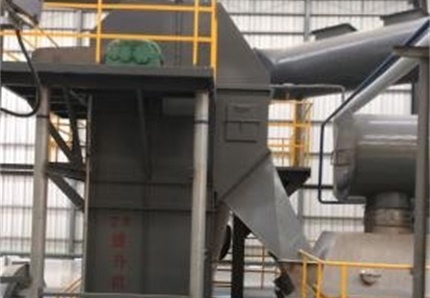

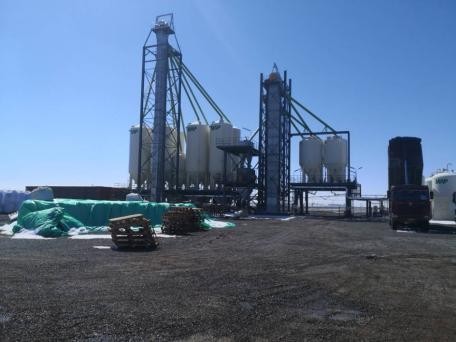

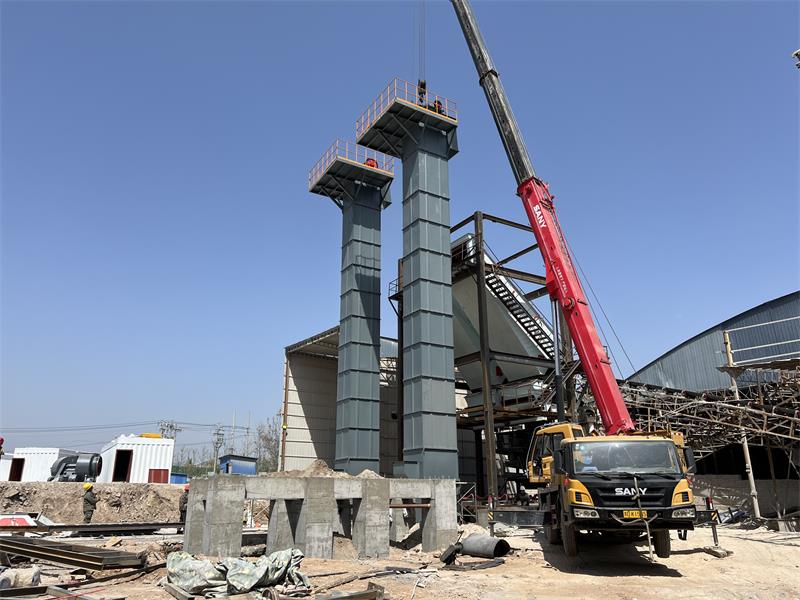

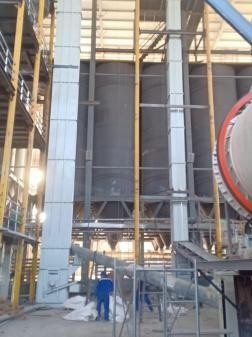

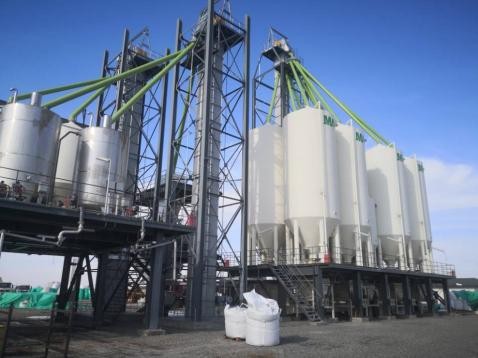

On-site case display of fertilizer plant
