Description

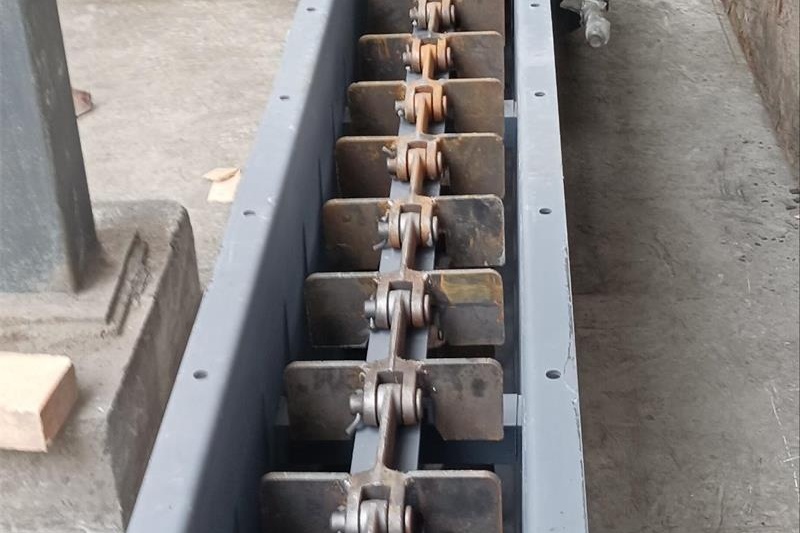

The MS type scraper conveyor is the conveying equipment designed by our factory based on actual need of client. The MS type scraper conveyor use forged chain,the forged chain has undergone heat treatment, and its surface has extremely high hardness, extend the service life of the chain.
It is often used for conveying granular and powdery materials.It can be used for inclined conveying,and the tilt angle is less 20 degrees.
Advantages
The conveyor can be installed by horizontal or sloping.
The conveyor has compact structure,small volume,light weight,and can be installed multiple inlet and outlet opening.
Full seal conveying, especially suitable for conveying ash, toxic, explosive materials, improve working conditions, prevent environmental pollution.
Easy to install,low maintenance cost.
It is widely used in metallurgy, building materials, electric power, chemical industry, cement, port for coal, mine, grain, food and feed and other industries and sectors.
Main Parameters
| Model | Groove Width(mm) | Depth(mm) | Rated Capacity(m3/h) | Max.Length(m) | Chain | |||
| Model | Allowable load | Ref.Weight | Speed | |||||
| MS16 | 160 | 160 | 5-7 | 80 | DT | 17 | 5.62 | 0.16-0.32 |
| MS20 | 200 | 200 | 8-10 | 80 | DT | 26 | 7.2 | 0.16-0.32 |
| MS25 | 250 | 250 | 10-15 | 80 | DT(3200T) | 35(45) | 12.2(15.63) | 0.16-0.32 |
| MS32 | 320 | 320 | 20-25 | 80 | 3002T | 45 | 15.63 | 0.2-0.32 |
| MS40 | 400 | 400 | 30-40 | 80 | 3003T | 75 | 23.24 | 0.2-0.32 |
| MS50 | 500 | 500 | 50-70 | 80 | 3003T | 100 | 25.24 | 0.25-0.32 |
| MS63 | 630 | 630 | 60-80 | 80 | 3003T | 2×75 | 47.6 | 0.25-0.32 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

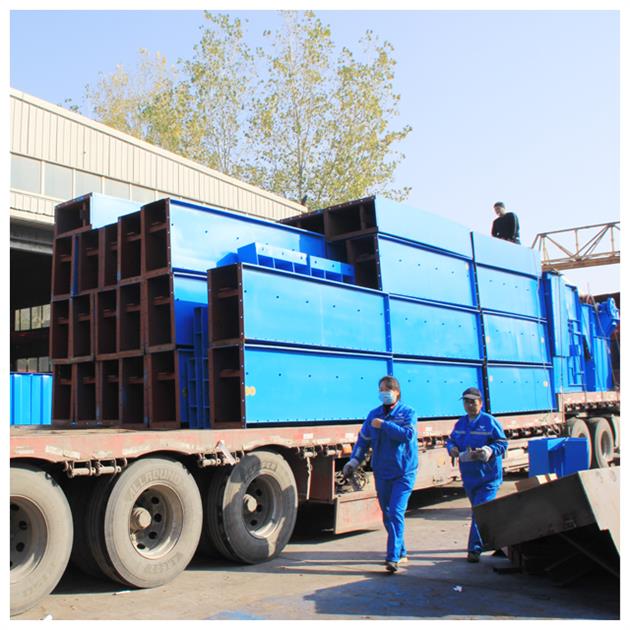

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

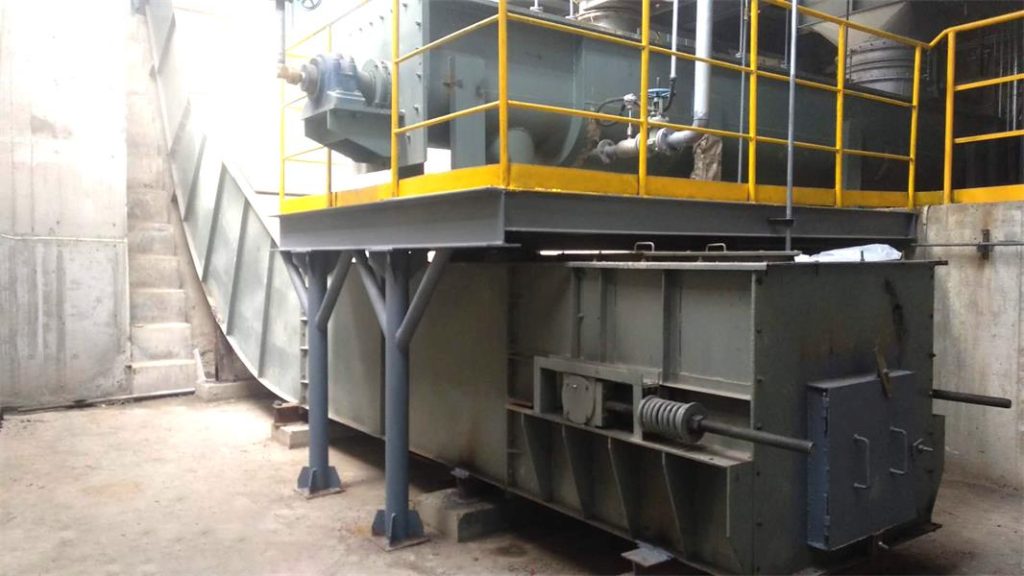

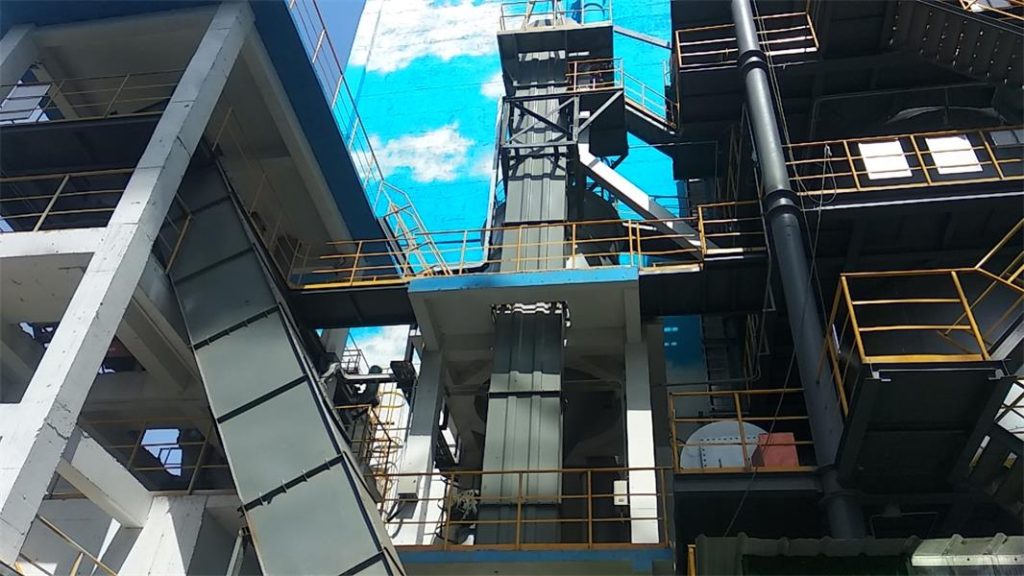

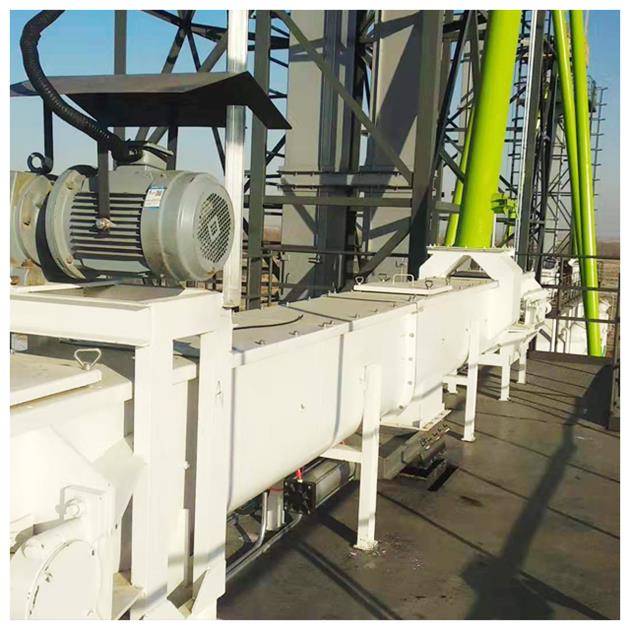

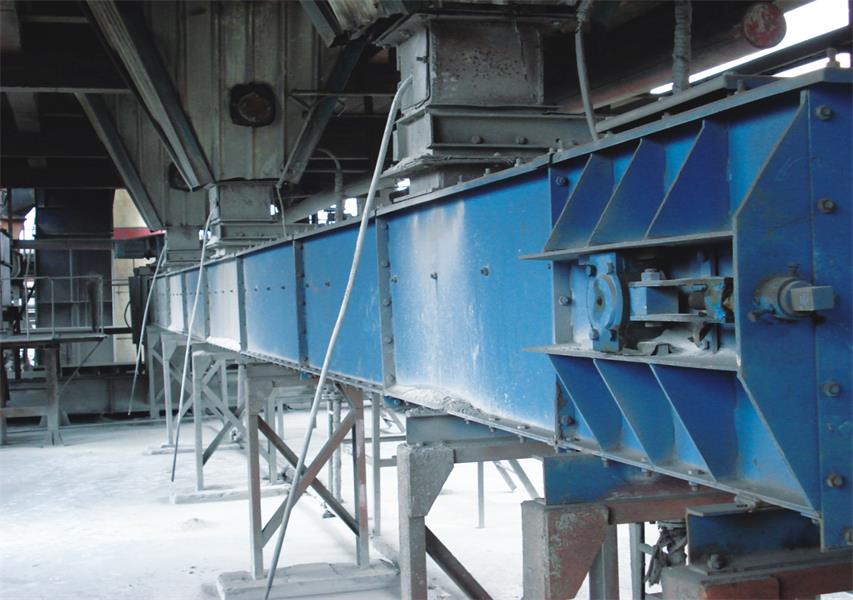

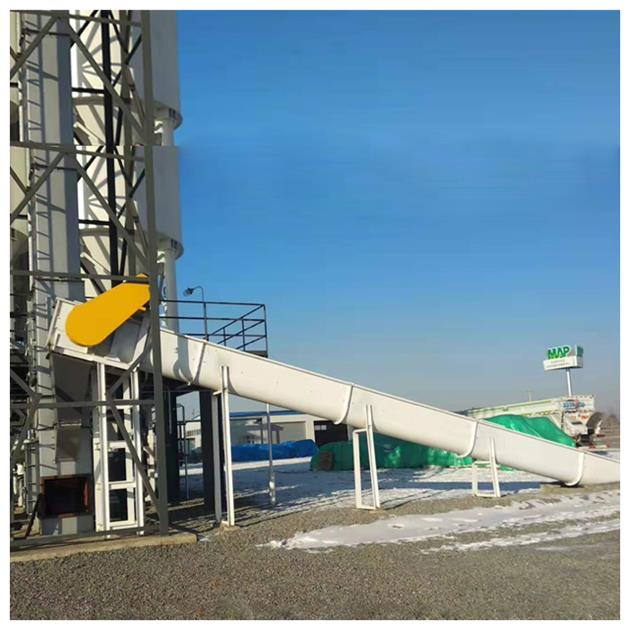

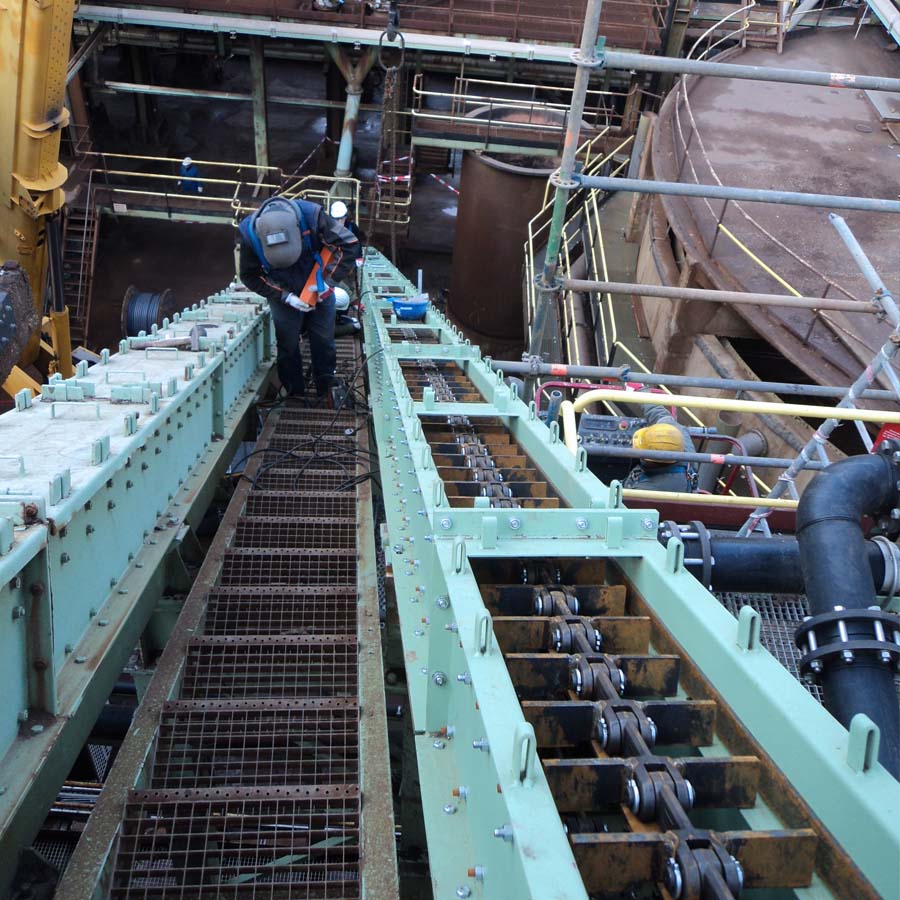

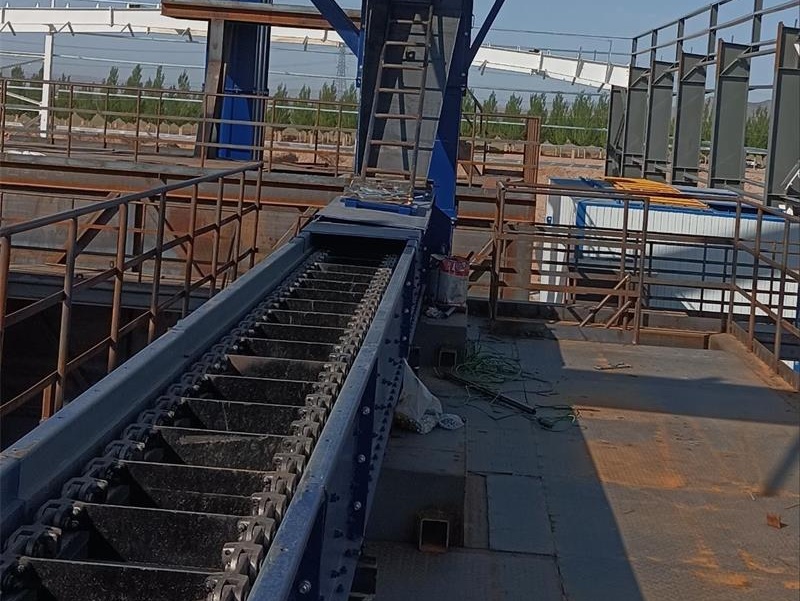

Project Case
