Description

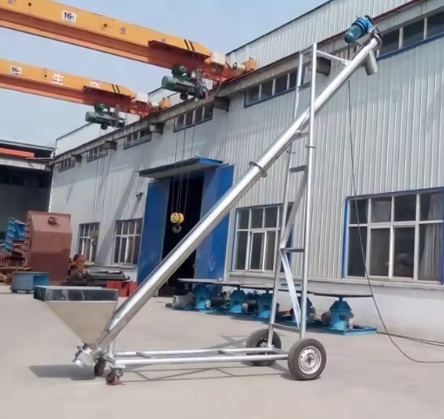

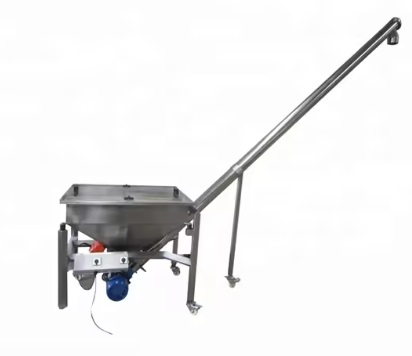

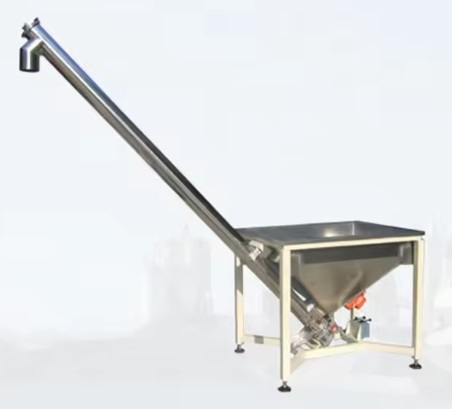

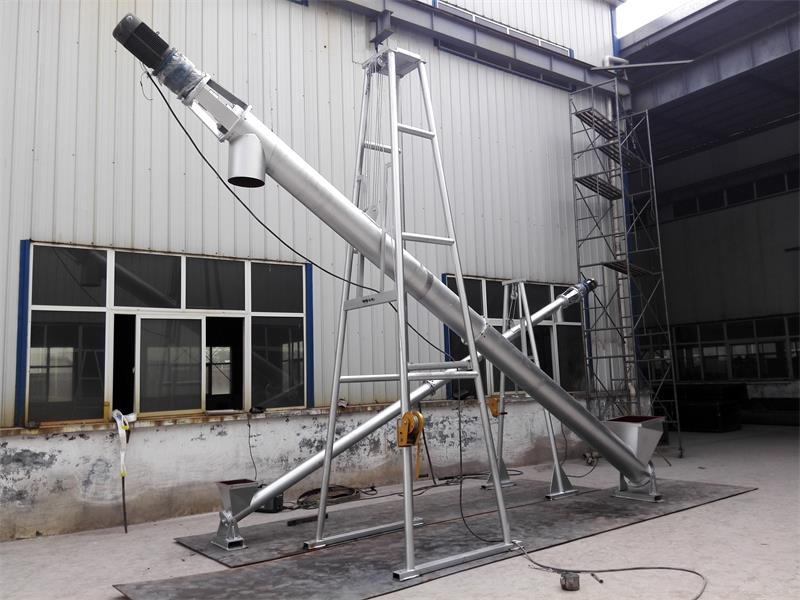

Mobile screw conveyor is composed of a frame mounted on casters, a support frame and a hopper, which can flexibly meet the installation requirements of most applications and mobile systems, so as to achieve flexibility in the factory, and can be moved freely according to the site situation, and can be pushed in and out of the warehouse by one people. It is widely used in feed, chemical, food processing, and grain processing, grain and grain storage, various additives, and bulk material transportation in construction engineering and other industries.
Advantages
Flexible mobility：Locking caster-mounted frame enables free in-plant movement + extra stability/safety.
Adjustable feed capacity：control box with frequency regulator to control the capacity.
Gentle material handling：Sealed spiral rotation avoids product degradation/mixed material separation.
Sealed system：Fully enclosed; suitable for harsh environments, reduces material contamination.
Durable construction：Stainless steel contact surfaces (hygienic/industrial standards); optional stainless steel frame.
Easy cleaning：Reversible/quick-removal auger + discharge valve for convenient maintenance.

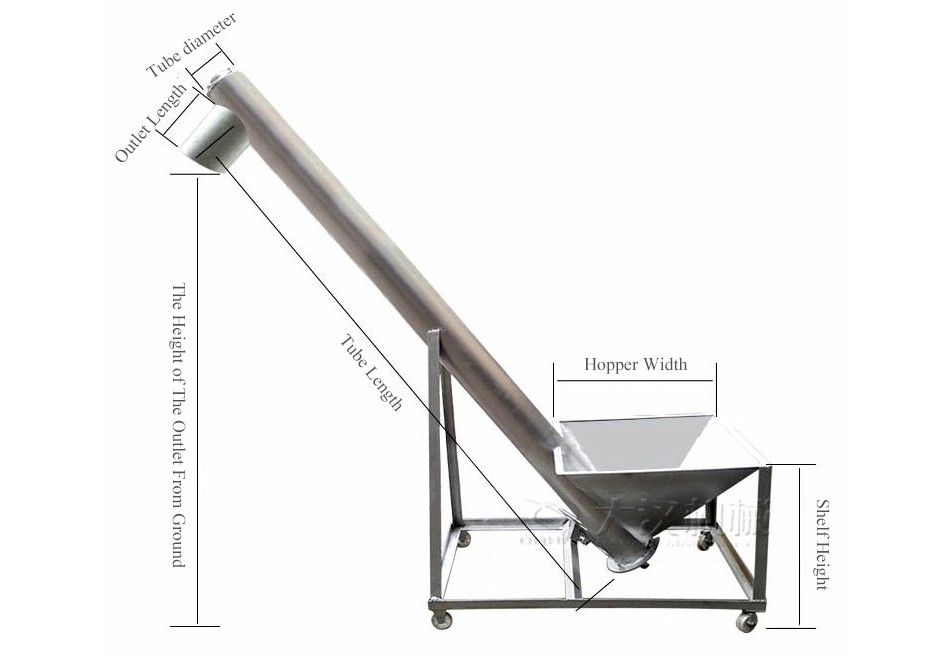

Structure
Main Parameters
| Model | Small | Large | |||||
| 200 | 250 | 315 | 400 | 500 | 630 | 800 | |
| Diameter(mm) | 200 | 250 | 315 | 400 | 500 | 630 | 800 |
| Pitch(mm) | 200 | 250 | 315 | 355 | 400 | 450 | 500 |
| Rotating speed (r/min) | 100 | 90 | 80 | 71 | 63 | 50 | 40 |
| Capacity(m³/h) | 12.4 | 21.8 | 38.8 | 62.5 | 97.7 | 138.5 | 198.5 |
| Rotating speed (r/min) | 80 | 71 | 63 | 56 | 50 | 40 | 32 |
| Capacity(m³/h) | 9.9 | 17.2 | 30.5 | 49.3 | 77.6 | 110.8 | 158.8 |
| Rotating speed (r/min) | 63 | 56 | 50 | 45 | 40 | 32 | 25 |
| Capacity(m³/h) | 7.8 | 13.6 | 24.2 | 38.6 | 62 | 88.6 | 124.1 |
| Rotating speed (r/min) | 50 | 45 | 40 | 36 | 32 | 25 | 20 |
| Capacity(m³/h) | 6.2 | 10.9 | 13.4 | 31.7 | 49.6 | 69.3 | 99.3 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
