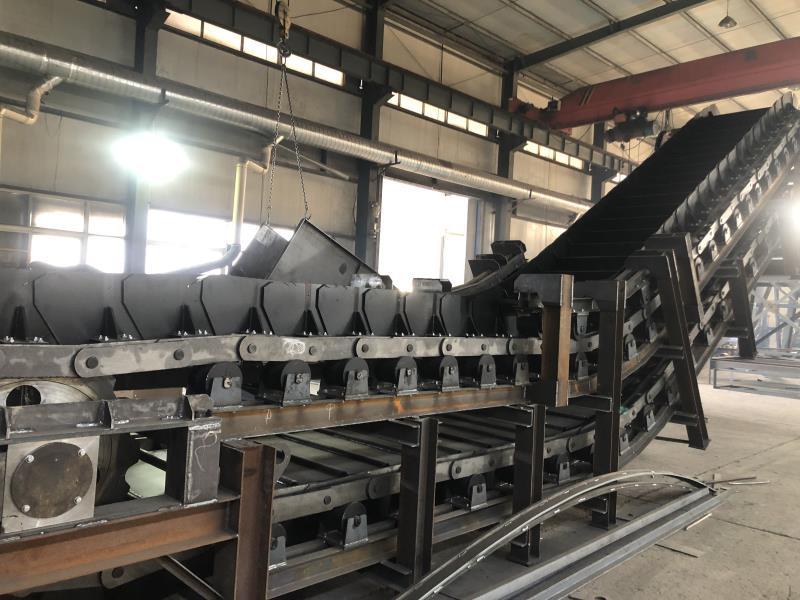

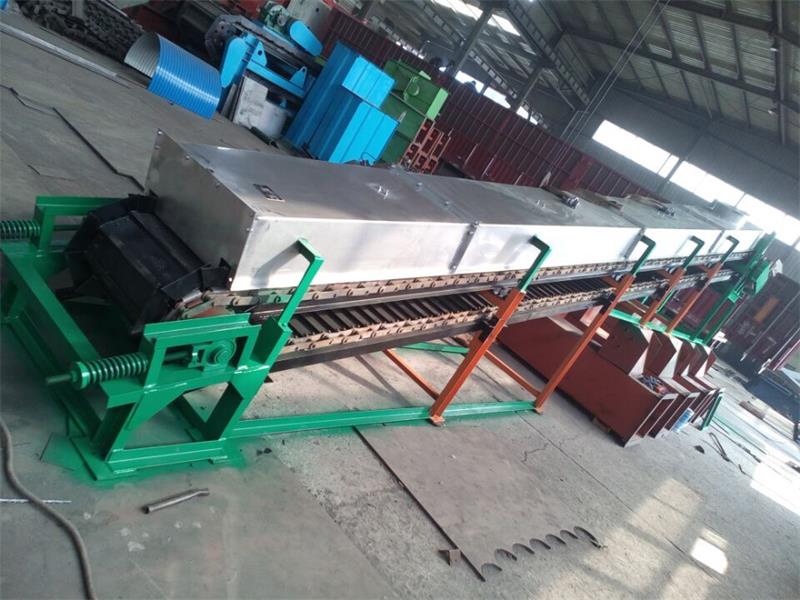

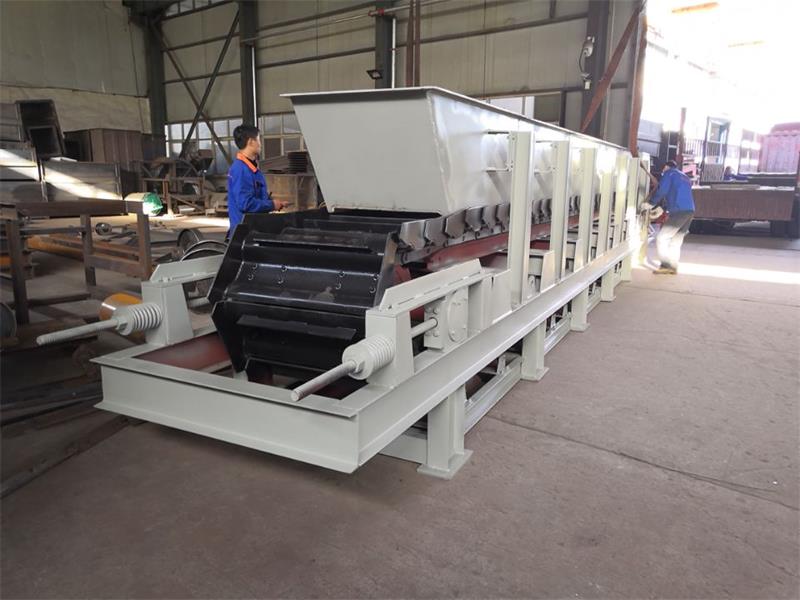

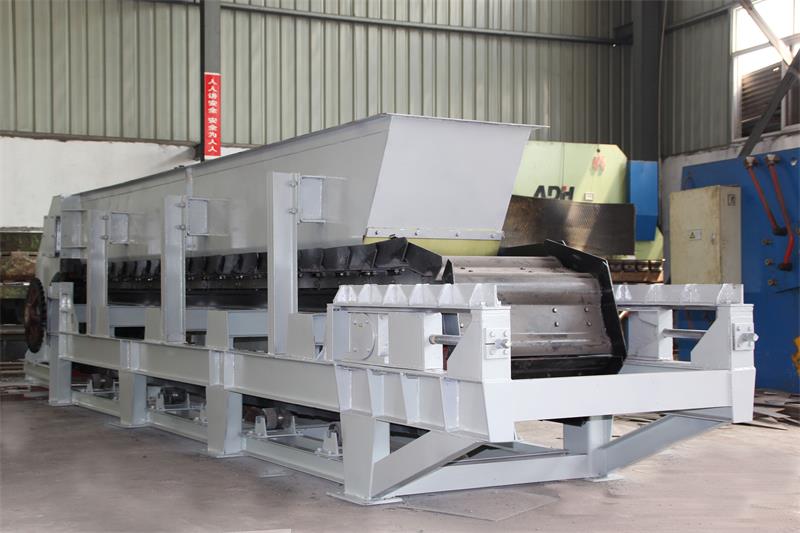

Description
Middle Apron Feeder is a large machine that carries large bulk of stone or other materials to Crusher or conveyors etc.. These machines is known as plate feeders . Apron feeder allow to be controlled the capacity and speed by frequency regulator .
It can be installed horizontally or aslant ,but the maximum slant angle couldn’t more than 20 degrees.
Advantages
The apron feeder is widely used for conveying metal ,limestone, gold ore and construction waste, gypsum etc.
It can bear big pressure under small silo or loader .
The speed can be adjusted by frequency conversion control cabinet.
Including the feed trough, to prevent the material leakage.
Thickness of plate is from 12mm to 20mm.
We can supply ABB & Siemens motor, Flender & S
Can be customized.

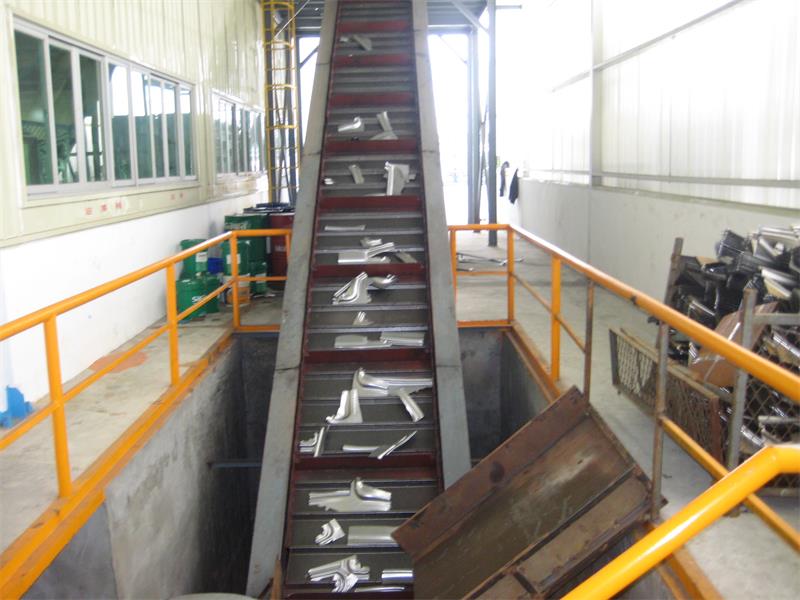

There are various layout forms, which can be horizontal and inclined

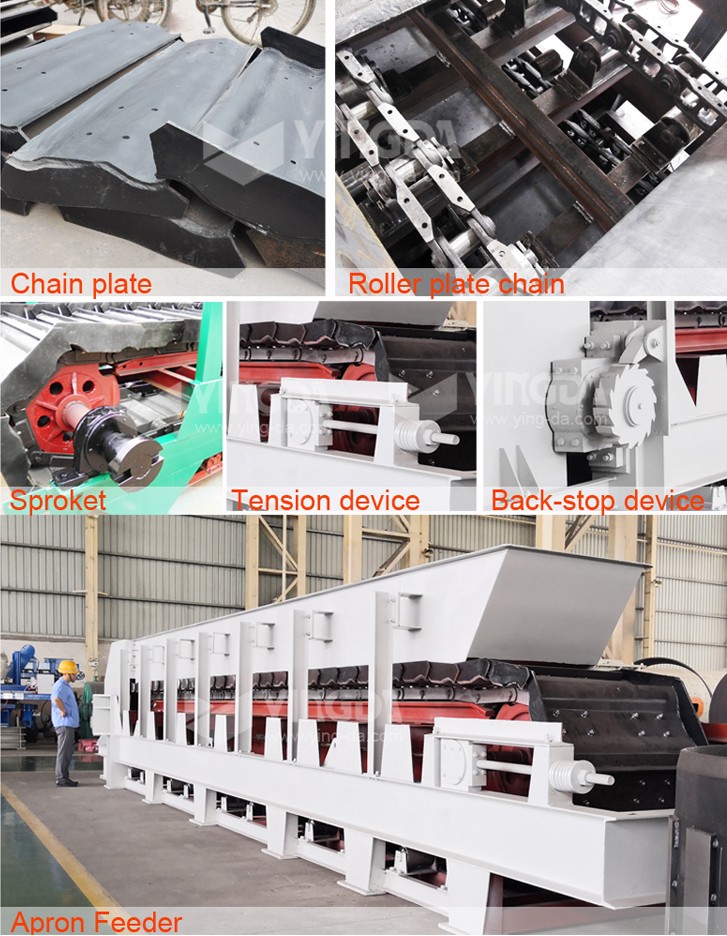

The traction chain adopts a long-pitch roller chain, and all parts of the chain are made of alloy steel materials, and have undergone scientific heat treatment, which has good wear resistance, high tensile strength and long service life

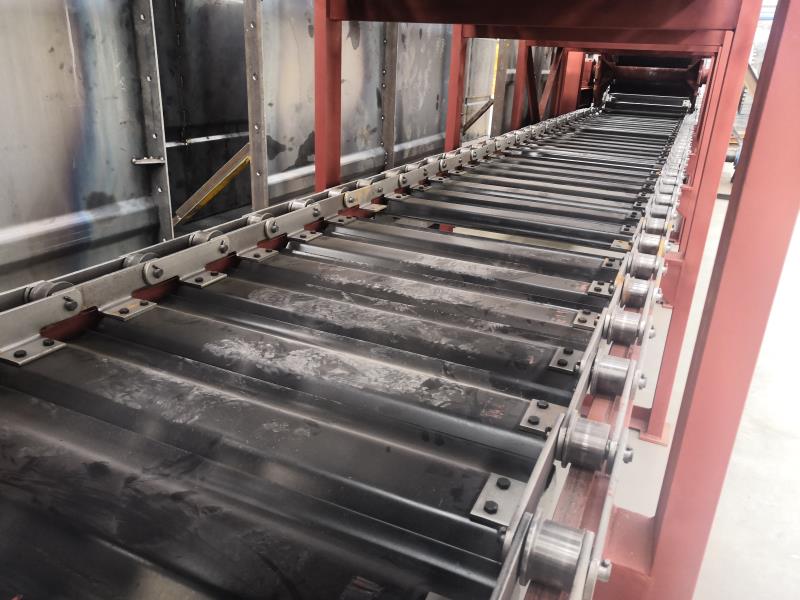

The stamping chain plate/pan is used, and the middle part is reinforced with transverse ribs, the chain plate/pan has good rigidity and large carrying capacity. In order to avoid material leakage, the plate/pan with arc design
The maximum conveying length of a single machine is 30m
The range of conveying inclination is 0-30 degrees
Working principle
The middle apron feeder operates on a chain-driven cyclic conveying mechanism, tailored for medium-load bulk material handling:
A motor drives the sprocket to pull the closed-loop chain and interconnected medium-duty aprons, enabling continuous movement along the frame.
Bulk materials (e.g., crushed stone, mineral ore,) are fed onto the aprons from a hopper/silo, then stably transported to subsequent processes (e.g., screening machine, conveyor).
After unloading, the empty aprons return along the lower track to the feeding end, completing the cyclic operation.
Main Parameters
| Model | Plate width | Head to tail shaft center distance | Speed | Feed size | Capacity | Power |
| (mm) | (mm) | (m/s) | (mm) | (t/h) | (kw) | |
| WBL100-6 | 1000 | 6000 | 0.01-0.15 | ≤500 | ≤300 | 18.5 |
| WBL120-6 | 1200 | 6000 | 0.01-0.15 | ≤600 | ≤400 | 22 |
| WBL125-6 | 1250 | 6000 | 0.01-0.15 | ≤600 | ≤450 | 22 |
| WBL140-8 | 1400 | 8000 | 0.01-0.15 | ≤700 | ≤500 | 30 |
| WBL150-10 | 1500 | 10000 | 0.01-0.15 | ≤1200 | ≤800 | 37 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

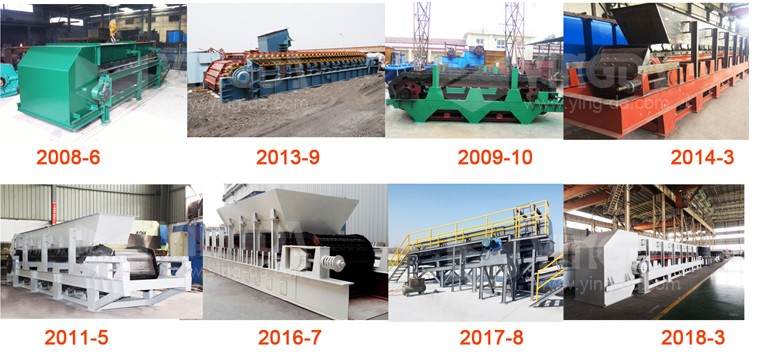

Project Case
