Description
FU drag chain conveyor (referred to as “chain conveyor” ) is a device for horizontally (or inclined 15 degree) conveying powder,and small granular materials.It has compact structure, reasonable design,reliable operation, and long service life.It is also energy-saving and efficient. The entire material is transported in the sealed box, so no dust flying.
Advantages
Large conveying capacity, up to 6 ～ 200m3 / h.
Low energy consumption for transportation. The internal frictional force of the material is used to push the material forward, which saves 40% -50% of electricity compared with the screw conveyor.
The sealing is good and safe, and the fully-sealed casing makes no dust flying.
Long service life. The specially ordered conveyor chain uses high-quality steel with heat treatment. The normal service life can reach more than 5 years.
Flexible process layout and multi-point feeding and discharging.
It is used for horizontally transporting powdery and small granular materials, and is widely used in construction materials, construction, chemical industry, thermal power, grain processing, mining, machinery, smelting, port and transportation industries.
Main Parameters
| Model | Width(mm) | Optimal Particle Size | Max Particle Size(mm) | Max Slant Angle | Capacity（m3） | Moisture Ratio(%) | ||||||
| Speed（m/min） | ||||||||||||
| 10 | 12 | 13.5 | 15 | 16 | 20 | 258 | ||||||
| FU150 | 150 | ＜4 | ＜8 | ≤15° | 6-9 | 25-36 | 9-13 | 12-18 | 15-23 | ≤5% | ||
| FU200 | 200 | ＜5 | ＜10 | 12-16 | 40-56 | 18-24 | 24-32 | 30-40 | ||||
| FU270 | 270 | ＜1 | ＜158 | 21-30 | 55-80 | 28-40 | 31-45 | 34-48 | 42-60 | 52-75 | ||
| FU350 | 350 | ＜9 | ＜18 | 80-110 | 54-75 | 72-100 | 90-125 | |||||
| FU410 | 410 | ＜11 | ＜21 | 70-100 | 75-130 | 705-150 | ||||||
| FU500 | 500 | ＜13 | ＜25 | 140-200 | 140-200 | 160-225 | ||||||
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

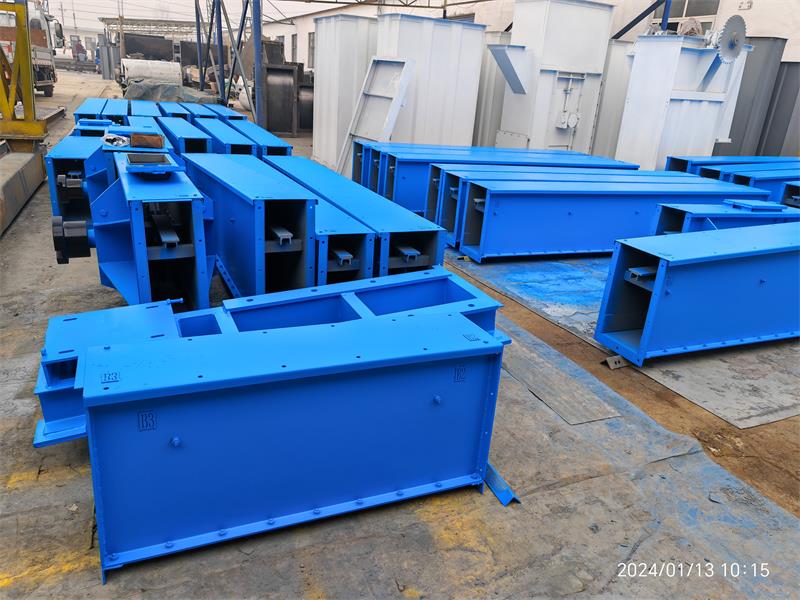

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

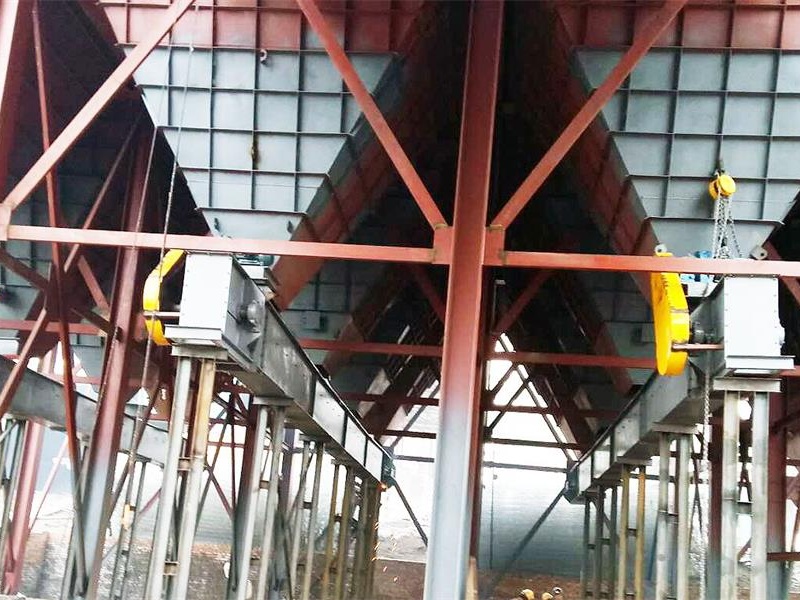

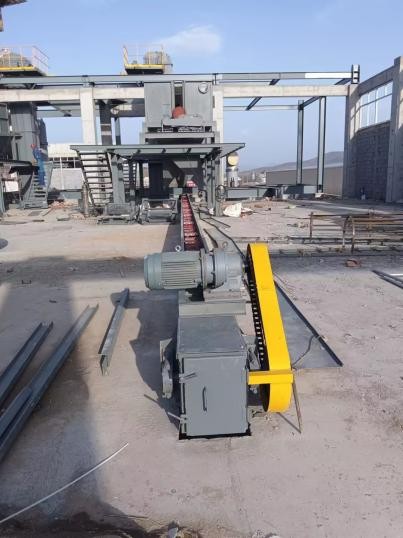

Project Case
