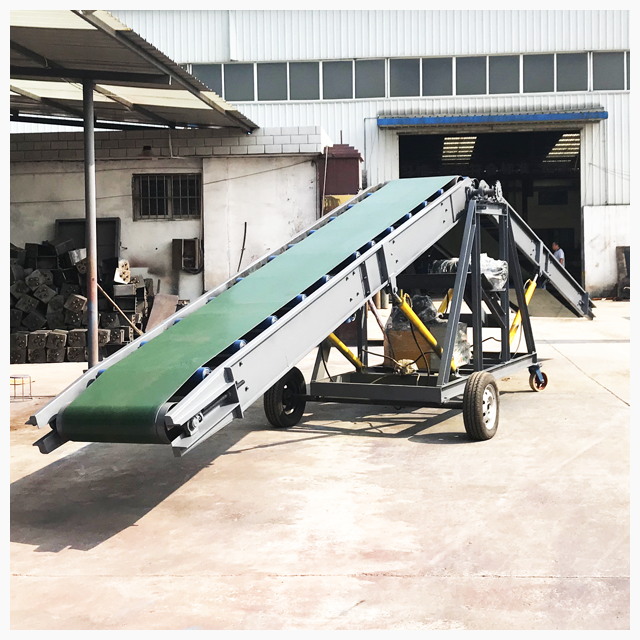

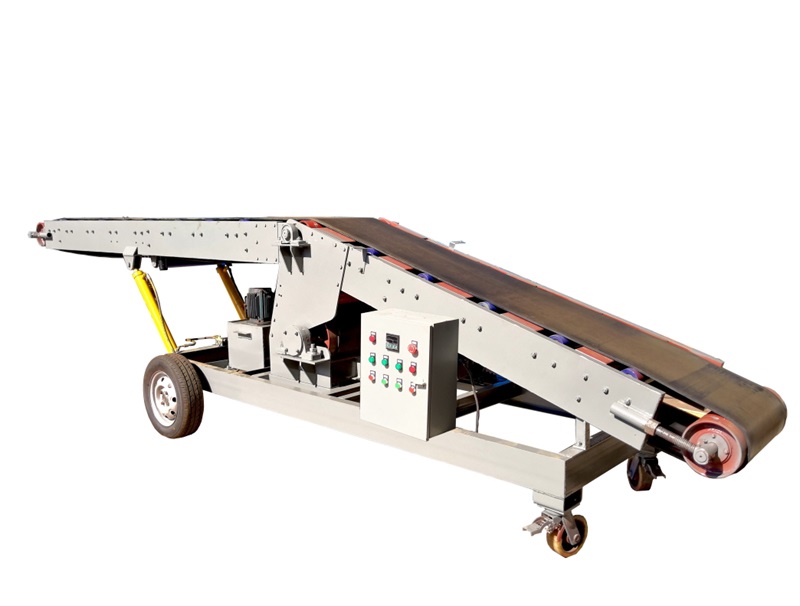

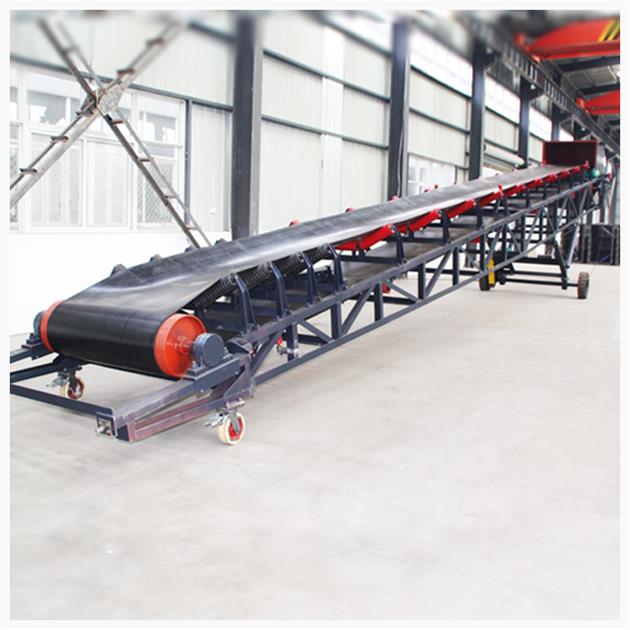

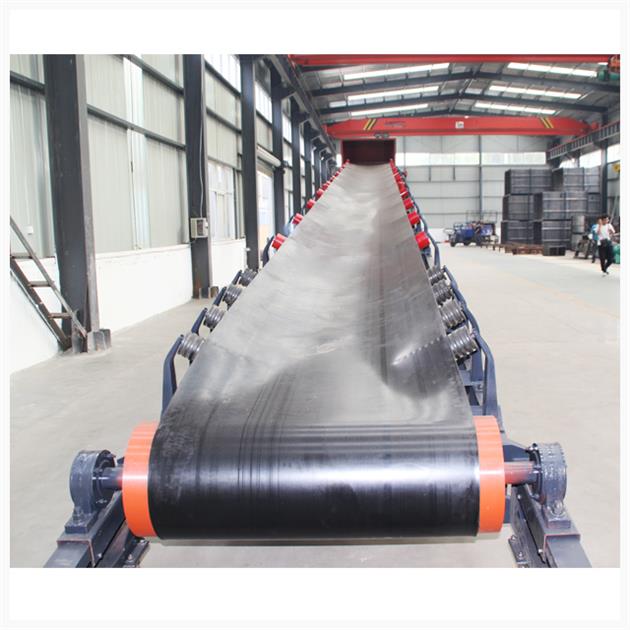

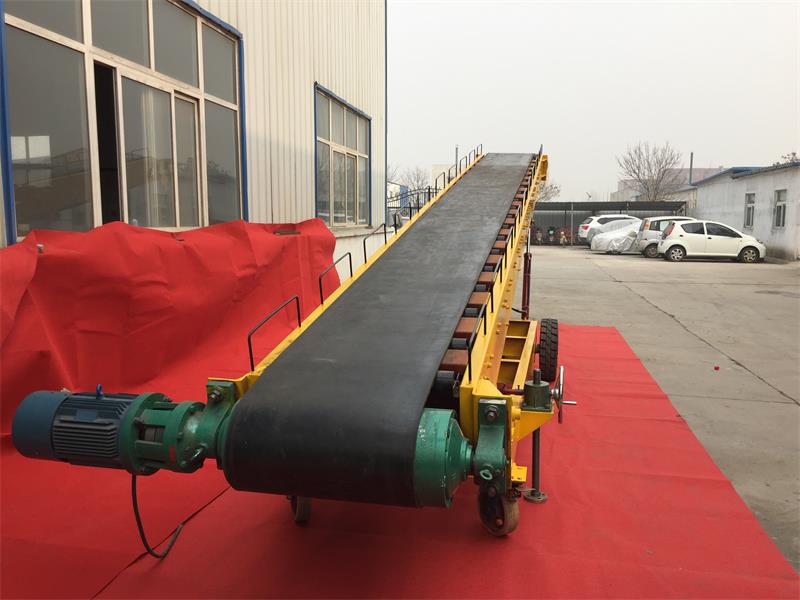

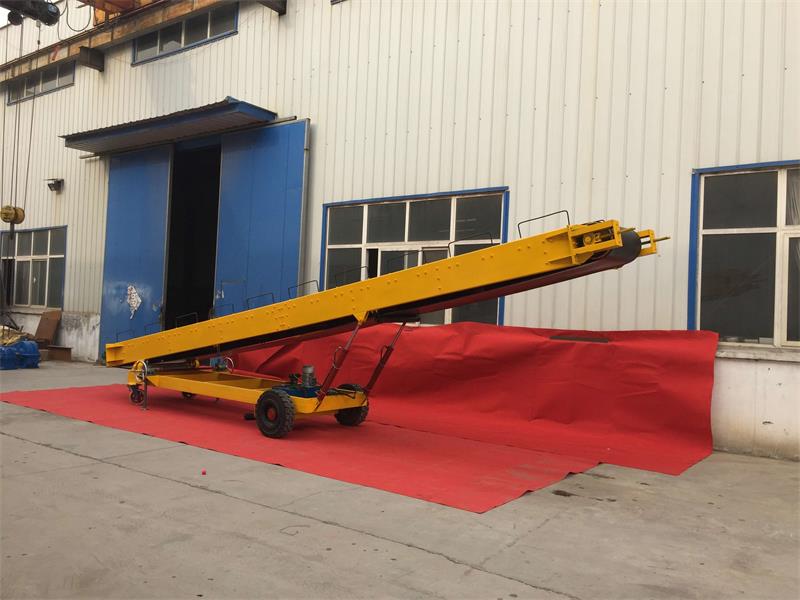

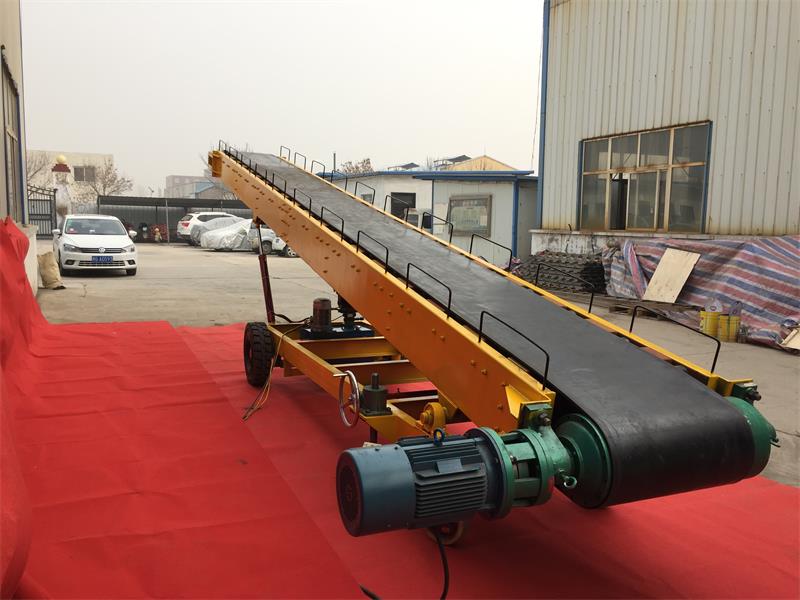

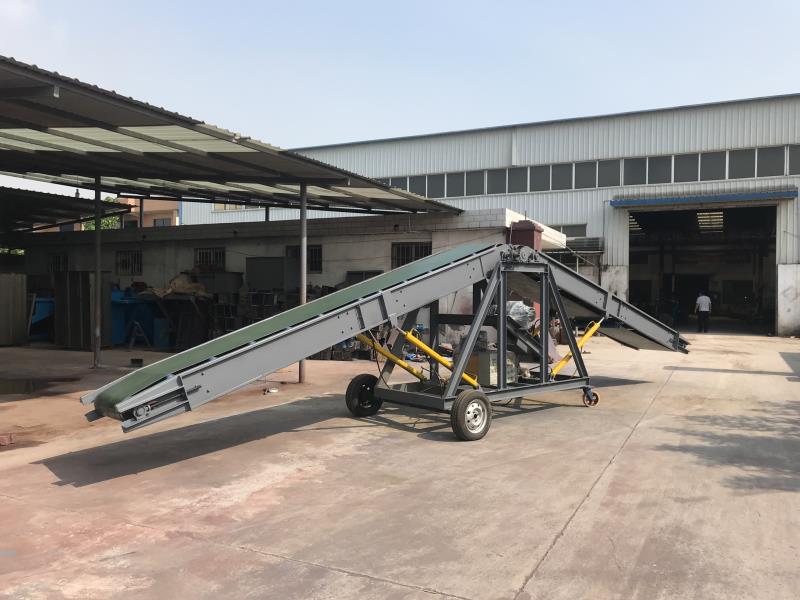

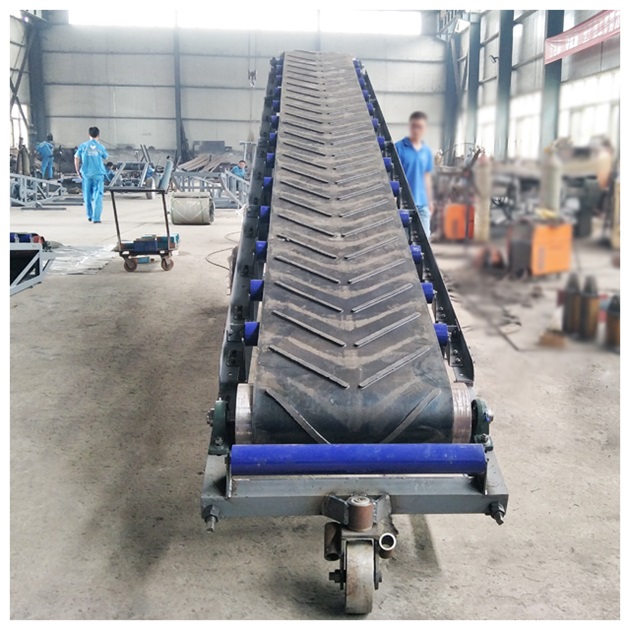

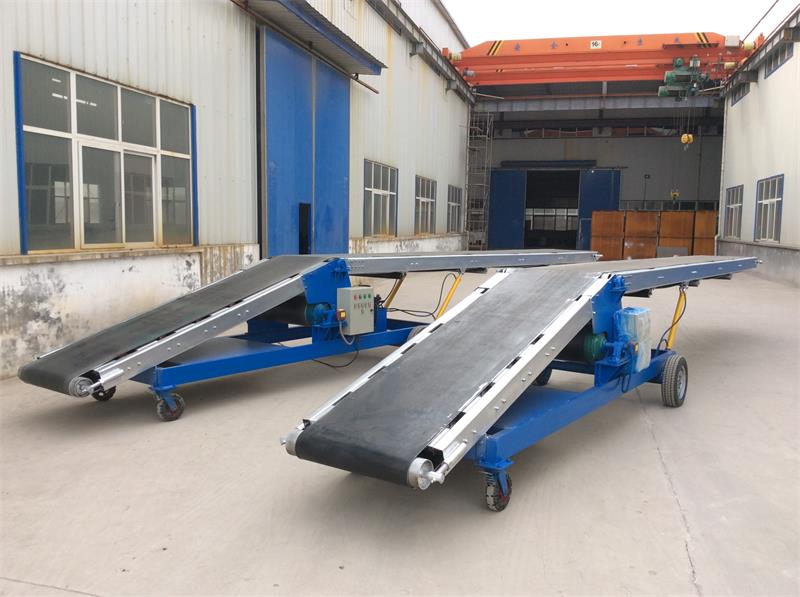

Description
Mobile belt conveyor is a continuous loading and unloading equipment with high work efficiency, wide application and good mobility. It is mainly used in the warehouse where the loading and unloading place is frequently changed, and is used for short-distance transportation and loading and unloading of bulk materials or packaged items weighing less than 100 kg. DY type mobile belt conveyor is divided into two types: adjust height type and fixed height. The operation of the conveyor belt is driven by electric rollers or geared motor.The move type is manual, but it can be also designed to be mechanically or electrically driven if necessary.
Advantages
Easy to move according to actual need.
Long service life, compact structure and small footprint, light weight.
It is a continuous transportation loading and unloading equipment with high efficiency, easy to use and good mobility, which is mainly used for occasions where the loading and unloading location changes frequently.
The structure is simple and the maintenance is convenient. The universal wheel is installed at the bottom to move flexibly.
Stable operation and low noise.
It is mainly used for short-distance transportation and loading and unloading of bulk materials or packaged items. Suitable for coal, metallurgy, mining, chemical industry, building materials, docks, warehouses, construction sites, and so on, to transport bulk materials or packaged items, especially suitable for use in conditions such as fertilizer plants and cement plants that require manual loading, saving a lot of personnel .
Working Principle
Mobile belt conveyor consists of main body of metal frame, pulleys, rollers, belt, motor, reducer and control pannel etc. Belt is looped around the head pulley, tail pulley and rollers. When head pulley is powered by electric motor, the belt slides across the rollers meanwhile moving the product on the top of the belt, and the machine is portable, reduce the labor intensity of worker and improve efficiency.
Main Parameters
| Model | Belt width(mm) | Length (m) | speed(m/s) | Capacity | Uplifted Height | Tail Wheel | ||
| Flat Roller | Trough Roller | |||||||
| unit/h | t/h | t/h | ||||||
| 4031 | 400 | 3 | 0.8Flat Roller1.6Trough Roller | 800 | 40 | 80 | ≤0.6m | Universal Wheel |
| 4351 | 5 | ≤1m | ||||||
| 4071 | 7 | ≤1.3m | ||||||
| 40101 | 10 | ≤1.5m | ||||||
| 5051 | 500 | 5 | 1400 | 70 | 145 | ≤1m | ||
| 5071 | 7 | ≤1.2m | ||||||
| 50101 | 10 | ≤1.5m | ||||||
| 50151 | 15 | ≤1.8m | ||||||
| 6551 | 650 | 5 | 2600 | 130 | 265 | ≤1m | ||
| 6571 | 7 | ≤1.2m | ||||||
| 65101 | 10 | ≤1.5m | ||||||
| 65151 | 15 | ≤1.8m | ||||||
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

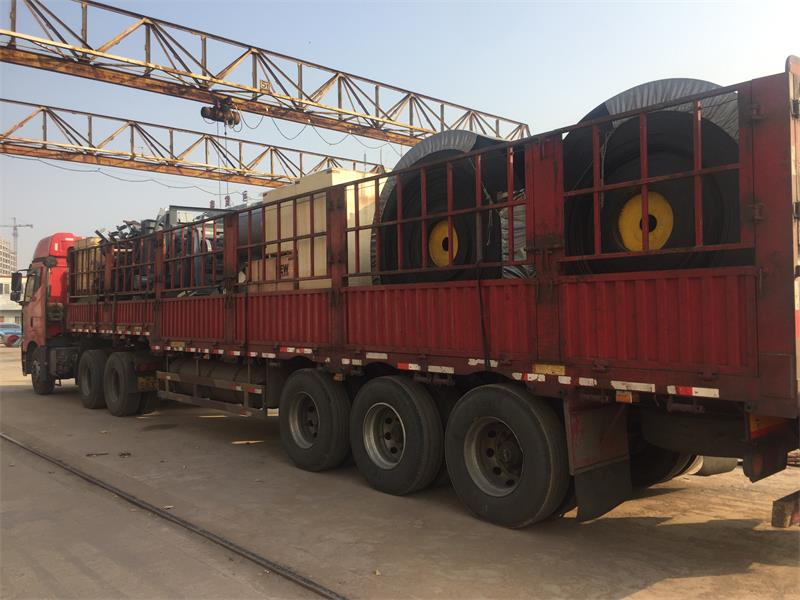

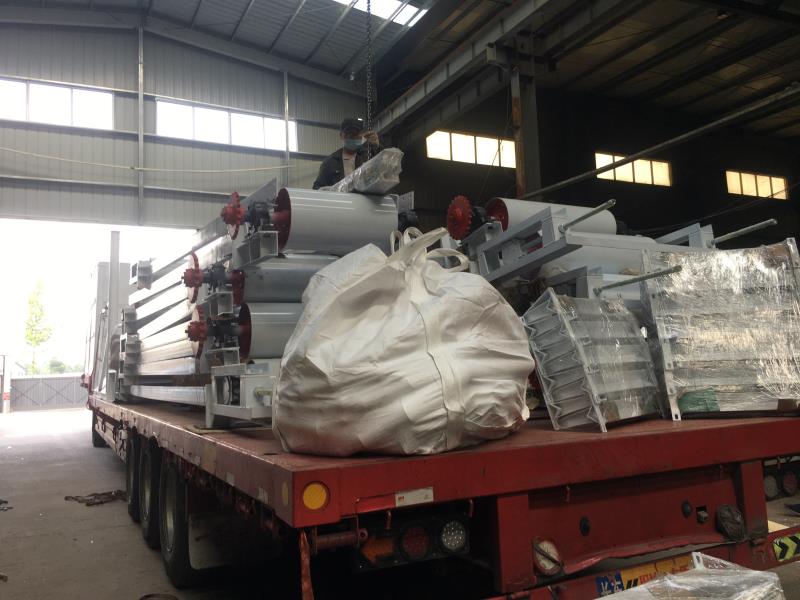

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.

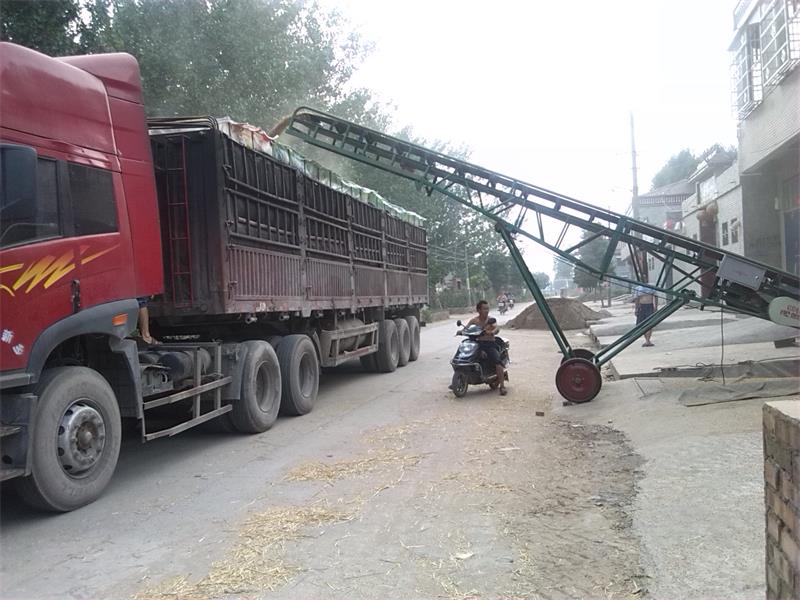

Project Case
