Description
The dewatering bucket elevator is one of the commonly used mechanical equipment in coal preparation plants and calcium magnesium phosphate fertilizer plants. It has the advantages of simple structure and reliable operation.
Advantages
Compact structure, large lifting height and easy maintenance.
Stable operation and good dewatering effect.
The bucket capacity per meter is basically increased by equal steps, which is beneficial to equipment selection.
It is used to lift washed coal, gangue and cooled calcium magnesium phosphate fertilizer, and is also suitable for conveying other materials in the form of lumps or granules after washing. Dewatering bucket elevator is a commonly used mechanical equipment in coal preparation plant.
Main Parameters
| Model | Hopper Width（mm） | Length（m） | Slant Angle(。) | Capacity(t/h) | Speed(m/s) | Power(kw) |
| T3240 | 400 | 20 | 55-70 | 15.3-51.6 | 0.16,0.27 | 4-11 |
| T3260 | 600 | 20 | 55-70 | 23-77.5 | 0.16,0.27 | 5.5-11 |
| T4060 | 600 | 23 | 55-70 | 28.7-96.8 | 0.16,0.27 | 5.5-15 |
| T4080 | 800 | 23 | 55-70 | 38.3-129.2 | 0.16,0.27 | 7.5-18.5 |
| T40100 | 1000 | 23 | 55-70 | 47.8-161.4 | 0.16,0.27 | 11-37 |
| T50100 | 1000 | 26 | 55-70 | 59.8-201.8 | 0.16,0.27 | 11-37 |
| T50120 | 1200 | 26 | 55-70 | 11.3-242.8 | 0.16,0.27 | 11-55 |
| T50140 | 1400 | 26 | 55-70 | 83.7-282.5 | 0.16,0.27 | 15-55 |
| L3240 | 400 | 20 | 60-70 | 15.9-56.9 | 0.16,0.27 | 4-11 |
| L4060 | 600 | 23 | 60-70 | 31.8-80.4 | 0.16,0.27 | 7.5-15 |
| L40100 | 1000 | 23 | 60-70 | 53.0-134 | 0.16,0.27 | 11-30 |
| L50120 | 1200 | 26 | 60-70 | 79.2-200.4 | 0.16,0.27 | 11-55 |
| L50140 | 1400 | 26 | 60-70 | 92.4-233.7 | 0.16,0.27 | 11-55 |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.

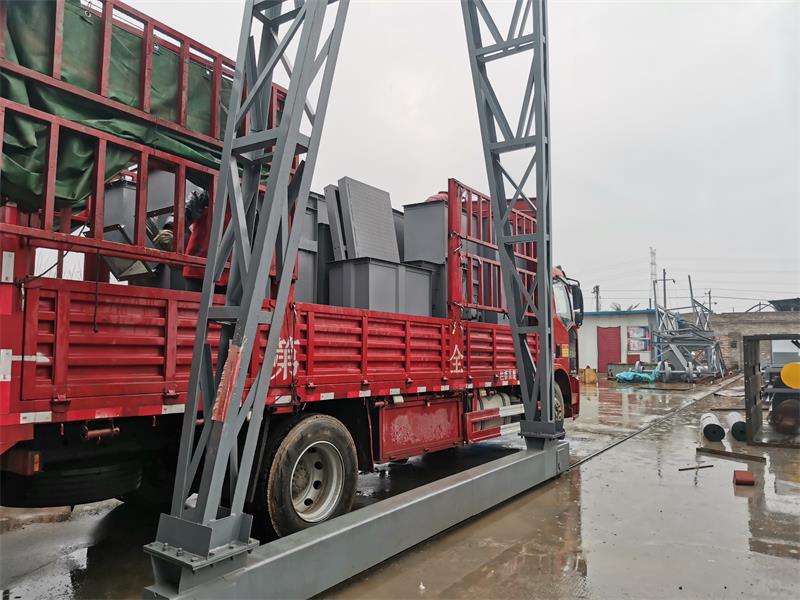

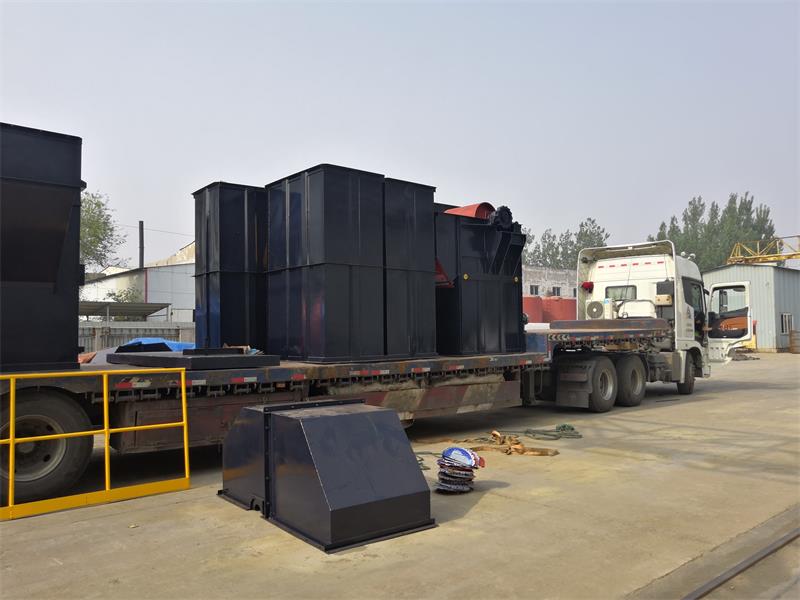

Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intact to our customers.
