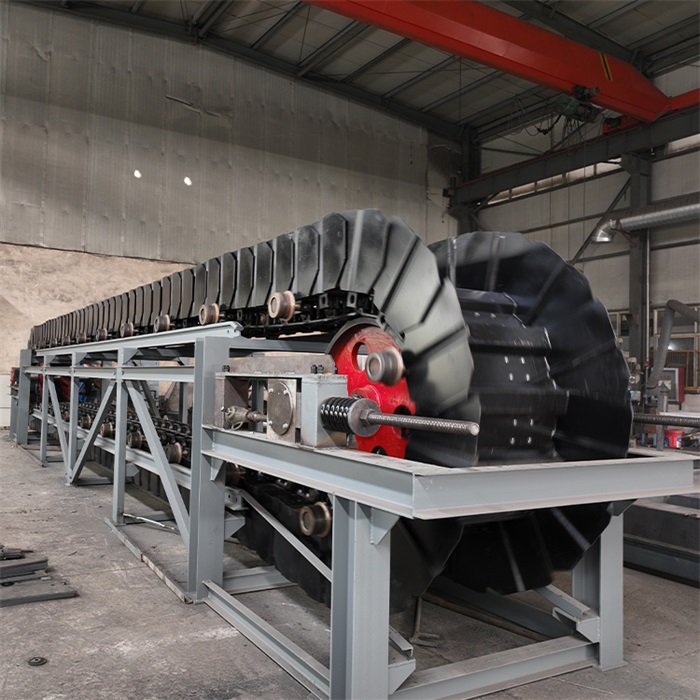

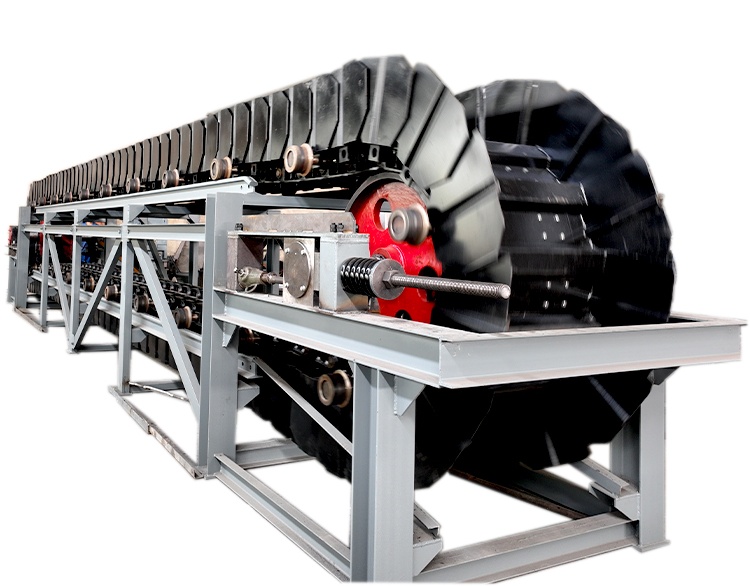

Description
Clinker pan conveyor is a new type of conveyor designed and improved by our company based on international advanced technology. It is suitable for horizontal or inclined transportation of various powder and block bulk materials.Such as cement, clinker, iron slag, ore sand, limestone, coke, etc. They can be widely applied in the building materials, metallurgy, coal, chemical, power.
Application Range
It is mainly suitable for the transportation of materials with high temperature, large lumpness, high density, and irregular shapes that are difficult to transport normally in the metallurgy, electric power, and cement industries. Such as: sintered ore, cement clinker, etc.
Features
It can transport high temperature materials, up to 800℃（using heat-resistant steel.）
The conveyor can be titled 60 degrees, flexible layout.
Its temperature resistance and reliability are better than bucket conveyors,belt conveyor and vibrating conveyors, and it can save electricity by 20-50％ compared with bucket conveyors,the pan conveyor are widely used.

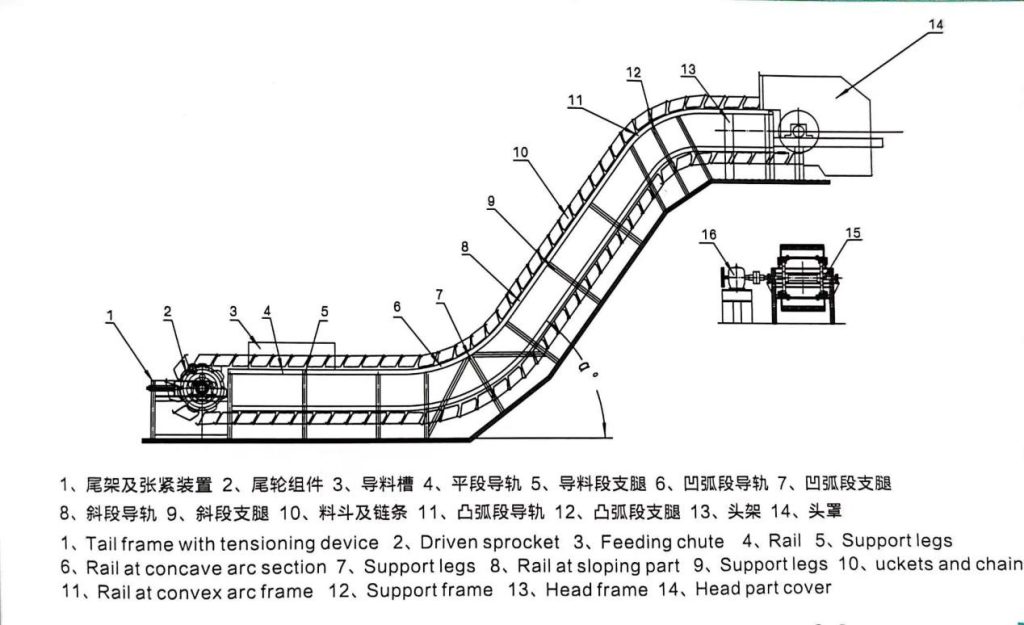

Structure
Main Parameters
| Model | Conveyor trough width (mm) | Side height(m) | Trough plate thick(mm) | Theoretical capacity(m³/h) | |||||
| Conveyor speed(m/s) | Conveyor inclination | ||||||||
| 25° | 30° | 35° | 40° | 45° | |||||
| SCD630 | 630 | 295 | 5 | 0.28 | 165 | 151 | 142 | 128 | 116 |
| 0.31 | 183 | 167 | 157 | 141 | 130 | ||||
| 0.35 | 206 | 189 | 177 | 160 | 149 | ||||
| SCD800 | 800 | 33545°为355 | 5 | 0.28 | 241 | 228 | 213 | 200 | 189 |
| 0.31 | 267 | 253 | 236 | 220 | 205 | ||||
| 0.35 | 302 | 286 | 267 | 250 | 237 | ||||
| SCD1000 | 1000 | 350 | 5 | 0.28 | 310 | 292 | 270 | 255 | 242 |
| 0.31 | 343 | 323 | 301 | 281 | 269 | ||||
| 0.35 | 385 | 365 | 336 | 316 | 303 | ||||
