Description
Ash conveyor is a mechanized slag discharging device for 1-6t chain grate boilers and reciprocating grate boilers.
After the boiler adopts mechanized slagging, it can reduce the labor intensity of the workers, clean up the slag-dust pollution, and improve the sanitary condition of the boiler room.
Advantages
It can transport high temperature materials, up to 200 degrees.
The ash conveyor can be tilted 60 degrees, flexible layout.
The conveyor can be installed in water, to reduce the temperature of ash.

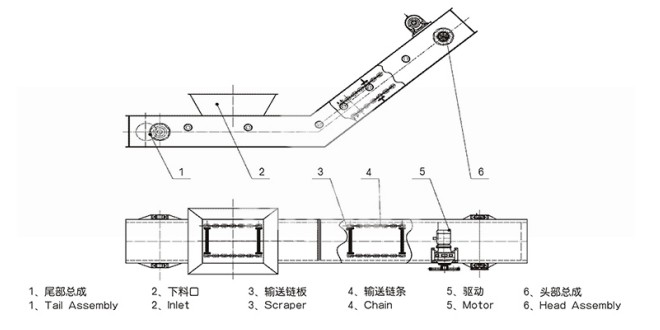

Structure
Main Parameters
| Number | Item | Parameter |
| 1 | Capacity | 2t/h |
| 2 | Speed | 3.9m/min |
| 3 | Power | 2.2KW |
| 4 | Rated Torque | 750N.m |
| 5 | Scraper Length | 330mm |
| 6 | Operation Noise | ＜80dB(A) |
Why choose us?
Skip the middlemen, enjoy uncompromised service, and save time as well as costs
A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
a.Provide installation plan guidance. b.2 hours for after-sales response, 24 hours for solution.
